Quick start manual - F5200

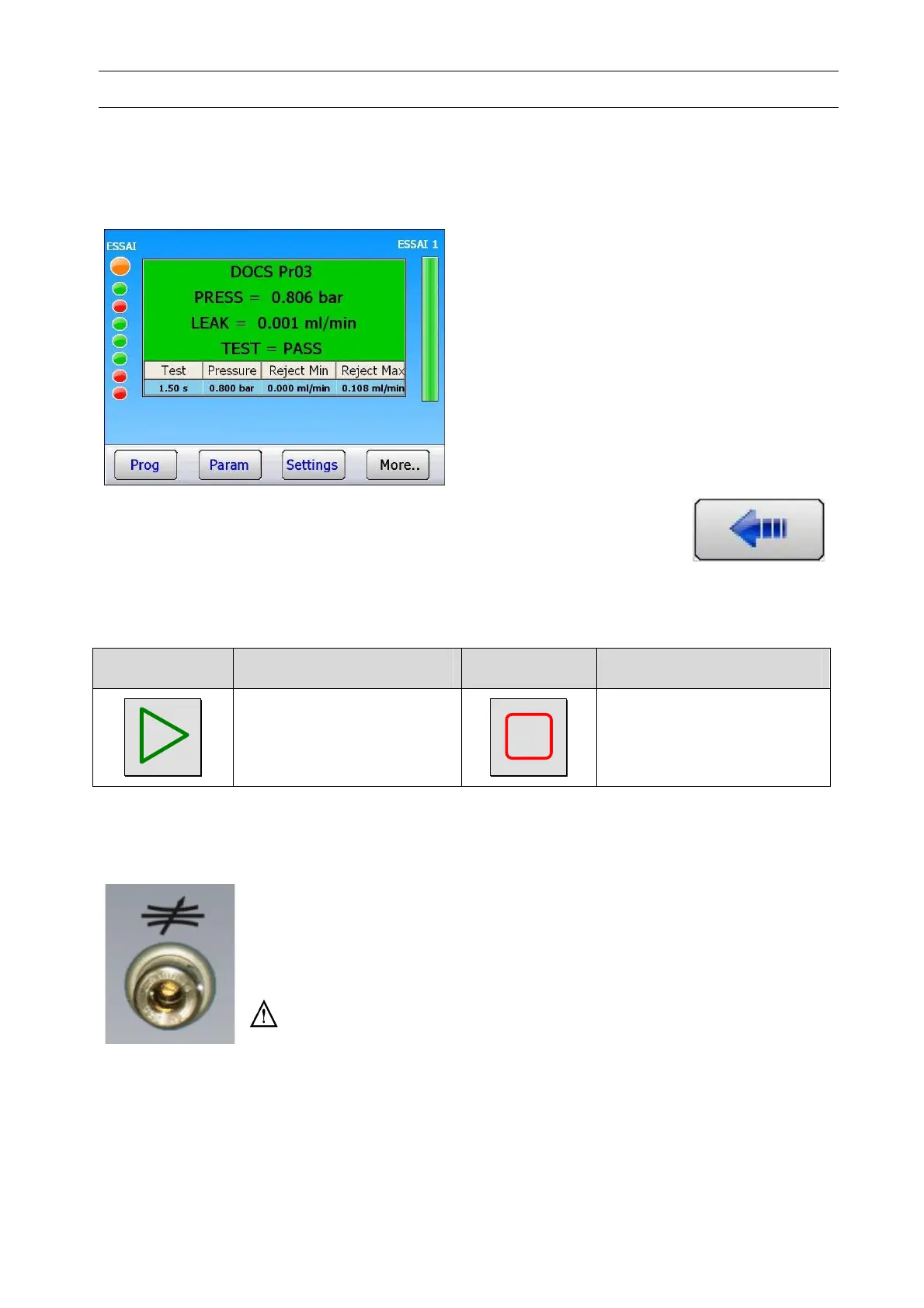

MR-F5200B-U Quick start manual ATEQ F5200 Page 8/17
USER INTERFACES
See the manuals CDROM for further information.
1. LCD DISPLAY AND NAVIGATION
Used to display measurements and
adjustable parameters.
This screen is a touch screen, to access to
the different menus, make a slight pressure
on the screen with your finger.
Do not use objects, failing to destroy
irreparably.
Different screens are available to display the
results. To scroll the windows, drag with
your finger from the left to the right or vice
versa.
Note: to return directly to the main menu, press and hold the Arrow
key.
2. CYCLE KEYS
KEYS FUNCTION KEYS FUNCTION
START key
Start a measurement
cycle
RESET Key
Current measurement
cycle stop
3. QUICK CONNECTORS
One quick connector may be mounted on the front panel of the
instrument.
This connector is to check the the calibration. It's used to check the
test circuit and enables, by use of a calibrated leak, calculation of the
equivalent pressure drop.
As this connector is part of the measurement circuit, all its
connections must be air tight.
