22 1800296 C
7. Metering Valve – Controls the aerosol concentration level. Turning
the valve counter-clockwise increases concentration and clockwise
decreases concentration.
8. Inert Gas Inlet – ¼ inch (6.3 mm) OD tube fitting for connecting the
user provided tubing from the inert gas regulator to the generator.
Rear Panel Features

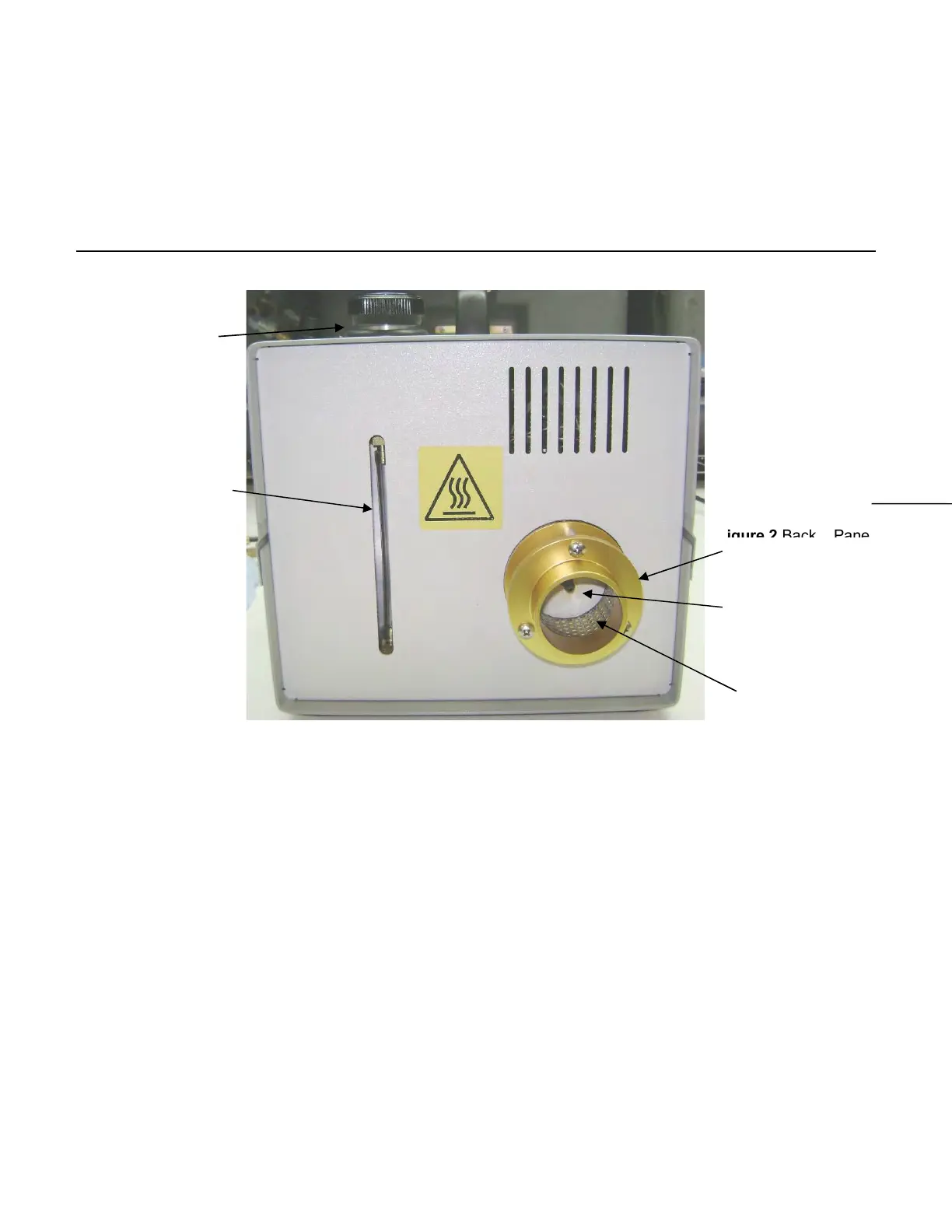

Figure 2 Back Panel
Features
9. Output Collar Houses the output nozzle and provides an
attachment point for a user supplied 2-inch (50.8 mm) ID hose.
10. Quenching Holes Allow ambient air flow to enter and quench the
vapor stream.
11. Output Nozzle – Metal orifice outlet for the aerosol stream.
12. Fill Port – Used for filling the unit with liquid aerosol reagent.
13. Liquid Level Indicator Provides the liquid aerosol reagent level
in the reservoir.
14. Drain Used for draining the unit of liquid aerosol reagent after
testing. The drain port has a standard 1/8 NTP port and plug.
12. Fill Port
13. Liquid Level
Indicator
9. Output Collar
11. Output Nozzle
14. Drain
(underneath)
