Maintaining and Servicing the
Generator
Replacing the Main Power Fuses

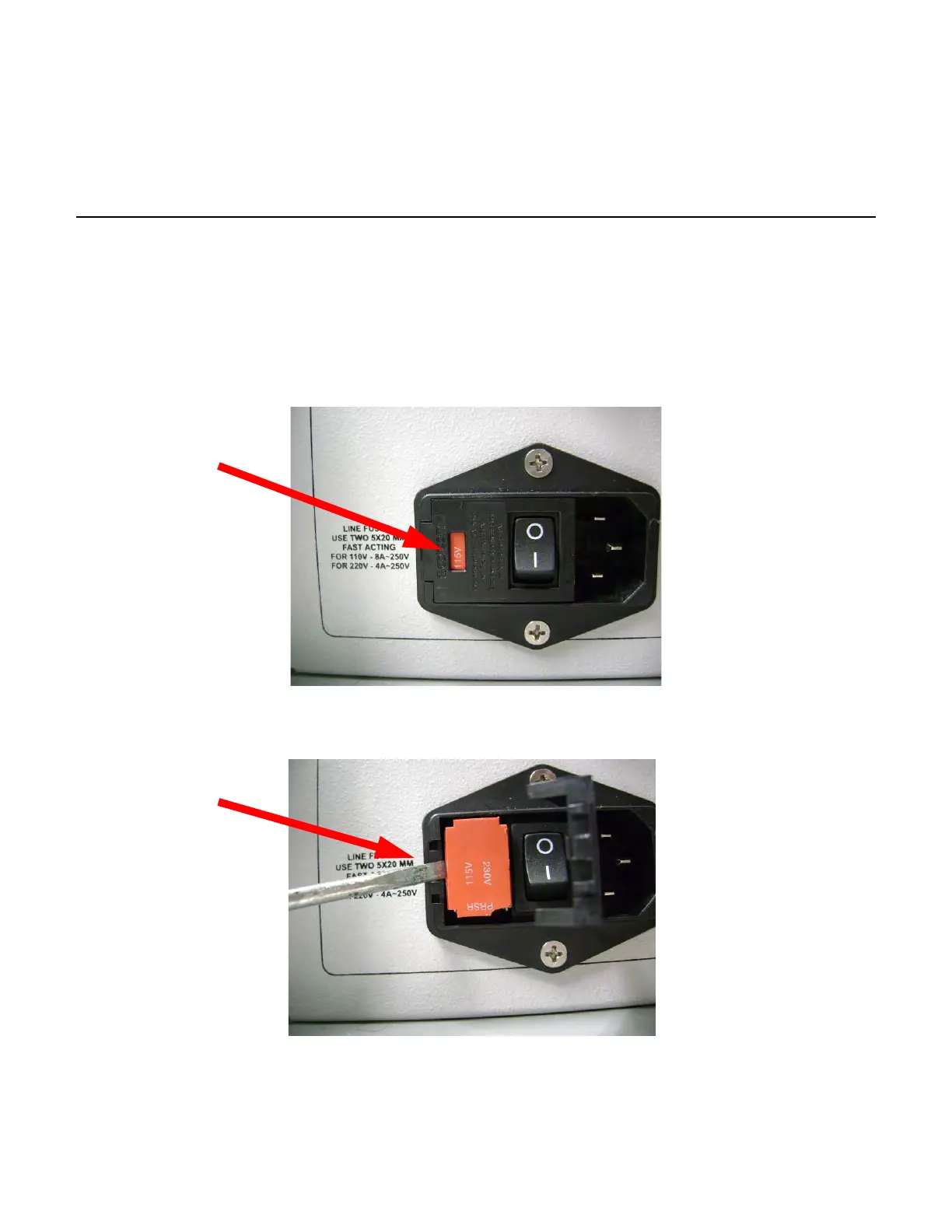

1. Disconnect the power cord from the generator and from
electrical source. Note the generator voltage rating through
the fuse holder window before starting (shown below). It will
either specify 115 VAC or 230 VAC. If the generator voltage
rating is 115 VAC use the 115V orientation. If the generator
voltage rating is 230 VAC use the 230V orientation.
2. Using a small flat blade screwdriver, open the fuse cover and
remove the fuse holder from the Main Power Input.
3. Remove old fuses and install two new fuses with ATI part
number according to Table 2.
