• Models extensa + 13 & 16
Access to the connection terminals:
- Remove the front panel. Remove the screws and the
front panel.
- Make the connections in accordance with the diagram
gure 40, page 42.
- Use cable clamps to prevent the conductors from
being disconnected accidentally.
- Use the cover plate to hold the cables against the
insulating plate.
Installation and operation manual "1734 - EN" - 39 -
Heat pump air/water split 1 service alféa extensa +

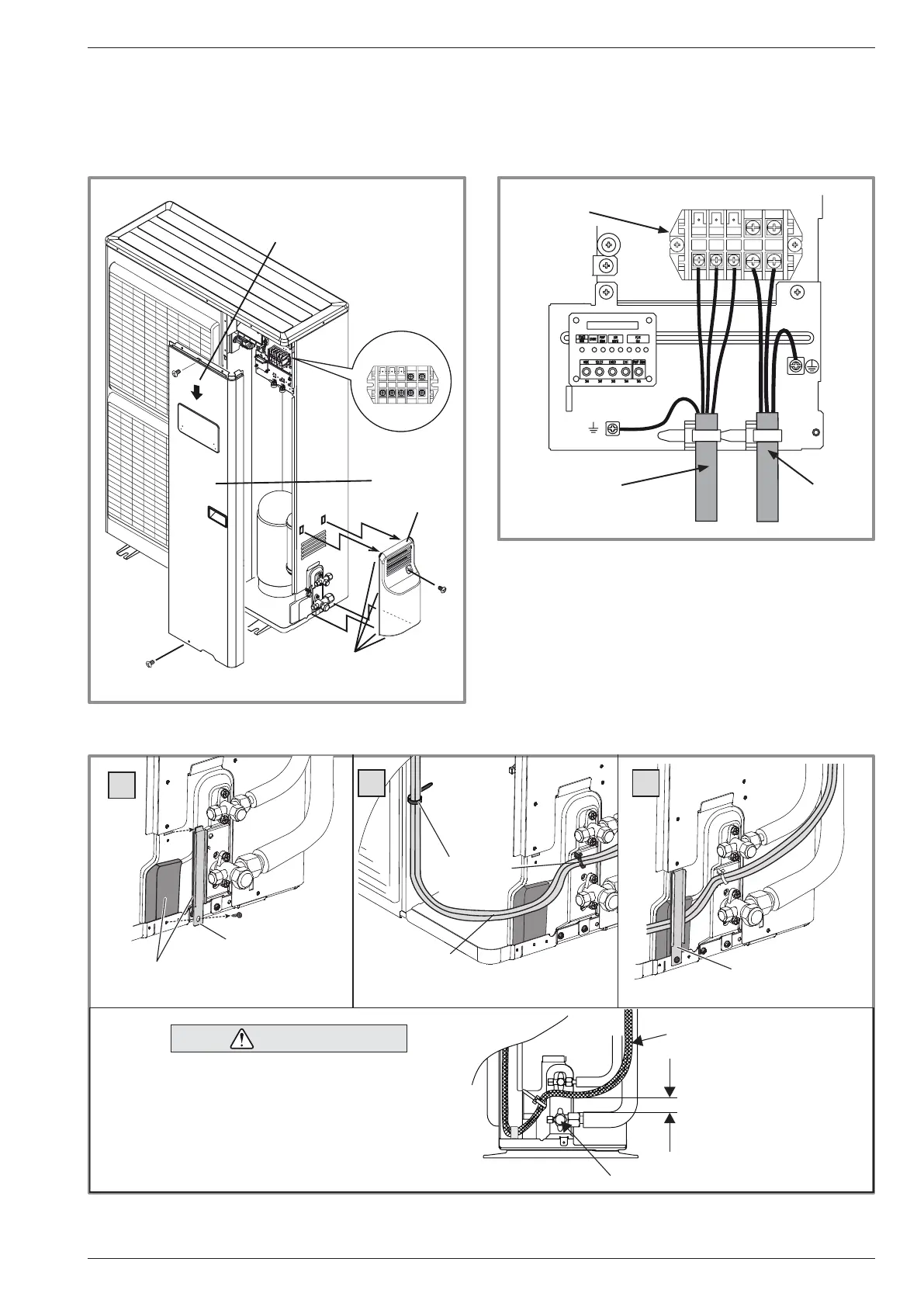

gure 36 - Access to outdoor unit’s terminal block
(models extensa + 13 & 16)
gure 37 - Connections to outdoor unit’s terminal block
(models extensa + 13 & 16)
gure 38 - Finalisation of connection to outdoor unit (models extensa + 13 & 16)
Remove the screws
and push downwards
Service panel
Valve cover
Hook (4places)
Terminal
block
Terminal block
Interconnection between
the outdoor unit and
the hydraulic unit
General
electrical
supply
Cover plate
Insulation (seal)
Power supply
cable and
connection cable
Cable clip
Cover plate
CAUTION
Release
Cables
Gas valve
Secure cables so that they are not in
contact with pipes and valves.
1
2 3
