1.4 Elektronikon I regulator
Service warning
If the service timer exceeds a programmed value, this will be
indicated to warn the operator to carry out some service actions.
1.4.1.3 Automatic restart after voltage failure
For compressors leaving the factory, this function is made
inactive. If desired, the function can be activated. Consult
Atlas Copco.
Warning If activated and provided the module was in the
automatic operation mode, the compressor will
automatically restart if the supply voltage to the
module is restored within a programmed time
period.
1.4.2 Control panel (Fig. 1.13)
Ref. Designation Function
1 Stop button Push button to stop the
compressor. LED (10) goes out.
The compressor will stop after
running in unloaded condition for
about 30 seconds.
2 Start button Push button to start the
compressor. LED (10) lights up
indicating that the regulator is
operative (in automatic operation).
1 Stop button
2 Start button
3 Display
4 Reset key
5 Enter key
6 Voltage on LED
7 Pictograph, voltage on
8 General alarm LED
9 Pictograph, alarm
10 Automatic operation
LED
11 Pictograph, automatic
operation
12 Downwards scroll key
13 Upwards scroll key
S3 Emergency stop button

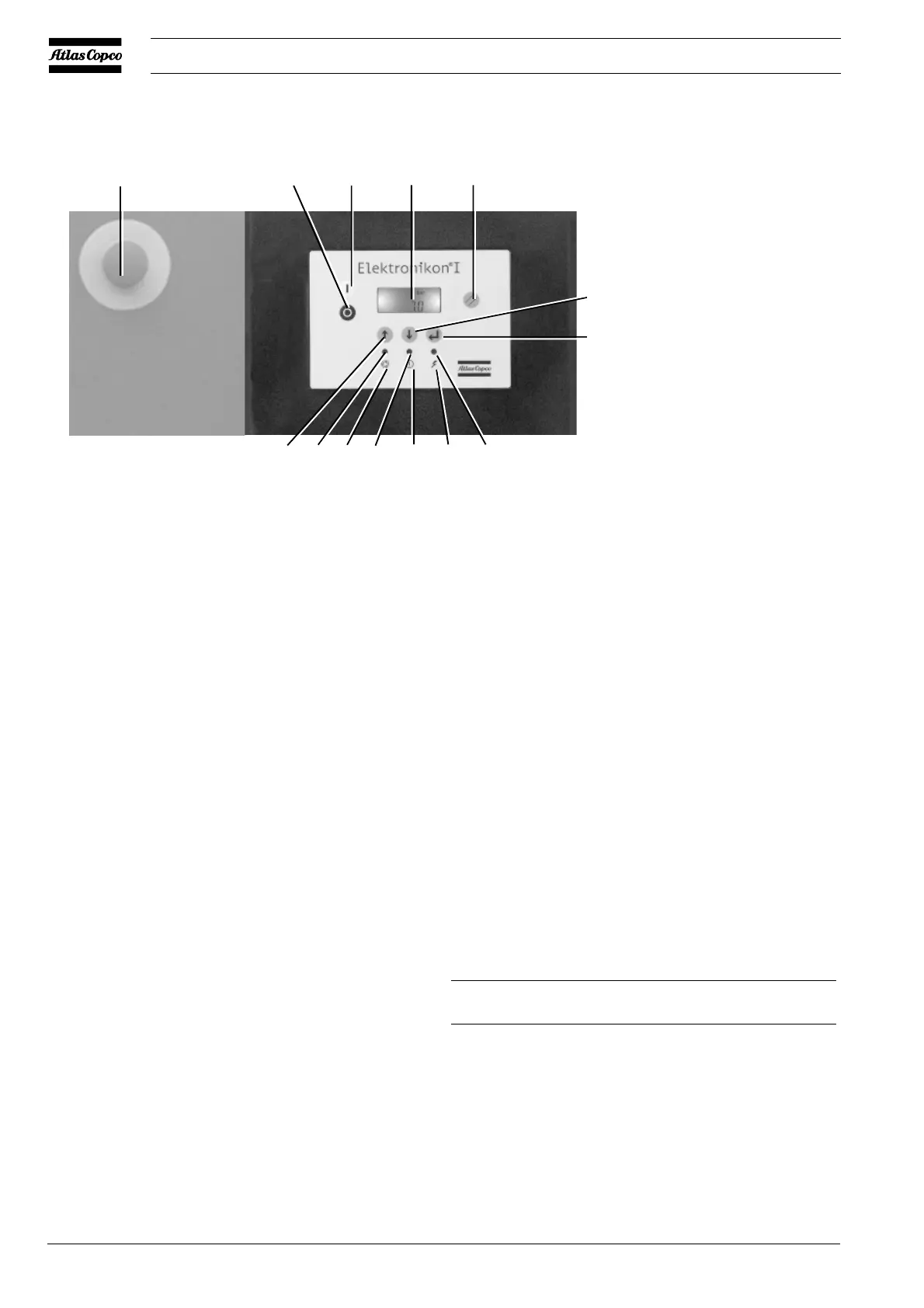

Fig. 1.13 Control panel,
Elektronikon I
GA Pack and Pack FF are provided with the Elektronikon I
regulator (Fig. 1.13).
1.4.1 Main functions
1.4.1.1 Automatic control of the compressor
The regulator maintains the net pressure between programmable
limits by automatically loading and unloading the compressor.
A number of programmable settings, e.g. the unloading and
loading pressures, the minimum stop time and the maximum
number of motor starts are taken into account.
The regulator stops the compressor whenever possible to reduce
the power consumption and restarts it automatically when the
net pressure decreases.
1.4.1.2 Protecting the compressor
Shut-down
If the compressor element outlet temperature exceeds the
programmed shut-down level, the compressor will be stopped.
This will be indicated on display (3). The compressor will
also be stopped in case of overload of the drive motor (M1)
and the fan motor (M2).
Shut-down warning
If the compressor element outlet temperature or dewpoint
temperature (Full-Feature) exceeds a programmed value below
the shut-down level, this will also be indicated to warn the
operator before the shut-down level is reached.
10
11
8
9
7
6
3
21
4
5
12
13
52226F
S3
