2920 1462 00
15
Instruction book
Ref. Designation Function
3 Display Indicates the compressor operating
condition, actually measured
values and programmed
parameters.
4 Reset key Key to reset the service timer, a
shut-down condition, etc.
5 Enter key Key to select or validate a
parameter, to open a sub-display
or to return to a previous display.
6 Voltage on LED Indicates that the voltage is
switched on.
7 Pictograph Voltage on
8 General alarm LED Is alight if a warning condition
exists.
8 General alarm LED Blinks in case of a shut-down or
emergency stop condition.
9 Pictograph Alarm
10 Automatic Indicates that the regulator is
operation LED automatically controlling the
compressor: the compressor is
loaded, unloaded, stopped and
restarted depending on the air
consumption and the limitations
programmed in the regulator.
11 Pictograph Automatic operation
12 Downwards Key to scroll downwards through
scroll key the screens or to decrease a setting.
13 Upwards scroll key Key to scroll upwards through the
screens or to increase a setting.
S3 Emergency Push button to stop the compressor
stop button immediately in case of emergency.
After remedying the trouble,
unlock the button by pulling it out
and press reset key 4.
Fig. 1.13 Control panel, Elektronikon I
1.4.3 Display
Normally, the display shows the operation status of the
compressor by means of pictographs and the air outlet pressure:
bar
6.6
Fig. 1.14 Main screen, typical example
1.4.4 Scrolling through all screens
It is possible to scroll downwards and upwards through a
number of screens by means of the upwards/downwards arrow
keys (12 and 13-Fig. 1.13) on the control panel.

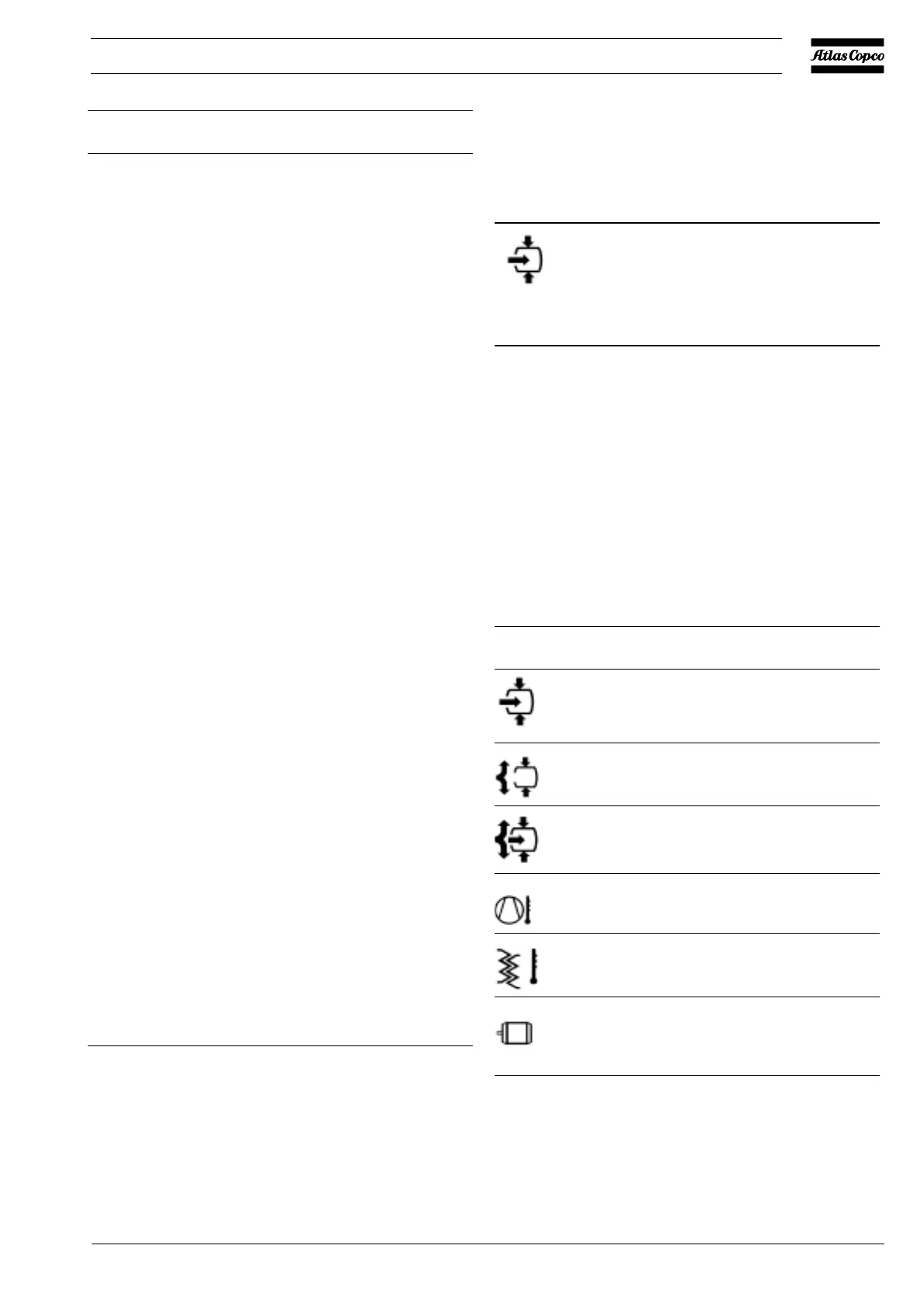

1.4.5 Pictographs used on the screen
Pictograph Explanation
Compressor status LOAD (during loaded running,
the horizontal arrow blinks)
Compressor status UNLOAD
Running hours
Element outlet temperature
Dewpoint temperature
Motor or fan motor overload
