- 16 -
2.3 Mechanical features
The mechanical features described in this chapter are
standard provided on this light tower. For all optional
mechanical features, see chapter “Overview of the
mechanical options” on page 65.
2.3.1 Engine and alternator
The alternator is driven by an air-cooled diesel
engine. The engine’s power is transmitted through a
direct conical coupling.
The light tower houses a single bearing alternator
with a dedicated excitation system for light tower
application.
The synchronous brushless alternator has Class H
rotor and stator windings in an IP21 housing.
2.3.2 Cooling system
The engine and alternator are air cooled by means of
mechanical fans. An additional electrical fan is
installed to guarantee maximum cooling efficiency.
2.3.3 Safety devices
The unit controller monitors the engine and electrical
parameters and generates warning and shutdown
signals when the parameters reach a preset treshold
value.
2.3.4 Bodywork
The alternator, the engine, the cooling system, etc. are
enclosed in a sound-insulated bodywork that can be
opened by means of service doors.
The HiLight H5+/H2 can be lifted by using the lifting
eye integrated in the bodywork (roof). Double
galvanized forklift slots are provided in the frame, to
allow lifting of the unit from both sides.
2.3.5 Control panel
The control panel grouping the controller, fuses,
automatic switches, sockets, etc., is accessible by
opening the door at the front.
2.3.6 Data plate and serial number
The light tower is furnished with a data plate showing
the product code, serial number and power output (see
chapter “Data plate” on page 92). It is located on the
left corner panel, below the emergency stop button.

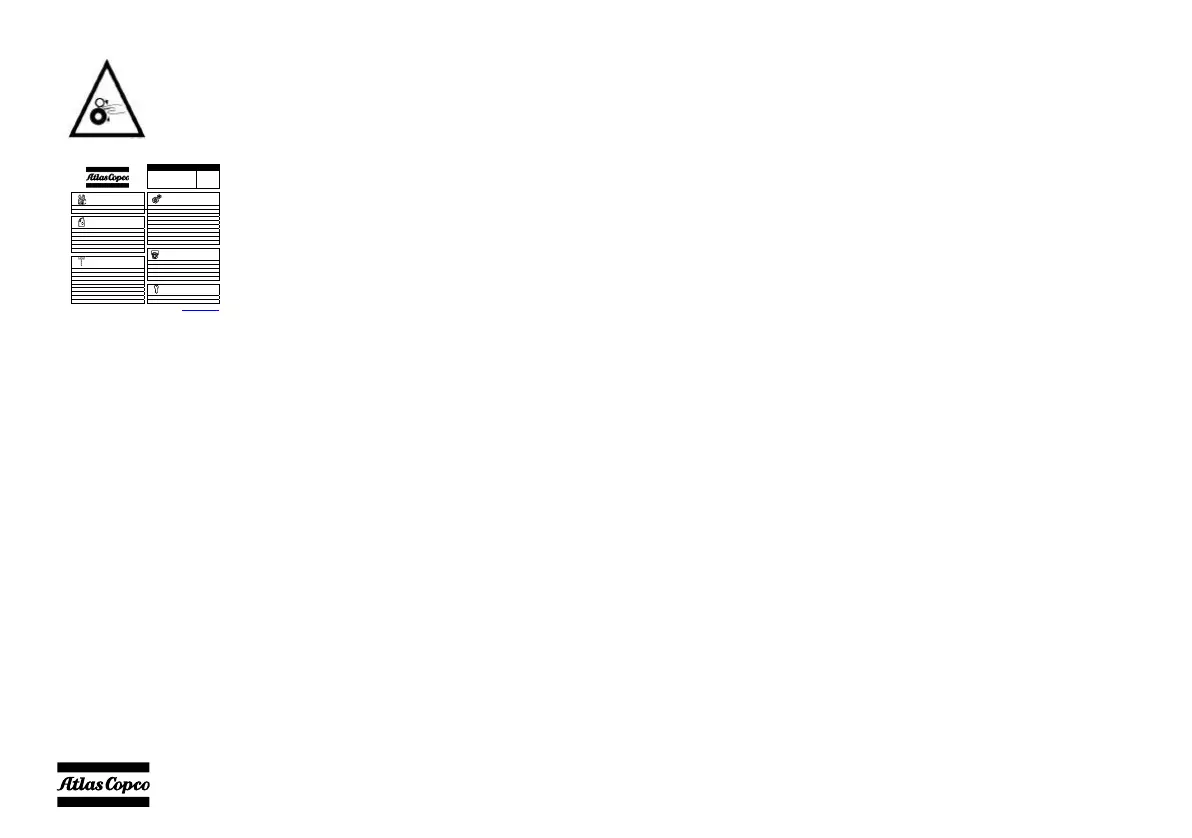

Indicates the danger of touching
rotating parts of the unit.
Indicates the different
service packs, liquids and
critical parts. These parts
can be ordered to the
factory.
HiLight H5+ / HiLight H2
ENGINE 1B50T-3
FUEL TANK CAPACITY 131 L
OIL SUMP CAPACITY 3,5 L
HYDRAULIC OIL CAPACITY 2,5 L
ALTERNADOR E1C13S
A/4
Description Order Nr
Description Order Nr
SERVICE KIT 400h 1636 3104 13 ENGINE STOP DEVICE 1636 3017 37
PREHEAT PLUG 1636 3017 32
SWITCH OIL TEMPERATURE 1636 3017 34
SWITCH OIL PRESSURE 1636 3017 33
FUEL PUMP 1636 3017 46
Description Order Nr
RECTIFIER (Alternator) 1636 3017 44
PAROIL E 5L (1.1GAL) 1615 5953 00 DIPSTICK 1636 3017 42
PAROIL E 20L (4.4GAL) 1615 5954 00 STARTER MOTOR 12V 1636 3017 38
PAROIL E 209L (45.98GAL) 1615 5955 00 POLAR RING KIT (Alternator) 1636 3017 45
PAROIL E XTRA 5L (1.1GAL) 1630 0135 00
PAROIL E XTRA 20L (4.4GAL) 1630 0136 00
Alternator parts
Light Tower
Description Order Nr
KIT DIODE 1636 3017 49
Description Order Nr
TERMINAL BOARD 1636 3017 50
FLOODLIGHT 1636 0049 99 CAPACITOR 30 μF 1636 3017 55
HIGH POWER LED 1636 3017 64 CAPACITOR 25 μF 1636 3017 54
LED DRIVER 1636 3017 61
FLOODLIGHT MH 1636 3029 84
Keys
BALLAST 400W 1636 3029 85
BULB MH 1636 3029 86
IGNITOR 1636 3029 88
Description Order Nr
HYDRAUL. OIL SPEC - HVLP46 KEY 1615 7271 00
1636 0083 31
