- 67 -
7.3 Overview of the electrical
options
The following electrical options are available:
– Auto tilt
–Earth pin
– External power input (230 VAC), with battery
charger
– Battery switch
– MSA connector
– 1-phase socket: RIM, PIN and CE + CB or no
socket
– AC type earth leakage relay
– A type earth leakage relay
– ASM (Auto Rise and Lower Safety Mast)
– Advanced cubicle
– Standard cubicle
7.4 Description of the electrical
options

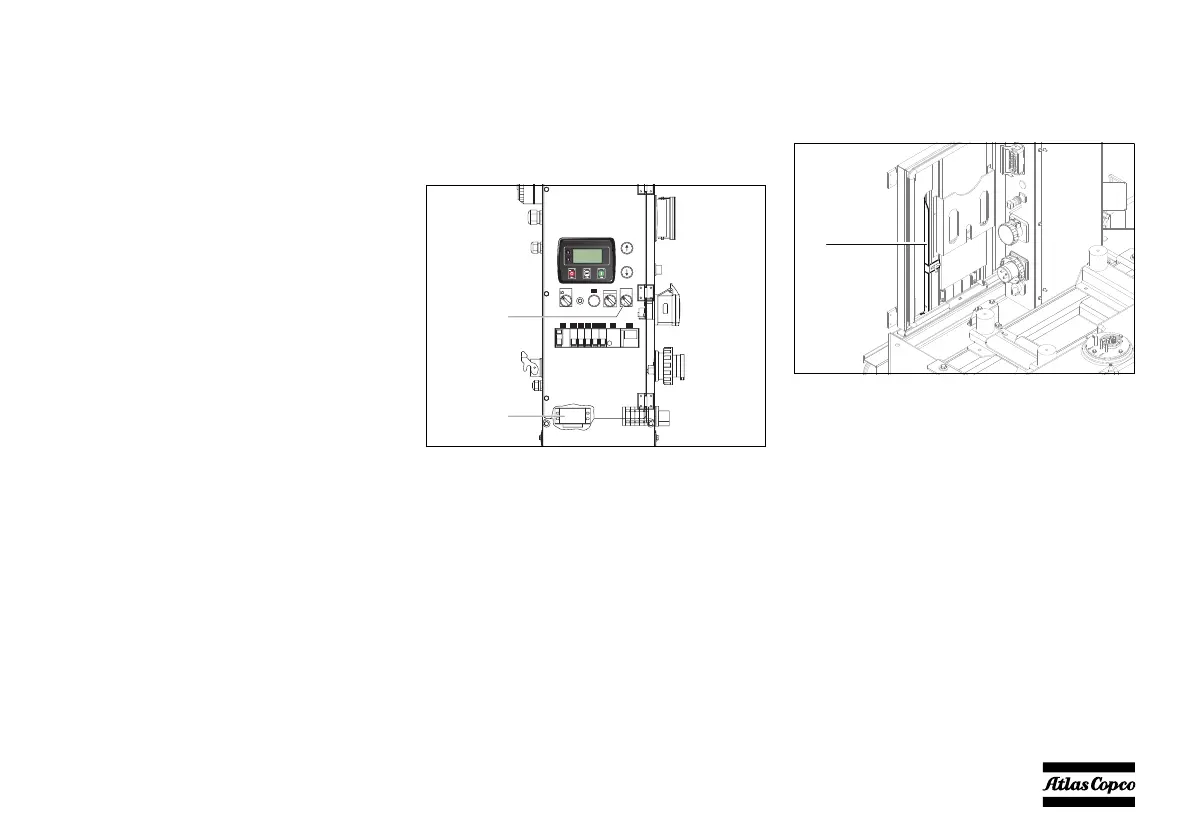

7.4.1 Auto tilt
The auto tilt option allows to set the inclination angle
of the floodlights via the control panel.
S30 .....Auto tilt switch
Turn the switch to UP to increase the
inclination angle of the floodlights.
Turn the switch to DOWN to decrease the
inclination angle of the floodlights.
A2 ....... Actuator DC supply and control
7.4.2 Earth pin
The earth pin (1), to be connected to the light tower’s
earth terminal is located at the bottom of the frame on
the outside.
S50
S51
S20
0
1
F10
H15 S25
0 1
Q2 Q3 Q4 Q5Q1
P7
Q6
Q1 Q2 Q3 Q4 Q5 Q6 P8
ON
P7
S30
0
DOWNUP
Lc1003
A2
S30
A2
