- 69 -
7.4.6 ASM (Auto Rise and Lower
Safety Mast)
The ASM option provides the possibility to not only
switch on/off the floodlights automatically, but also
to extend/lower the mast automatically.

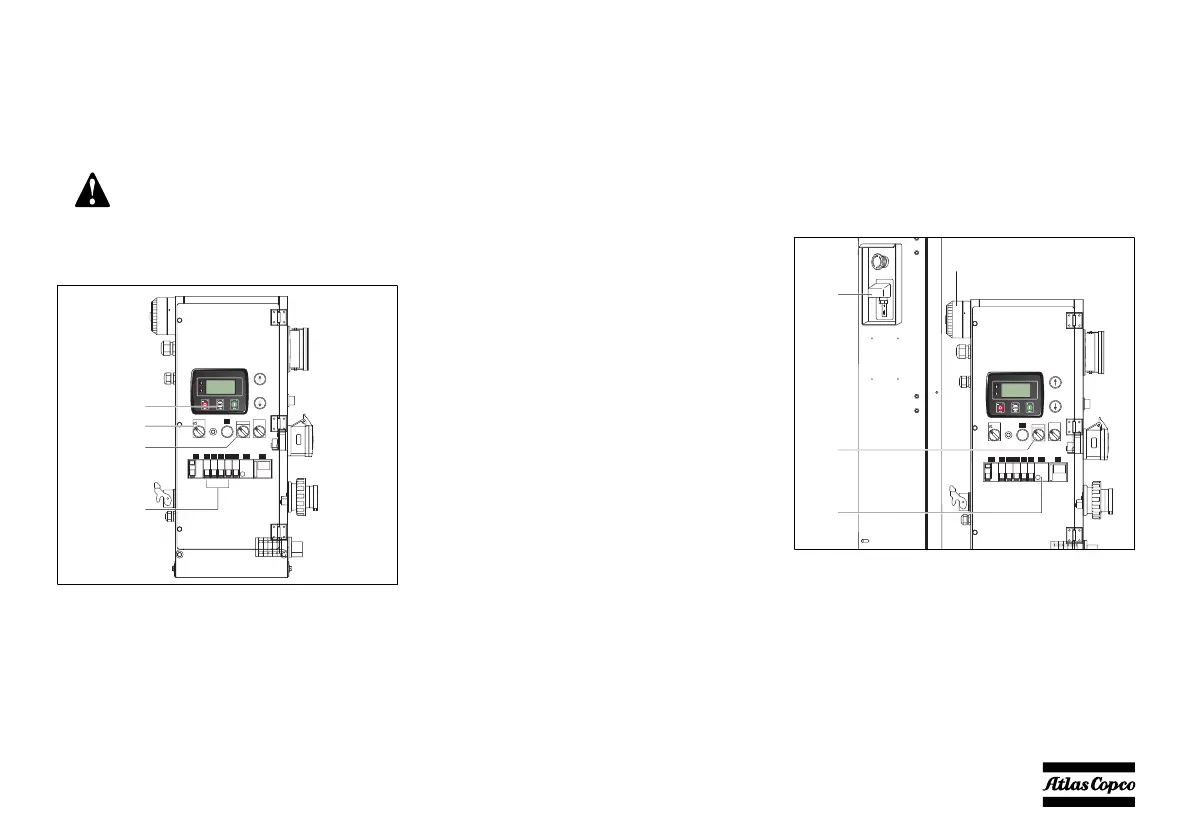

To enable automatic mast operation, proceed as
follows:
1. Put the starter switch S20 in position REMOTE
(1).
2. Switch ON the 4 circuit breakers (Q2-5) (2).
3. Put the auto positioning switch S25 in position
AUTO (3).
4. Push the AUTO button on the Lc1003™ module
(4) to activate AUTO mode.
5. A remote start signal (Sunset or Weekly timer
start) will trigger the following actions:
• Start engine
• Activate buzzer
•Rise mast
• Sequence lamp start
6. A remote stop signal (Sunrise or Weekly timer
stop) will trigger the following actions:
• Sequence lamp stop
• Activate buzzer
•Lower mast
• Stop engine
7.4.7 Advanced cubicle
The advanced cubicle includes:
– Lc1003™ controller
– Auto start: photocell and weekly timer
– Working mode selector
– Floodlight switches
7.4.7.1 Photocell
P7.1.....Photocell
Measures the luminosity and can be
activated by sunlight.
P7........Photocell sensitivity regulator
Is used for regulating the luminosity
sensitivity level of the photocell.
Before activating the ASM option,
make sure that the lighting tower is
properly positioned, away from
overhead power cables or other
obstructions.
S50
S51
S20
0
1
F10
H15 S25
0 1
Q2 Q3 Q4 Q5Q1
P7
Q5
Q1 Q2 Q3 Q4 Q5 Q6 P8
ON
P7
S30
0
DOWNUP
Lc1003
3
1
4
2
S50
S51
S20
0
1
F10
H15 S25
0 1
Q2 Q3 Q4 Q5Q1
P7
Q6
Q1 Q2 Q3 Q4 Q5 Q6 P8
ON
P7
S30
0
DOWNUP
Lc1003
Z1
P7.1
P7
S25
