- 53 -

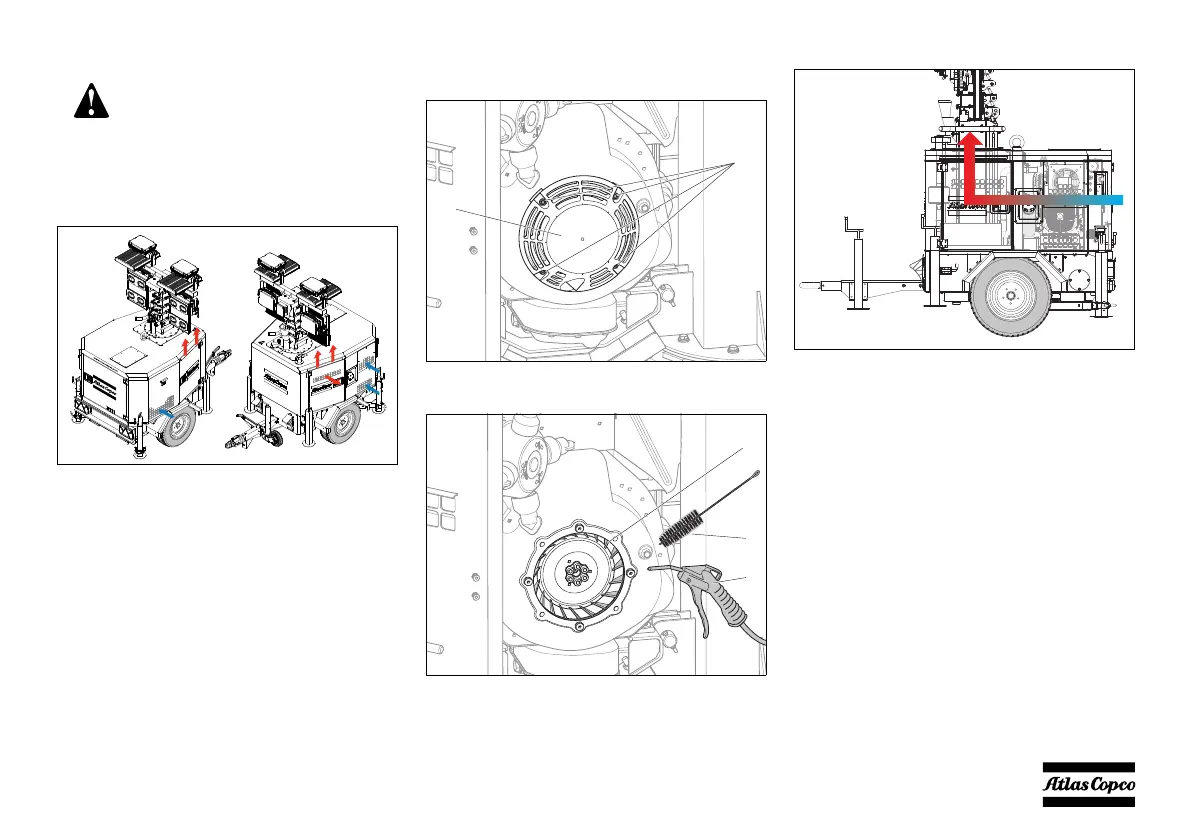

5.5.5 Air cooling circuit
5.5.5.1 Air cooling circuit HiLight H5+
Air flow
The air flows from the grids in the doors towards the
grids in the roof and rear panel. This means that cold
air enters via the engine and alternator door and hot
air exits through the outlets in the roof and service
plate.
Cleaning the cooling air area
1. Remove the 4 bolts (1) and take off the cover (2).
2. Clean the fan blades (3) with a suitable brush (4),
then blow it clean with compressed air (5).
5.5.5.2 Air cooling circuit HiLight H2
The air flows from the front (towbar side) towards the
rear side of the machine. This means, cold air enters
at the front side and hot air exits at the rear side of the
machine.
Check every day that none of the air
cooling circuits are clogged with
dust or other particles. If any circuit
is obstructed, it must be cleaned.
