- 68 -

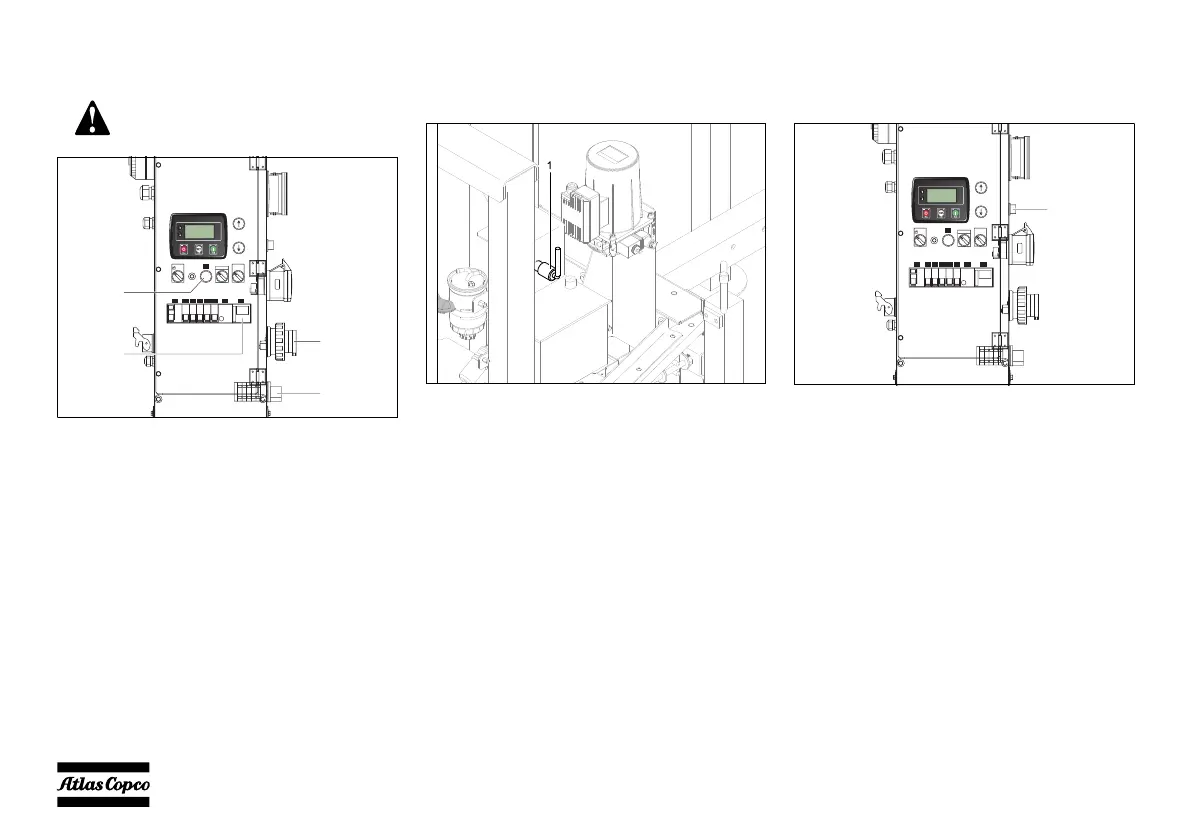

7.4.3 External power input (230 VAC),
with battery charger
H15 ..... Indicator of Mains available
Illuminated LED indicates that the unit is
running on external mains.
P8........ Timer (scheduler)
Is used for setting a time schedule for the
lamps of the light tower to switch on / off.
S10 ..... Input power selector
Position 1: running on Diesel engine
Position 0: neutral position
Position 2: running on external mains
X2 ....... Inlet socket for connection to the
mains (32A)
7.4.4 Battery switch
The battery switch is installed near the battery and
allows to disconnect the battery power.
7.4.5 MSA connector
The MSA connector is located in the cubicle and
allows remote emergency stops.
X19 .....MSA connector
Only available in combination with
the advanced Lc1003™ cubicle.
S50
S51
S20
0
1
F10
H15 S25
0 1
Q2 Q3 Q4 Q5Q1
P7
Q6
Q1 Q2 Q3 Q4 Q5 Q6 P8
ON
P7
S30
0
DOWNUP
Lc1003
X2
S10
H15
P8
S50
S51
S20
0
1
F10
H15 S25
0 1
Q2 Q3 Q4 Q5Q1
P7
Q6
Q1 Q2 Q3 Q4 Q5 Q6 P8
ON
P7
S30
0
DOWNUP
Lc1003
X19
