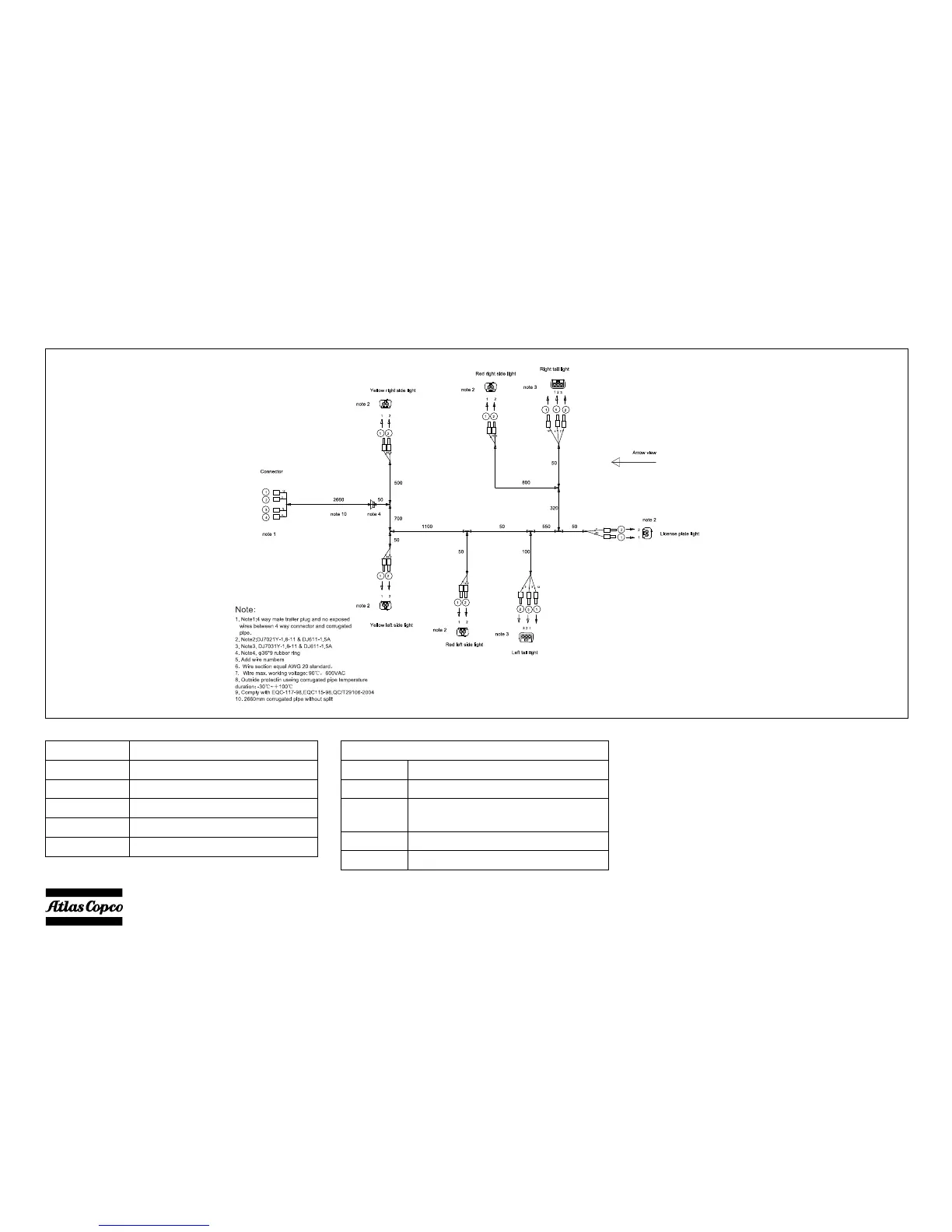

TRAILER WIRING DIAGRAM- 1094 2932 00

Reference Description

a Right stop, turn, and tail lights

b Left stop, turn, and tail lights

c Side light, amber

d Side light, red

e License plate light

Wire Colours

G Green Right stop and turn lights

Y Yellow Left stop and turn lights

Br Brown License plate, tail, and side

lights

W White Ground

RRed
