Starting the HiLight P2+
The HiLight P2+ is a “plug-and-use” light tower. It
must be connected to a power source to energize the
lamp.

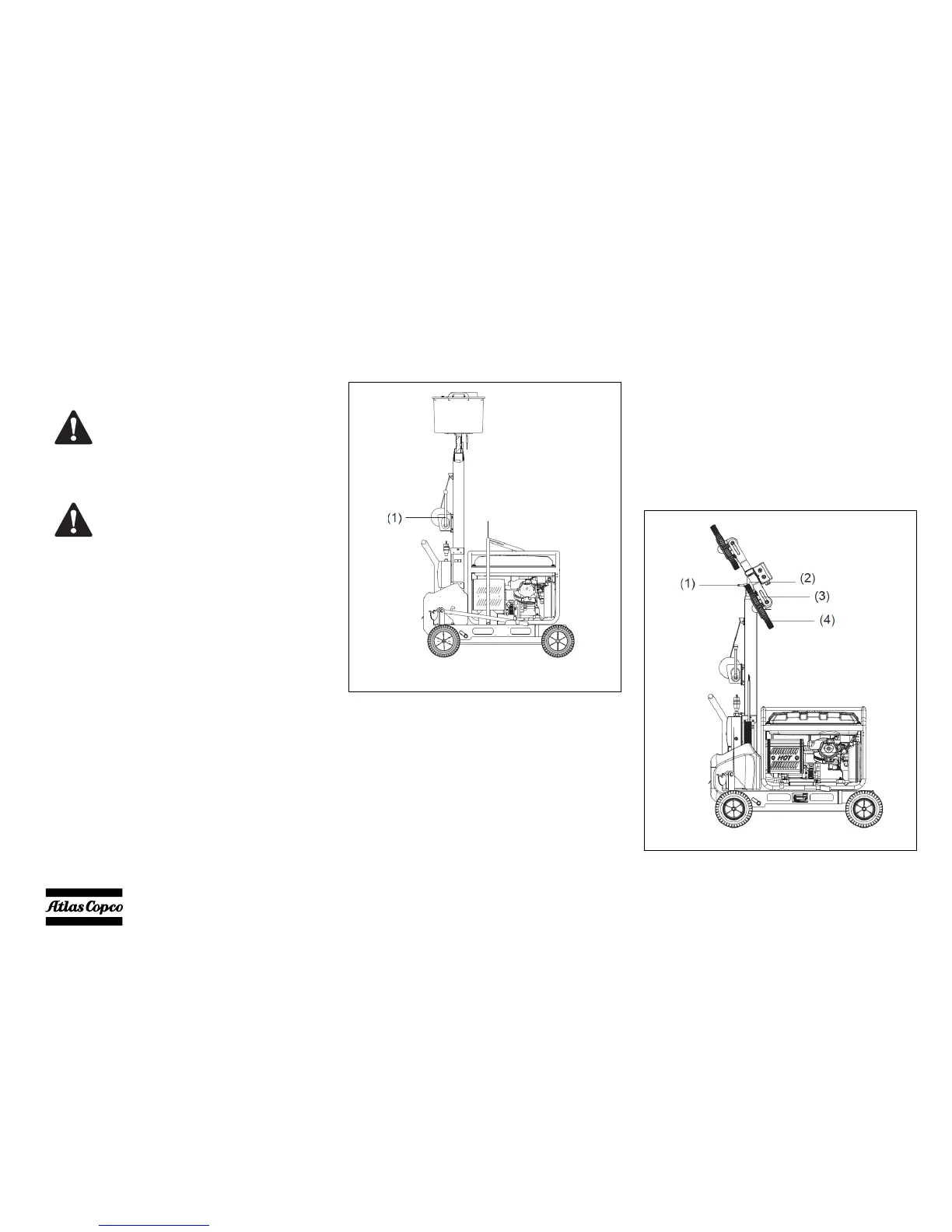

Raising and lowering the light towers
1. Raising
a) Raising the mast
1. Rotate the handle of the winch (1) till the lamp
reaches the necessary height.
b) Adjusting the lamp direction fo
r HiLight V3+
1. Unscrew the locking pin (1) and rotate the light
tower mast (2) to change direction of
illumination.
2. Screw the locking pin (1) to the mast (2) after
rotating it.
3. Loosen the knob (3) of an individual lamp (4)
to change its orientation. The lamp (4) can be
moved along its horizontal axis, as needed.
4. Tighten the knob (3) after adjusting the
orientation of the lamp (4)
Falling equipment can cause injury or
death.
• The operator should prevent twisting
and pinching of cables and wires
while raising the tower mast.
• De-energize the light tower before
raising the tower. Touching live
electrical circuits can cause electric
shock and can result in injury or
death.

Atlas Copco HiLight V2+ Specifications

General

Brand	Atlas Copco
Model	HiLight V2+
Category	Lighting Equipment
Language	English
