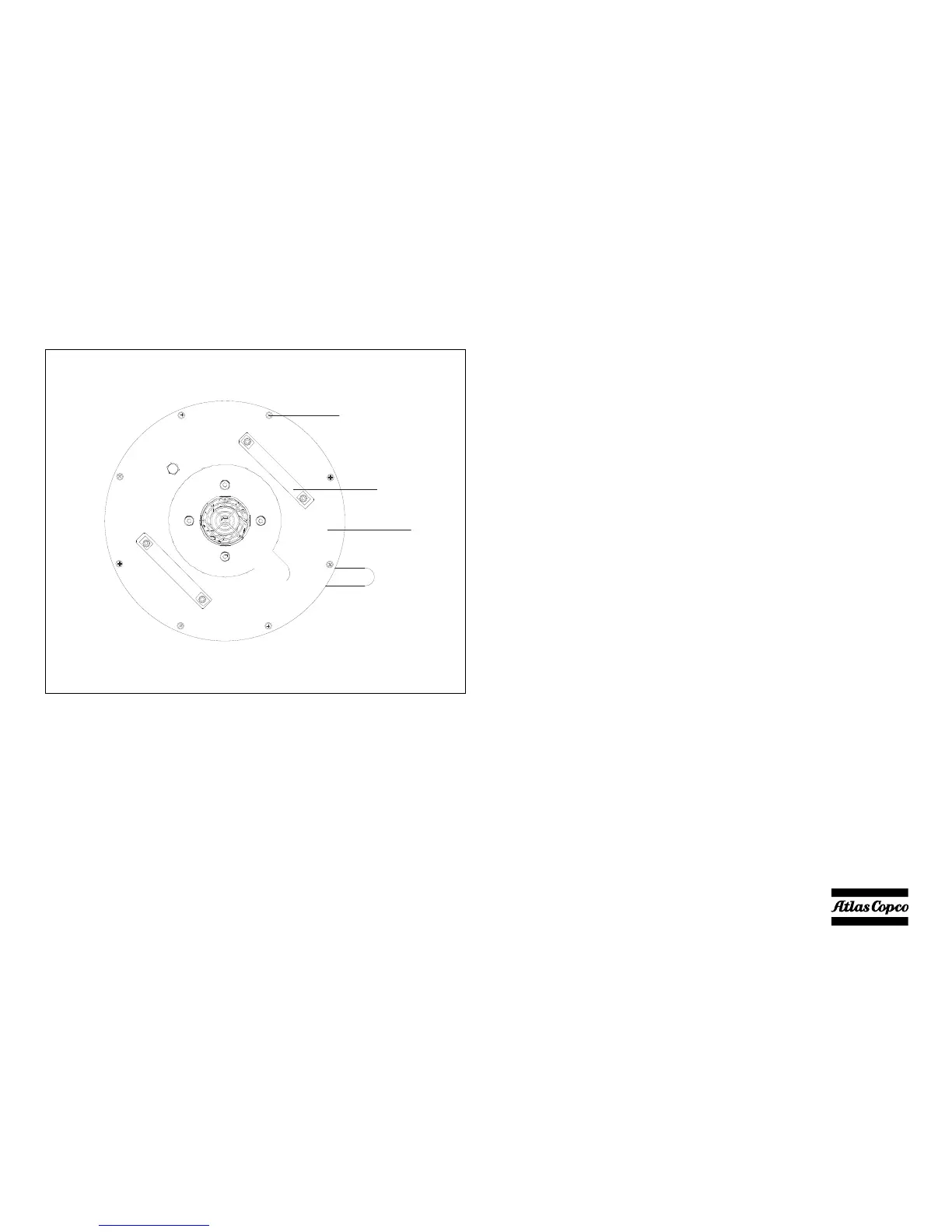

2. Replacing the lamp for HiLight V2+ and HiLight P2+
a) Remove the 8 screws (1) using a pneumatic tool.
b) Lift and remove the LED protective cover (3) by using the handles (2).
c) Disconnect the LED power lines.
d) Replace the LED.
e) Re-connect the power lines to the LED.
f) Fit the LED protective cover (3) using 8 screws (1).
ENGINE MAINTENANCE
Refer to the Engine Instruction Manual for precautions and maintenance of the
engine.
Replacing parts
See the Parts Manual for more information.
