Design and function
LF compacters are specially designed for compacting
thin to medium layers of granular soils and, with the
added water tank, for asphalt. They are ideal for
repair jobs and maintenance work such as driveways,
pathways, and parking lots. With a block paving kit
they are also suitable for block paving applications.
No other use is permitted.
LF compacters must only be used in well-ventilated
areas, as is the case for all combustion engine
machines.
Do not tow the machine behind vehicles.
To choose the correct accessories, see the spare
parts list.
For professional use only.
NOTICE Avoid mixing diesel or other toxic
substances in the water tank, this can damage the
machine and have negative influence on the
environment.

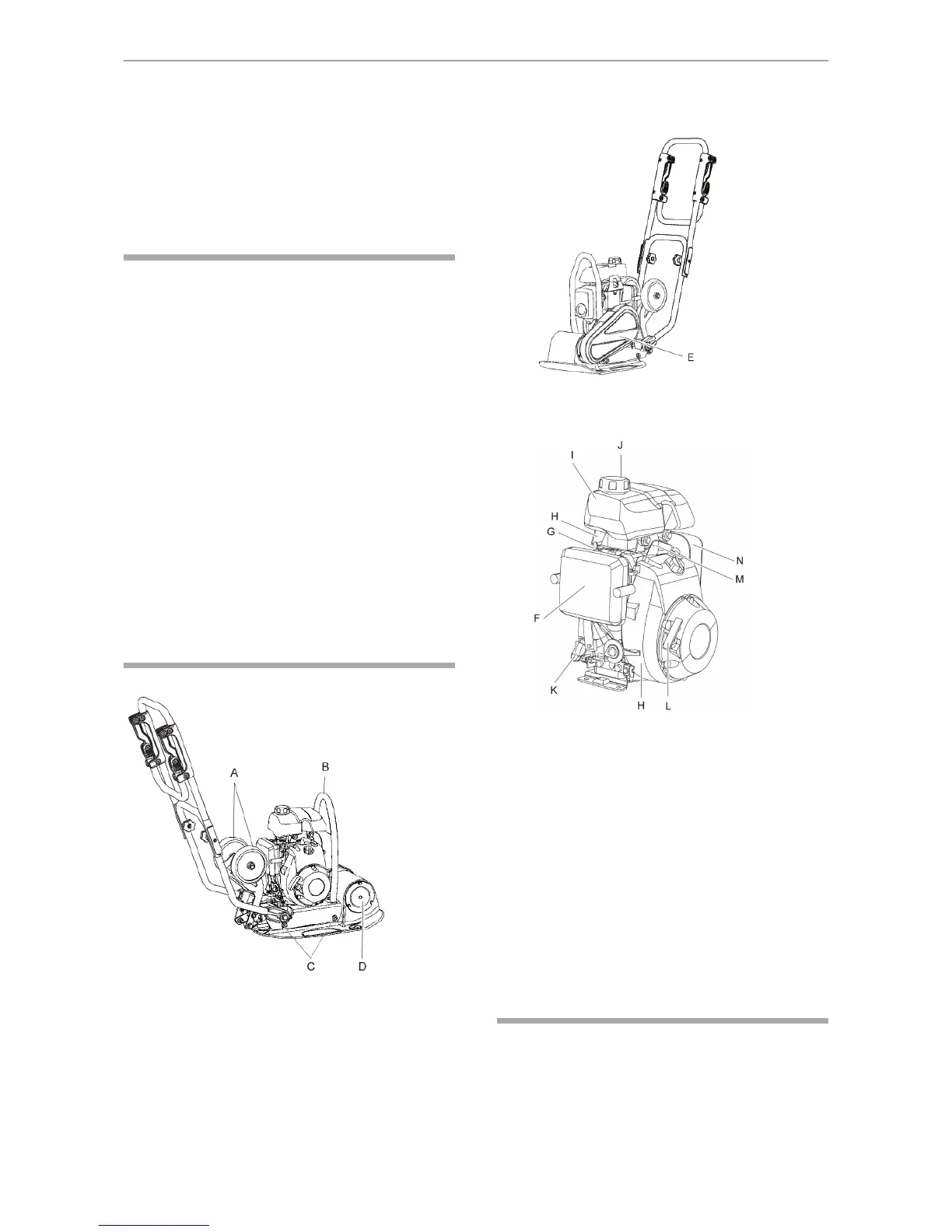

Main parts
A. Transport wheels
B. Lifting lug
C. Shock absorbers
D. Eccentric element
E. V-belt
F. Air filter
G. Carburettor
H. Cooling flanges
I. Fuel level
J. Fuel tank
K. Engine oil/dipstick
L. Recoil starter
M. Spark plug
N. Silencer
Labels
The machine is fitted with labels containing important
information about personal safety and machine
maintenance. The labels must be in such condition
that they are easy to read. New labels can be ordered
from the spare parts list.
