Unity Controller R9 Variants, Issue 13
1
2 3 4
5
6 7
8 9
10
11 12
13
14 15
16
VIDEO

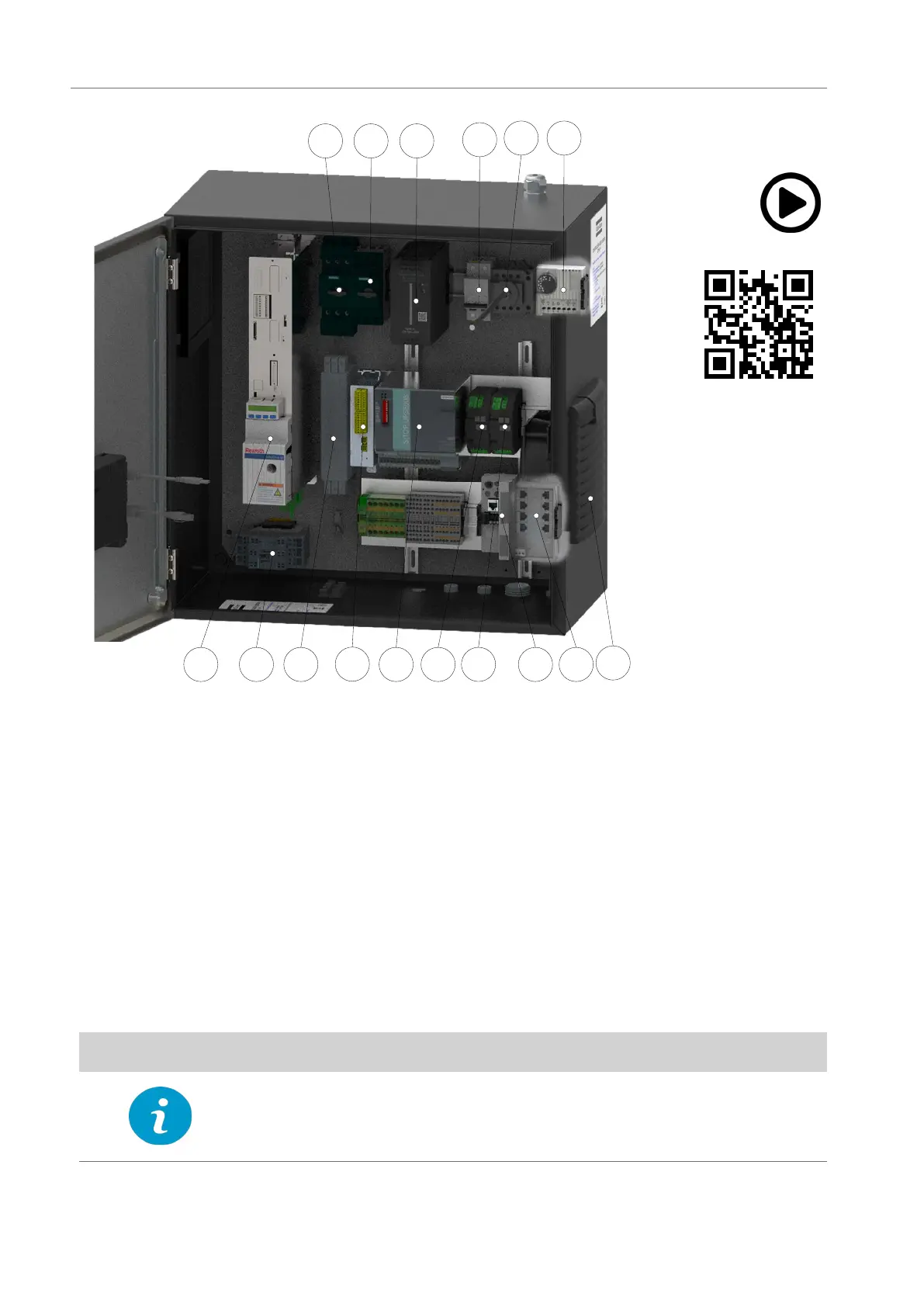

1 - Servo Drive Power Section and Servo
Safe Motion Control KF4
2 - Drive Circuit Breaker 10A QA2
3 - MCB Circuit Breaker 4A QA3
4 - 24V 3phase Switched Mode Power
supply (10A) TA1
5 - Bulk Rivet Feeder Power MCB 6A QA4
6 - Main Disconnect QZ1
7 - Internal Thermostat BT1
8 - Emergency Stop Contactor QA1
9 - Filter EMC/RFI Motor Drives KF1
10 - Safety Zone Module KF3
11 - DC Buer CA2
12 - 4A Circuit Breaker FC1
13 - 2A Circuit Braker FC2
14 - Feed Controller, gateway for BL20 I/O
System and MODBUS TCP KF6
15 - Ethernet Switch, 8 Port Unmanaged
XF4
16 - Fan Unit 24VDC GQ1
NOTE
R9 ROW Controller type shown for illustration purposes only.
Refer to the schematic drawing for detailed information of the
controller in use.
