Vehicle Diagnosis And Adjustment 40
Atlas Cyclops
When you are in the fi rst position (approximately 15° forward on turn-tables),
press F5 or the central key on one of the two 3D cameras.
“STOP” is displayed for about three seconds, i.e. the time needed by the
program to take the measurements from the 1st point, after that, the program
shows the following page:

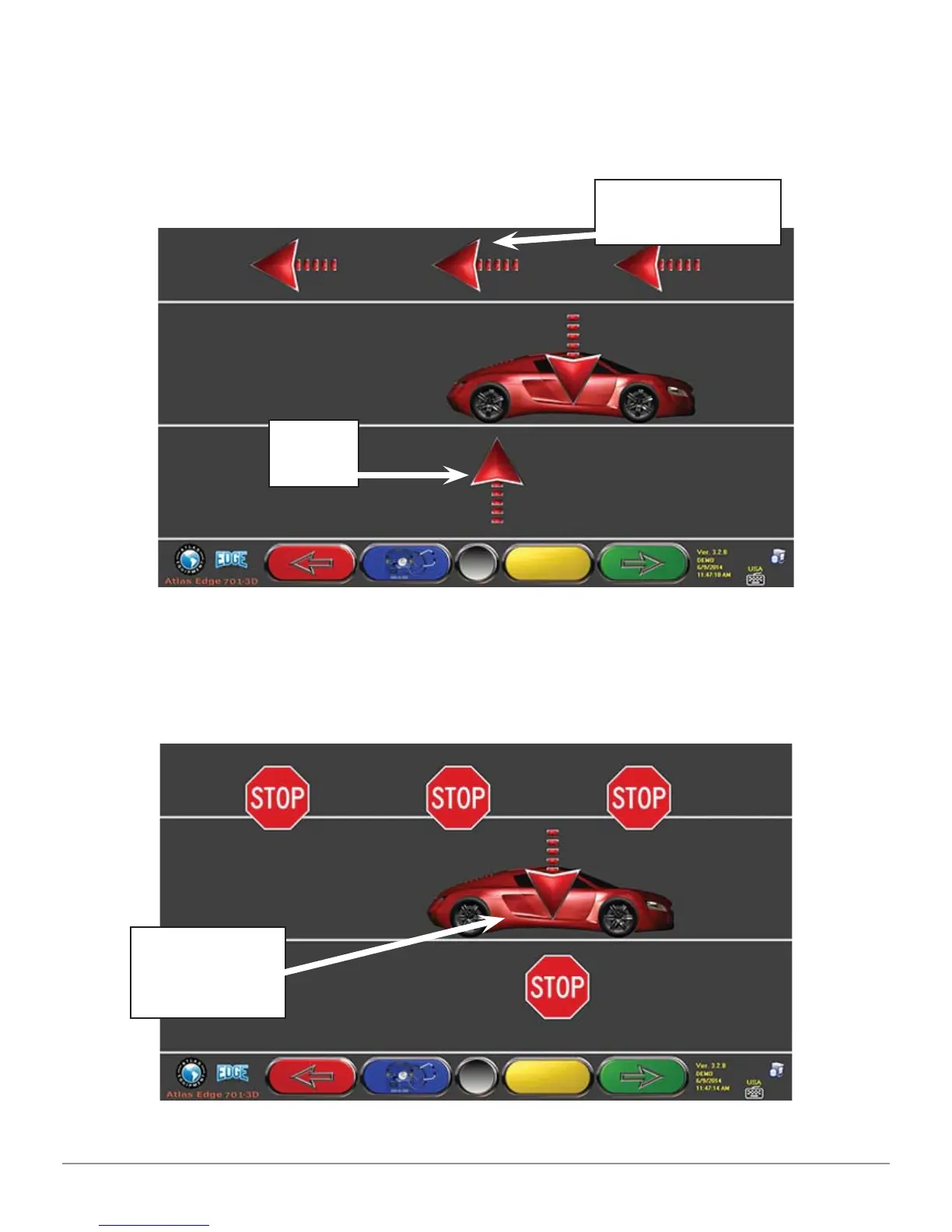

Figure 2 7
Start moving the vehicle backward, very slowly, until the vehicle arrow matches
the target point.
Figure 2 8
Vehicle Thrust
Direction (back)
Target
Point
Vehicle
Matches
Target Point
To Next Page
