9.6 Measurement Preliminary Operations
After having carried out the out-of-center procedure as explained in part 9.5, it
is necessary to prepare the vehicle for measurement operations. The following

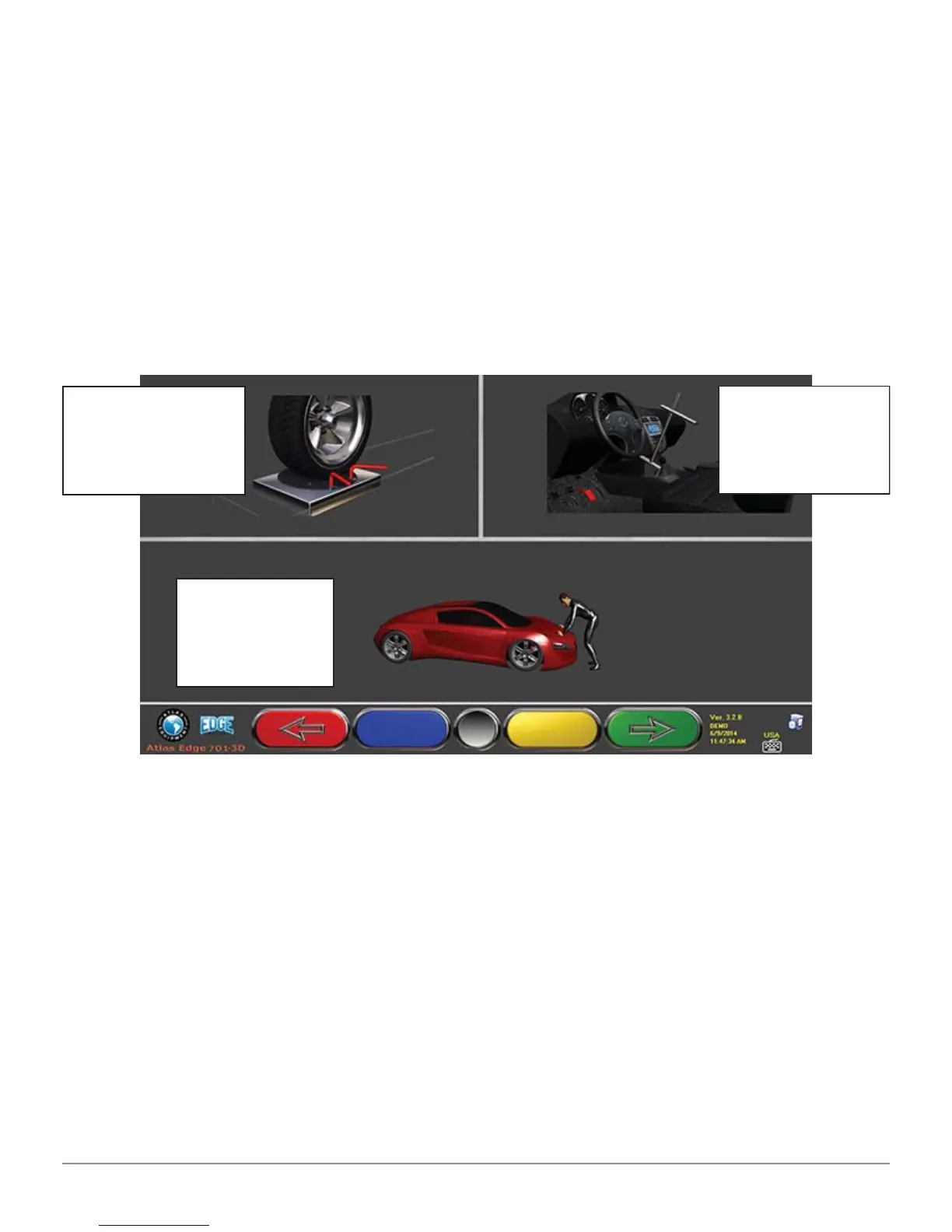

screen will be displayed:
Figure 3 1
1. Release front plates, and any rear platform
2. Brake wheels with hand brake, then lock brake pedal with the pedal depressor
tool (this operation is necessary when carrying out a steering for kingpin
correct calculation).
3. Settle vehicle front and rear ends (necessary only if vehicle had been
previously lifted and the suspensions unloaded).
Settle vehicle
front and
rear ends
Release front
plates, and any
rear platform
Lock brake
pedal using the
special tool
To Next Page
