Vehicle Diagnosis And Adjustment 48
Atlas Cyclops
9.11 Rear Axle Adjustment
Rear axle adjustment procedure can be made by pressing F4 from Figure 37
after carrying out adjustment preliminary operations (part 9.10).
Proceed to adjustment, where allowed, as follows:
• Rear camber - Rear partial toe

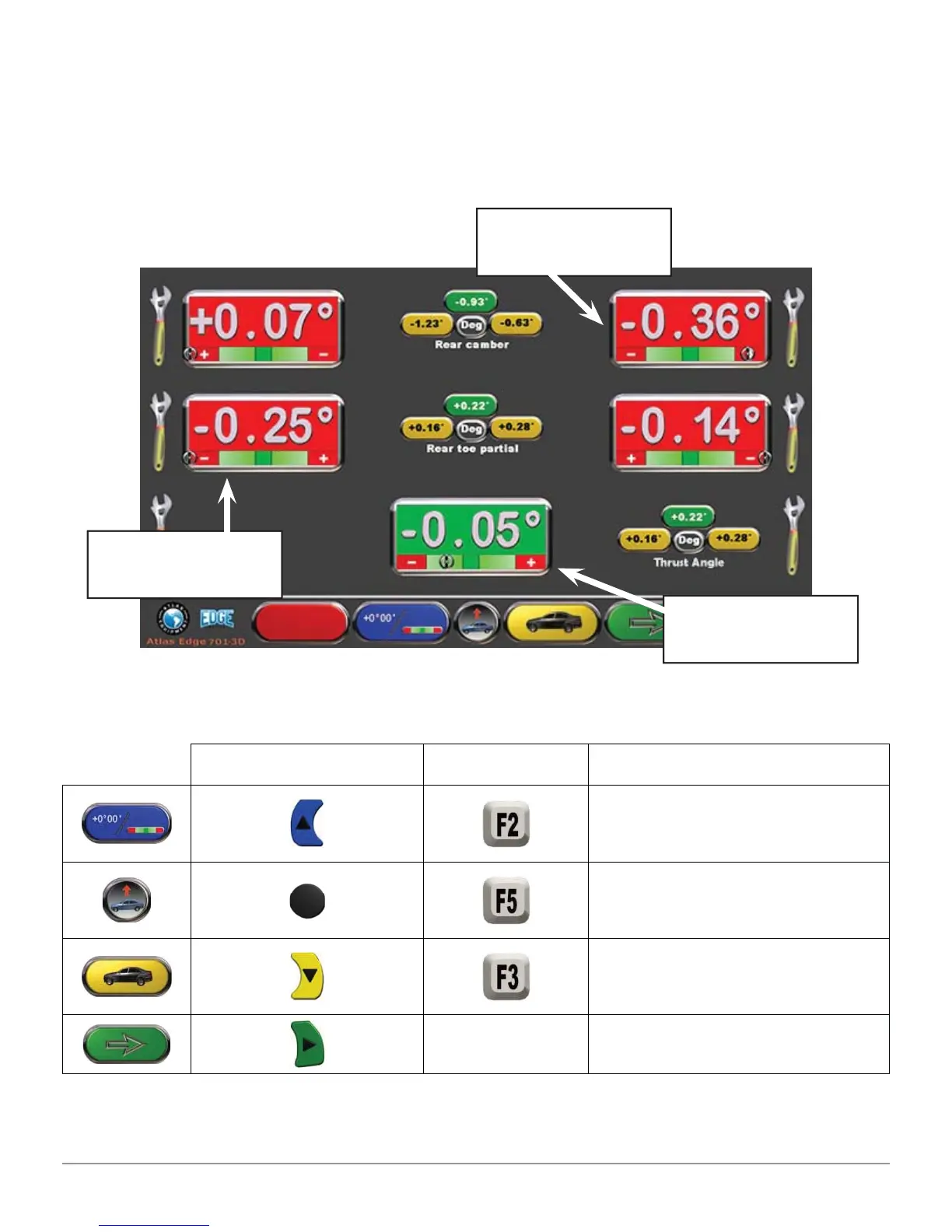

Figure 3 8
Detector Keypad Pc Keypad Description
It changes values
displaying layout (large
numbers/large cursors)
“Jack-Hold” procedure
(adjustment with
raised wheels)
It displays vehicle
technical specifi cation
page. (part 9.4)
It continues to front axle
adjustment. (part 9.12)
Rear camber
measurements
Thrust angle
measurements
Rear partial toe
measurements
To Next Page
