Vehicle Diagnosis And Adjustment 50
Atlas Cyclops
Detector Keypad Pc Keypad Description
Repeat steering
procedure. (part 9.8)
“Jack-Hold” procedure
(adjustment with raised wheels)
Caster/camber selection:
It displays tolerance on the
LED (see part 3.4.3)
It carries out toe-in
adjustment with steered
wheels. (See part 9.12.1)
It repeats adjustment
operations (part 9.11)

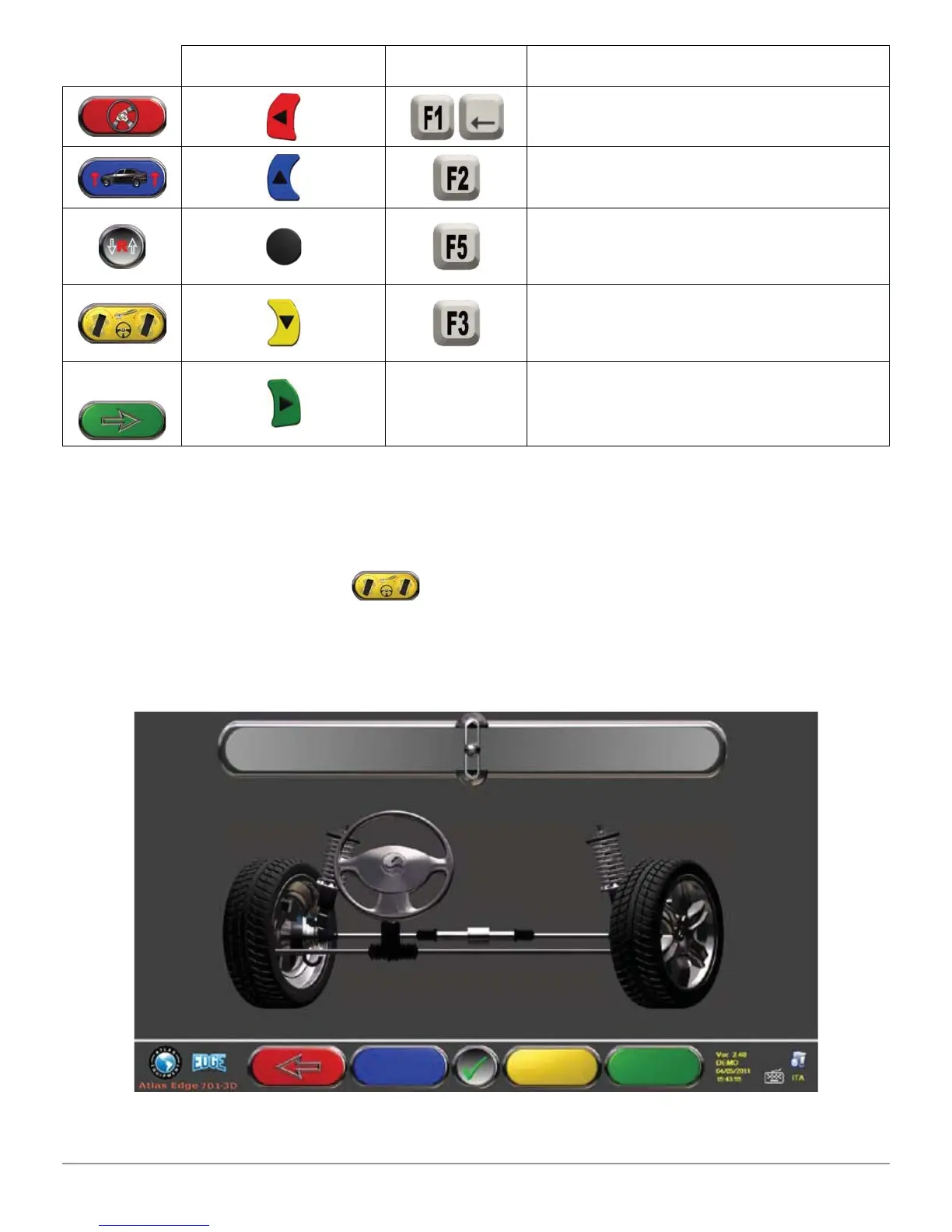

9.12.1 Front toe-in adjustment with steered wheels
Front toe-in adjustment procedure with steered wheels is started by pressing F3
from front adjustment page
.
The following picture, requesting to steer left or right, will be shown. Press F5 to
confi rm.
Figure 4 0
