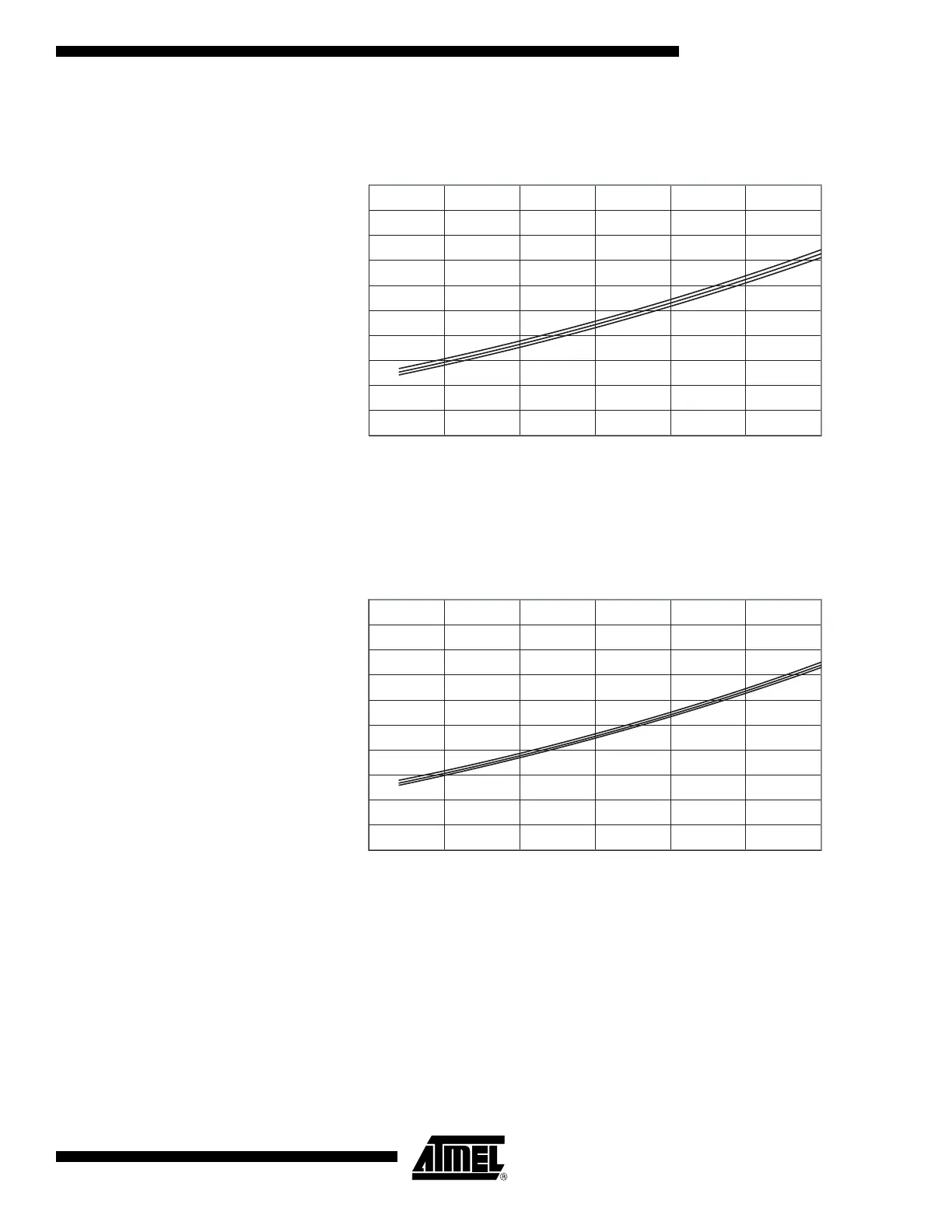

Figure 139. Idle Supply Current vs. V
CC
(Internal RC Oscillator, 8 MHz)
Figure 140. Idle Supply Current vs. V
CC
(Internal RC Oscillator, 4 MHz)
IDLE SUPPLY CURRENT vs. V
CC
INTERNAL RC OSCILLATOR, 8 MHz
0
1
2
3
4
5
6
7
8
9
10
2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(mA)
85 °C
25 °C
-40 °C
IDLE SUPPLY CURRENT vs. V
CC
INTERNAL RC OSCILLATOR, 4 MHz
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(mA)
85°C
25°C
-40°C
