Atmel ATmega8535L - Internal Oscillator Speed

288
ATmega8535(L)
2502K–AVR–10/06

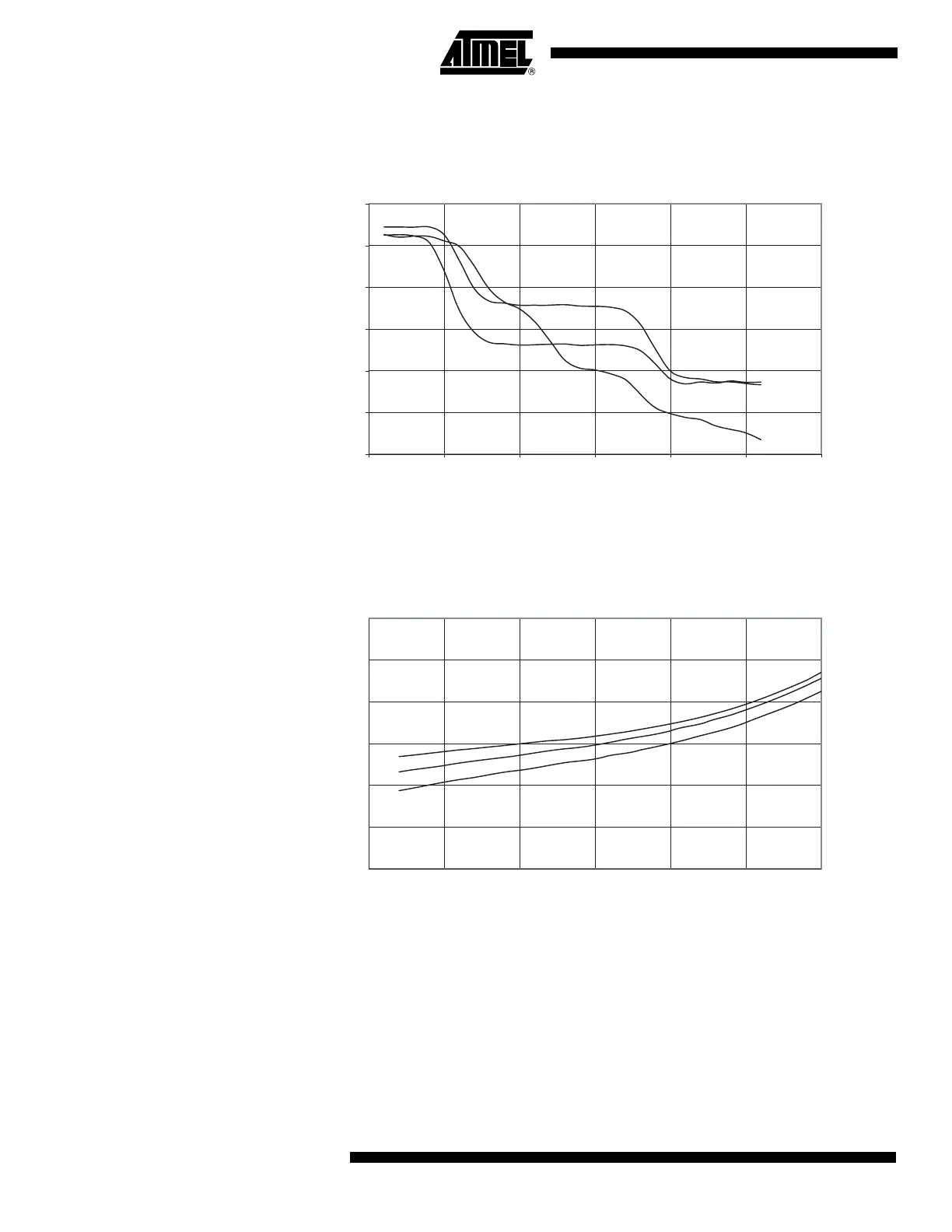

Figure 173. Analog Comparator Offset Voltage vs. Common Mode Voltage (V
CC
=
2.7V)
Internal Oscillator Speed Figure 174. Watchdog Oscillator Frequency vs. V
CC
ANALOG COMPARATOR OFFSET VOLTAGE vs. COMMON MODE VOLTAGE
Vcc = 2.7V
-0.004
-0.003
-0.002
-0.001
0
0.001
0.002
0 0.5 1 1.5 2 2.5 3
Common Mode Voltage (V)
Comparator Offset Voltage (V)
85°C
25°C
-40°C
WATCHDOG OSCILLATOR FREQUENCY vs. V
CC
1000
1050
1100
1150
1200
1250
1300
2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
F
RC
(kHz)
85 °
C
25 °C
-40 °C
