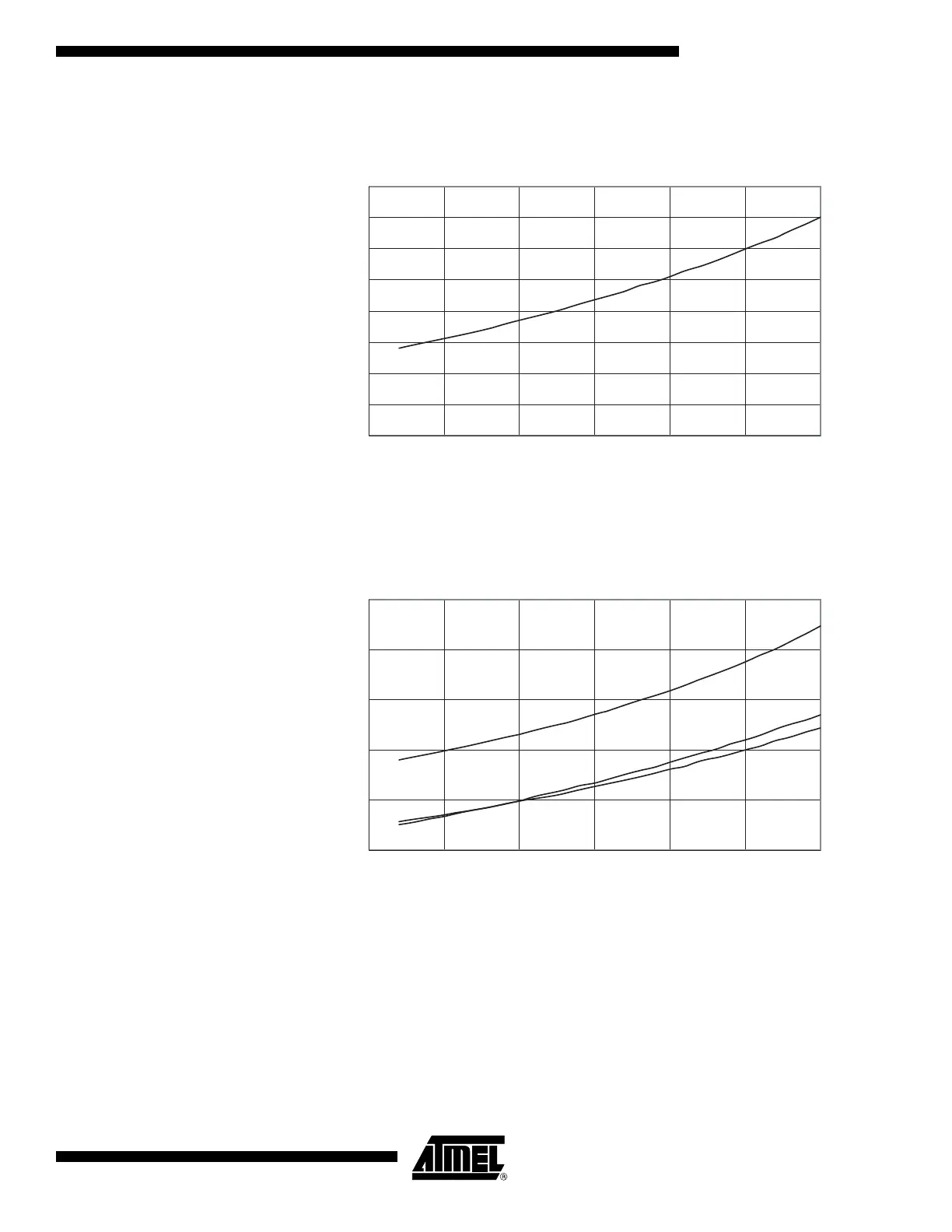

Figure 143. Idle Supply Current vs. V
CC
(32 kHz External Oscillator)
Power-Down Supply Current Figure 144. Power-Down Supply Current vs. V
CC
(Watchdog Timer Disabled)
IDLE SUPPLY CURRENT vs. V
CC
32kHz EXTERNAL OSCILLATOR
0
0.005
0.01
0.015
0.02
0.025
0.03
0.035
0.04
2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(mA)
25°C
POWER-DOWN SUPPLY CURRENT vs. V
CC
WATCHDOG TIMER DISABLED
0
0.5
1
1.5
2
2.5
2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(uA)
85 °C
25 °C
-40 °C
