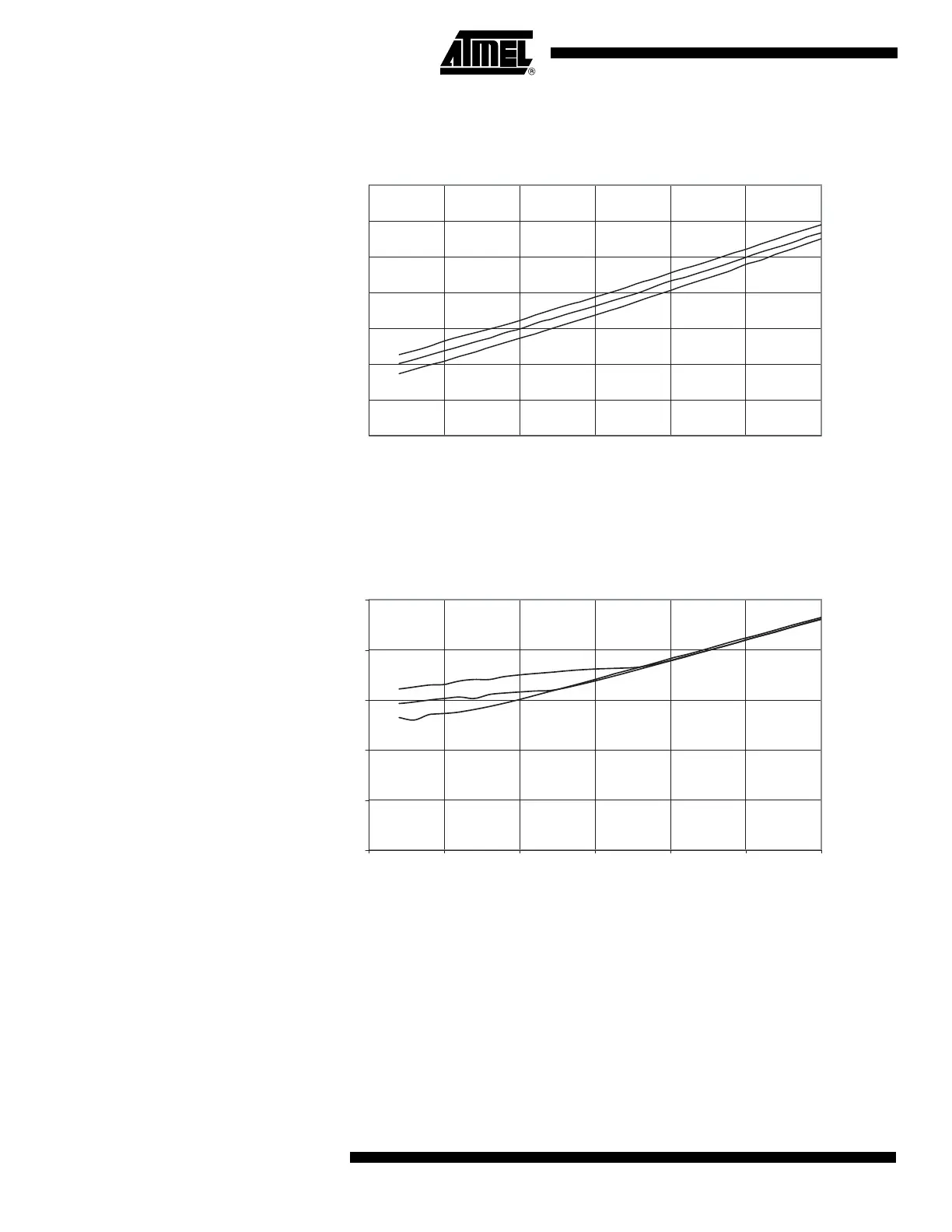

Figure 165. I/O Pin Input Hysteresis vs. V
CC
Figure 166. Reset Input Threshold Voltage vs. V
CC
(V
IH
, Reset Pin Read As '1')
I/O PIN INPUT HYSTERESIS vs. V
CC
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
Threshold (V)
85°C
25°C
-40°C
RESET INPUT THRESHOLD VOLTAGE vs. V
CC
VIH, IO PIN READ AS '1'
0
0.5
1
1.5
2
2.5
2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
Threshold (V)
85 °C
25 °C
-40 °C
