ATmega8535(L)
2502K–AVR–10/06

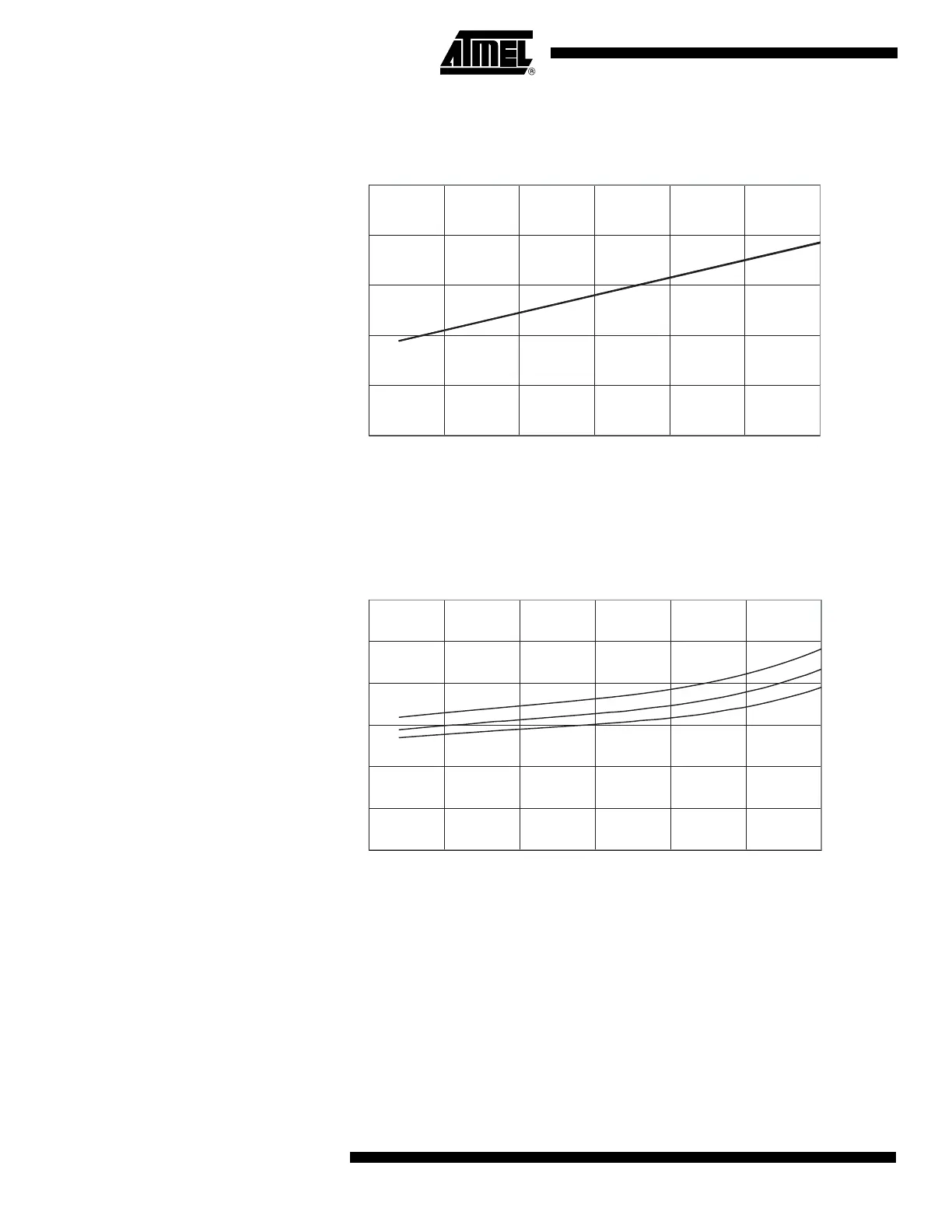

Figure 189. AREF External Reference Current vs. V
CC
Figure 190. Analog Comparator Current vs. V
CC
AREF EXTERNAL REFERENCE CURRENT vs. V
CC
0
50
100
150
200
250
2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(uA)
85 °C
25 °C
-40 °C
ANALOG COMPARATOR CURRENT vs. V
CC
0
20
40
60
80
100
120
2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(uA)
85°C
25°C
-40°C
