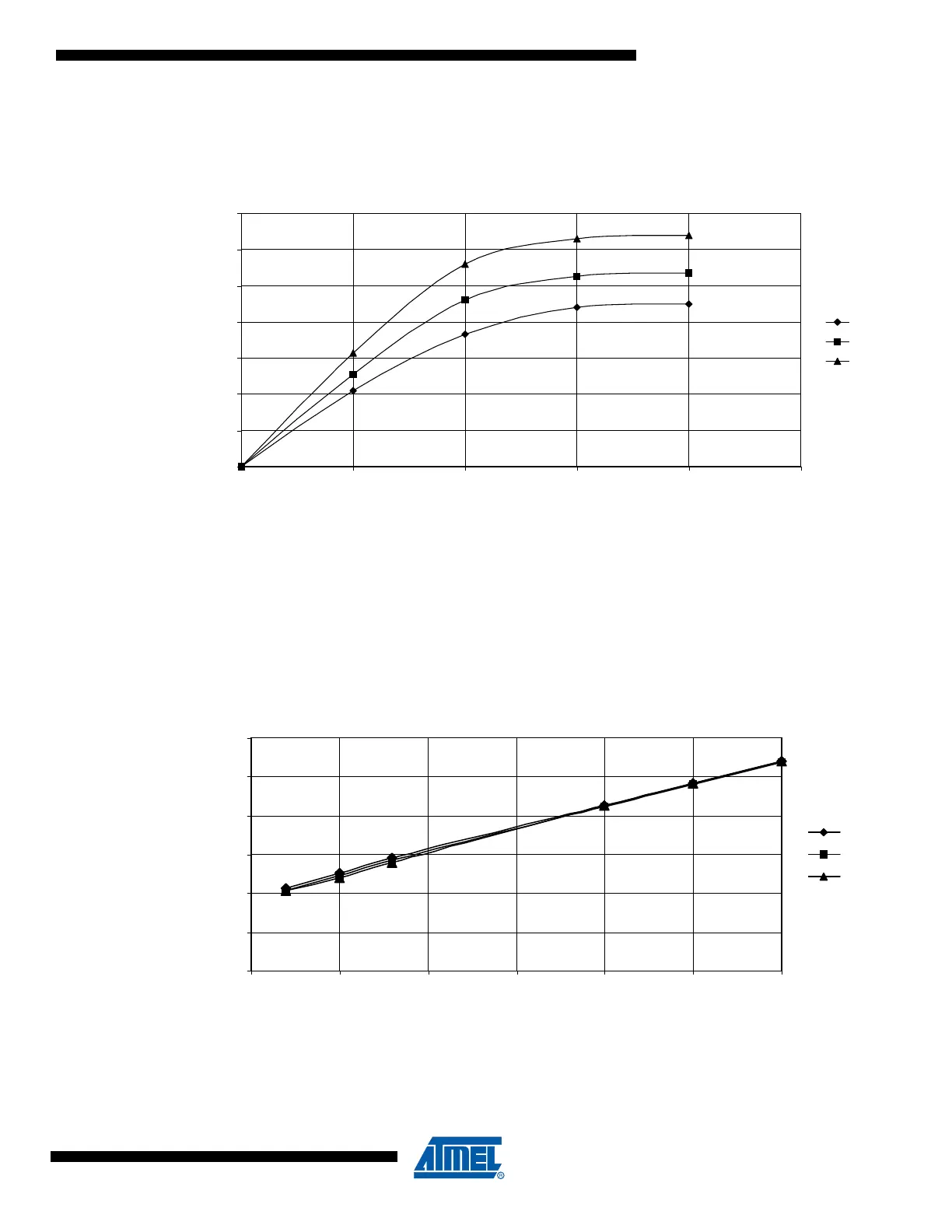

Figure 28-22. I/O Pin Sink Current vs. Output Voltage (Vcc = 2.7V)
28.8 Pin Thresholds and Hysteresis
Figure 28-23. I/O Input Threshold Voltage vs. Vcc (V
IH
, I/O Pin Read as “1”)
I/O PIN SINK CURRENT vs. OUTPUT VOLTAGE (Vcc = 2.7V)
0
5
10
15
20
25
30
35
0 0.5 1 1.5 2 2.5
V
OL
(V)
I
OL
(mA)
85°C
25°C
-40°C
I/O PIN INPUT THRESHOLD VOLTAGE vs. VCC (VIH, I/O PIN READ AS "1")
0.5
0.75
1
1.25
1.5
1.75
2
2.5 3 3.5 4 4.5 5 5.5
Vcc (V)
Threshold (V)
85°C
25°C
-40°C
