4.3.9 Headlamp suspension (option)
 For storing the headlamp.
 When the headlamp is suspended again, the cold-light
exit is switched off automatically.
4.3.8 Connection for warm-light
headlamp/
Nystagmus binoculars (option)
 After the switch (, Fig. 26) has been turned on, the
headlamp connection is ready for operation.
 The connector of theheadlamp,e.g.CLAR 55Art.
No. 502.0161.0, is plugged into the jack (
, Fig. 25)
(connection cable is included in standard delivery of this
option).
 When connecting nystagmus binoculars (cable available
as accessory, Art.No. 502.0141.6), the voltage is reduced
automatically (4V) even if you work with low voltage.
 Care must be taken to ensure that the connection
jack and the patient are not touched at the same time
when plugging and unplugging the warm-light head-
lamp!

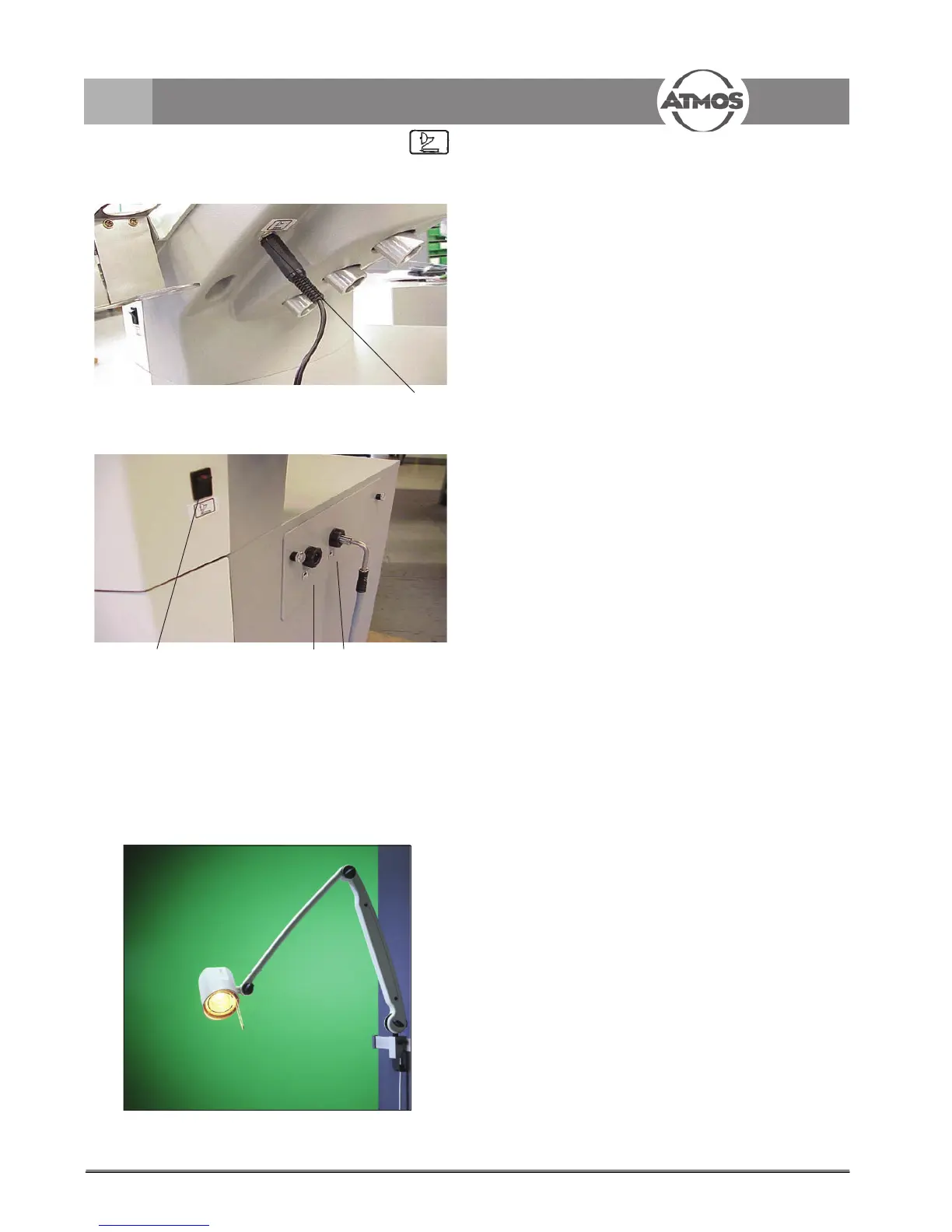

Fig. 25. Headlamp connection
 Jack
Fig. 26.  Switch for warm light
 Cold-light-connection 1
 Cold-light-connection 2

 
4.0 Operation
4.3.10 Counter-mirror lamp (option)
 Thecounter-mirrorlamp(g.27)canbemountedtothe
left side of the column.
 See separate operating instructions.
Fig. 27. Counter-mirror lamp
