7.0 Trouble-shooting
7.1 Electrical protection
 The supply line voltage reaches the individual components
via the main switch (
,g.1,page7).Thepowersupply
is secured by means of melting fuses on the rear of the
unit(g.40).
– no voltage to power plug
– fuse is defective
– power plug or cable is defective
• check fuse, connect other units (lamp)
to the socket, if necessary
• replace 10A fuse on the rear of the
unit
• check power plug or cable and
replace, if necessary
7.2 Power supply
Mirror is not warmed up with the
mirror quick heater
• check voltage by connecting other con-
suming devices
• replace heating coil (section 6.3)
7.3 Mirror heating
• have heating plate body replaced by a
service technician
• check voltage by connecting other con-
suming devices
– no voltage
– heating coil is defective
– heating plate body in the mirror
preheater plate is defective
– no voltage
Mirror preheater remains cold
Failure with
the Unit
Main switch is activated, no voltage
at the unit, no function, pilot lamps
do not light up
Failure with
the Unit
Before contacting the ATMOS Service, please check your unit acc. to the following charts.

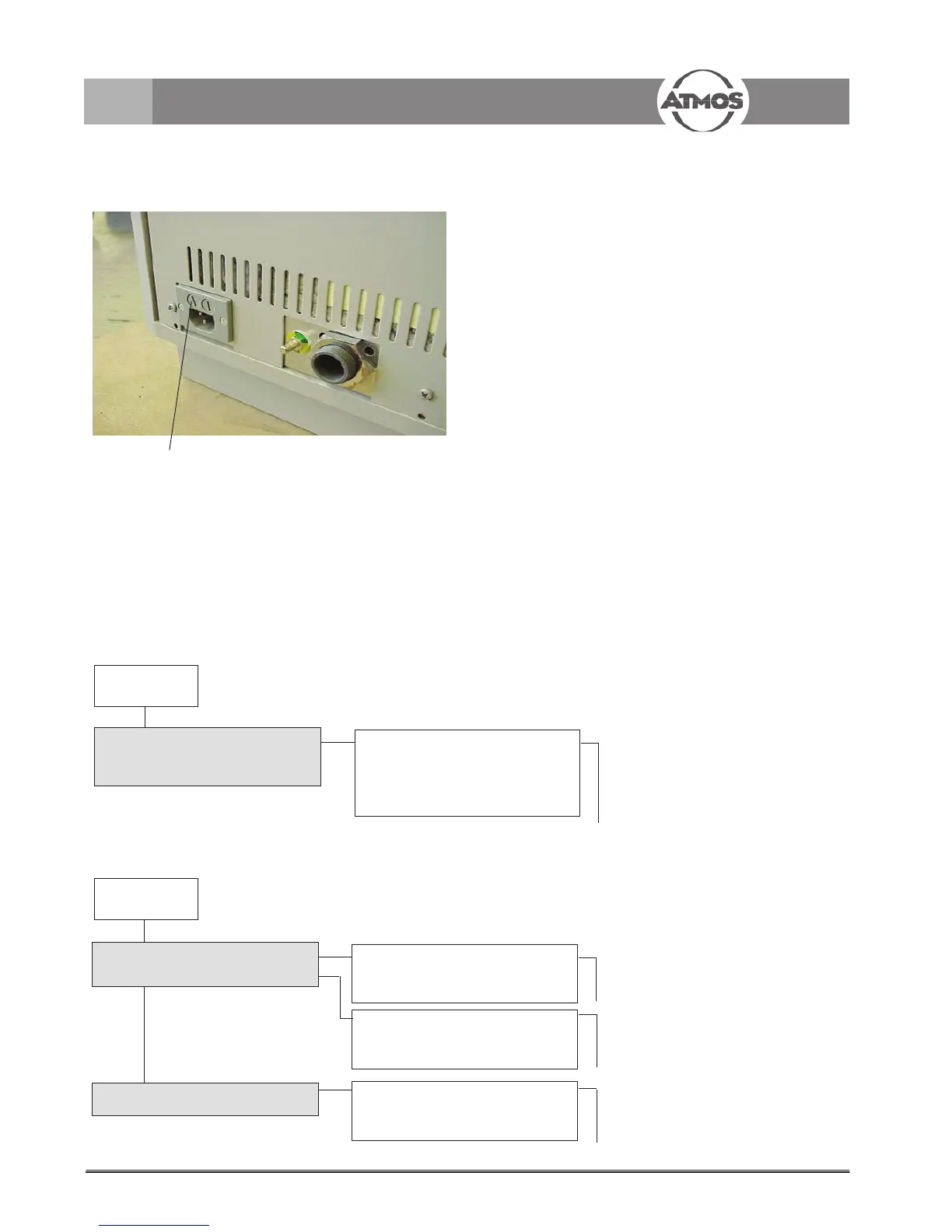

Fig. 40.  Fuse support

– Switch or control unit defect
• Call service to exchange the switch
or control unit.
