Atmos C 31 - Setting Up Proposal and Dimensions

9

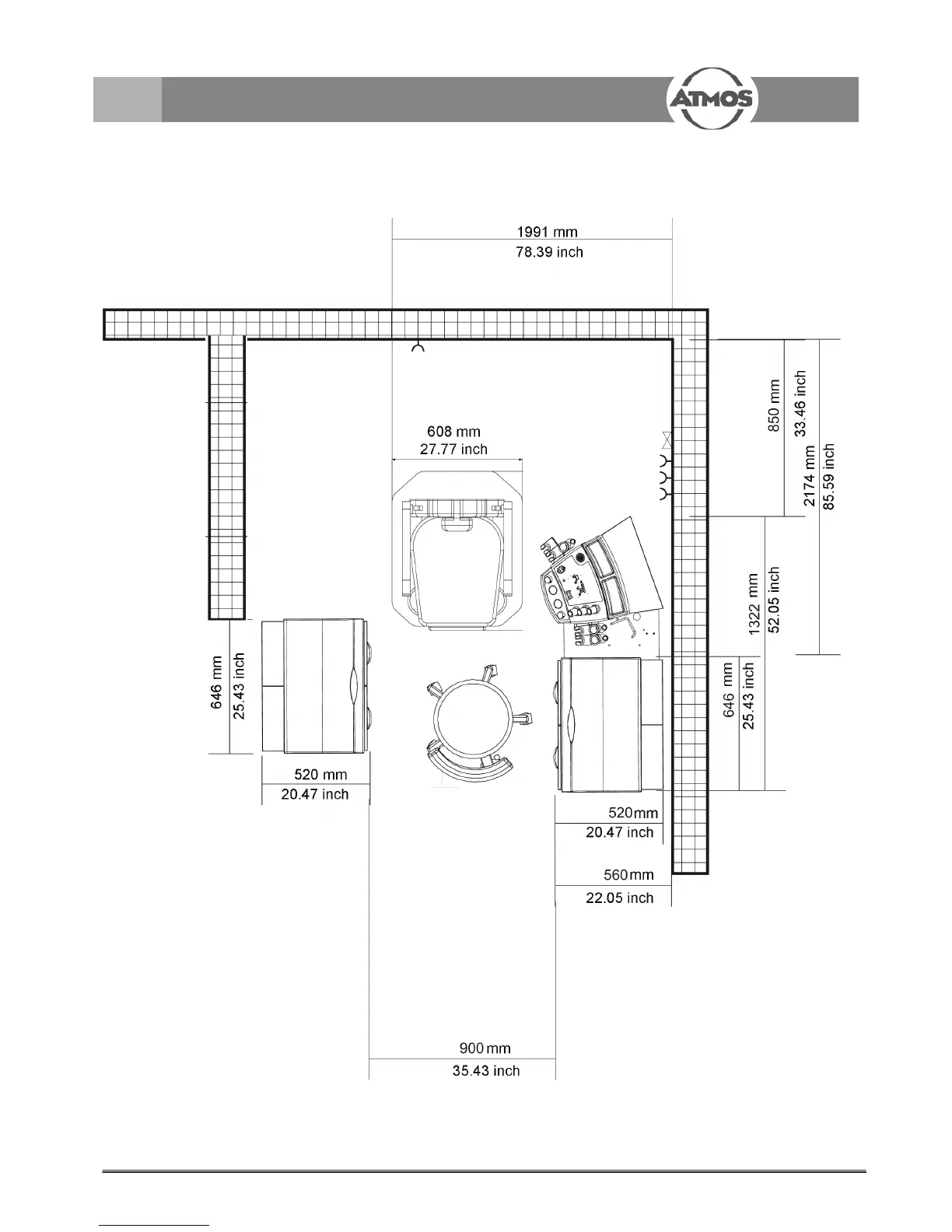

3.2 Setting up proposal
By the option 2 where the
instrument deposit is slidable
(backwards) an extra 250 mm
distance to the wall is required.
560 mm + 250 mm = 810 mm
22.5"+9.84"=31.84"
3.0 Installation and starting-up
