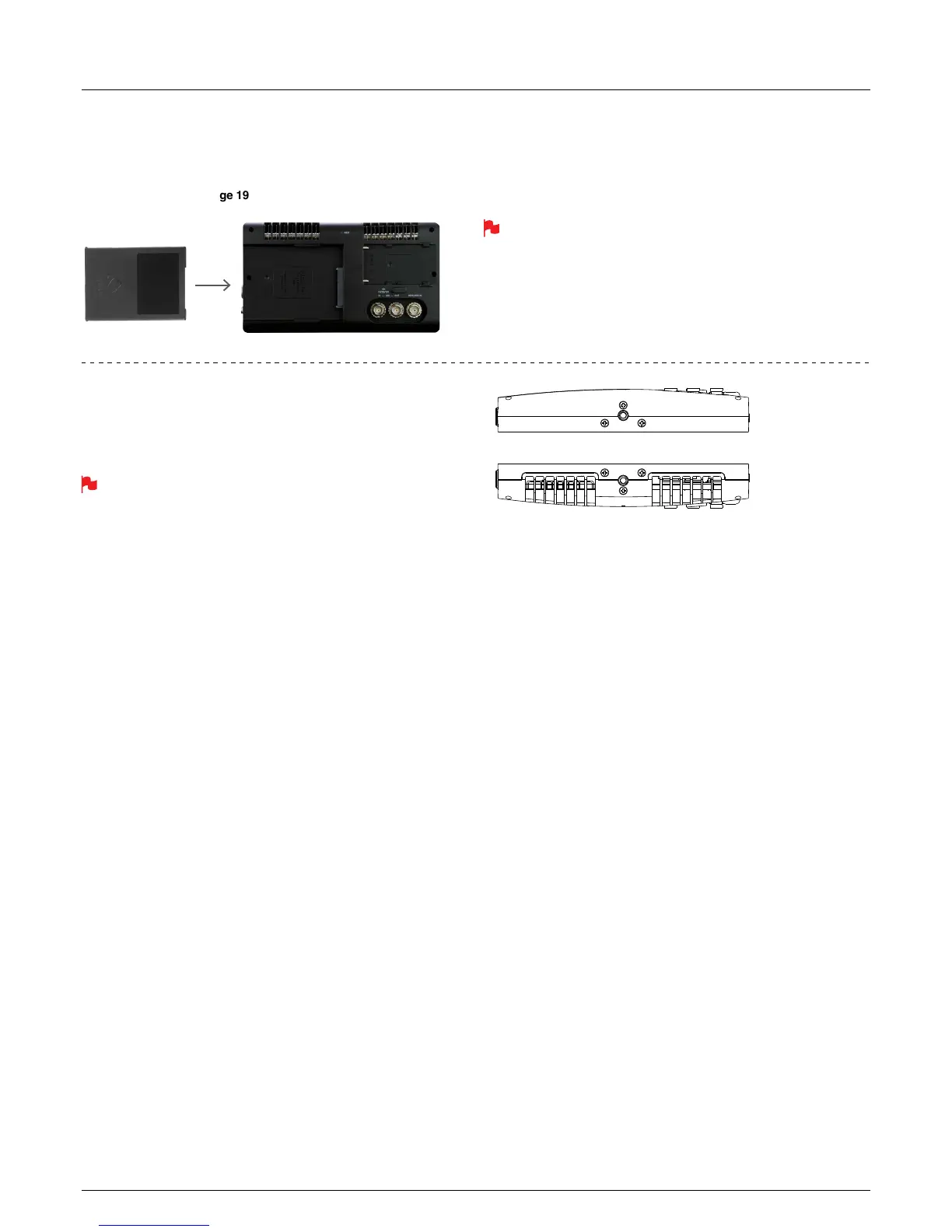

6. Master Caddy and Screw Mounts
Screw Mounts
TheShogunfeaturesstandardtripod¼”screwmountsonthetopand
bottomoftheunit,allowingyoutocongureyourrecordingsetupvarious
ways(¼”camcordermountnotincludedinShogunkit).
Ensure you do not over tighten the screw mounts as this may cause damage
REC
GENLOCK IN OUT SDI
(1.5G – 12G)
1/4” Screw mount top
REC
GENLOCK IN OUT SDI
(1.5G – 12G)
1/4” Screw mount base
Master Caddy II Slot
On the rear of the unit is a 2.5mm HDD slot for Shogun Master Disk Caddie
II’s. To insert a caddy, gently push until it clicks into position.
Formatting disks - see page 19
Master Caddy II - New 2 keyway system
The Master Caddy II is hot-swappable, so you can do this at any time –
even while the unit is turned on. But don’t do it while recording or you will
getacorruptedlethatmaybeunplayable.
The Shogun does NOT have a release latch - it is friction-t. Simply
pull the Master Caddy out using the top and bottom tabs on the caddy
itself.
Master Caddy II is backwards compatible with previous Atomos
recorders Master Caddy 1 is not compatible with Shogun as the
keyways are on one side only.

Atomos SHOGUN Specifications

General

Display resolution	1920 x 1200 pixels
HDD size	2.5 \
HDD interface	Serial ATA
Power consumption (typical)	20 W
Product color	Black

Weight and Dimensions

Weight	732 g
Dimensions (WxDxH)	196 x 47 x 110 mm
