Atomos SHOGUN User Manual

*Subject to change without notice Atomos Shogun – User Manual Edition 2: January 2016 41
SmartLogwithFCPX
PriortoimportingtheXMLlesintoFCPX,ensurethat:
• You have exported XML whilst the drive is in your Shogun
• You have connected your Master Caddy Docking Station and inserted
your Master Caddy into the Dock
• You are using an operating system that supports ExFAT
• Your QuickTime version is up to date
• FCP X is the latest version
Thereare2waystoimporttheXMLle:
1. Directly from the docked hard drive
2. Manually into FCP X
1. Automatic Import
• Open Finder
• Select the drive (in this example it is EXCVIDEO)
•Double-clicktheunitname.FCPXMLle
•ThiswillopenFCPXandimportthe.xmlle
FCP X will make a event of the disk name and reference all the footage
in that event.
You will notice that on the clips you have added Smart Tags too, with
Green and Red indicating Favorite and Reject.
You can sort these by using the pull-down menu to show favorites.
This will show all the individual favorites as separate clips in the
Event Viewer.

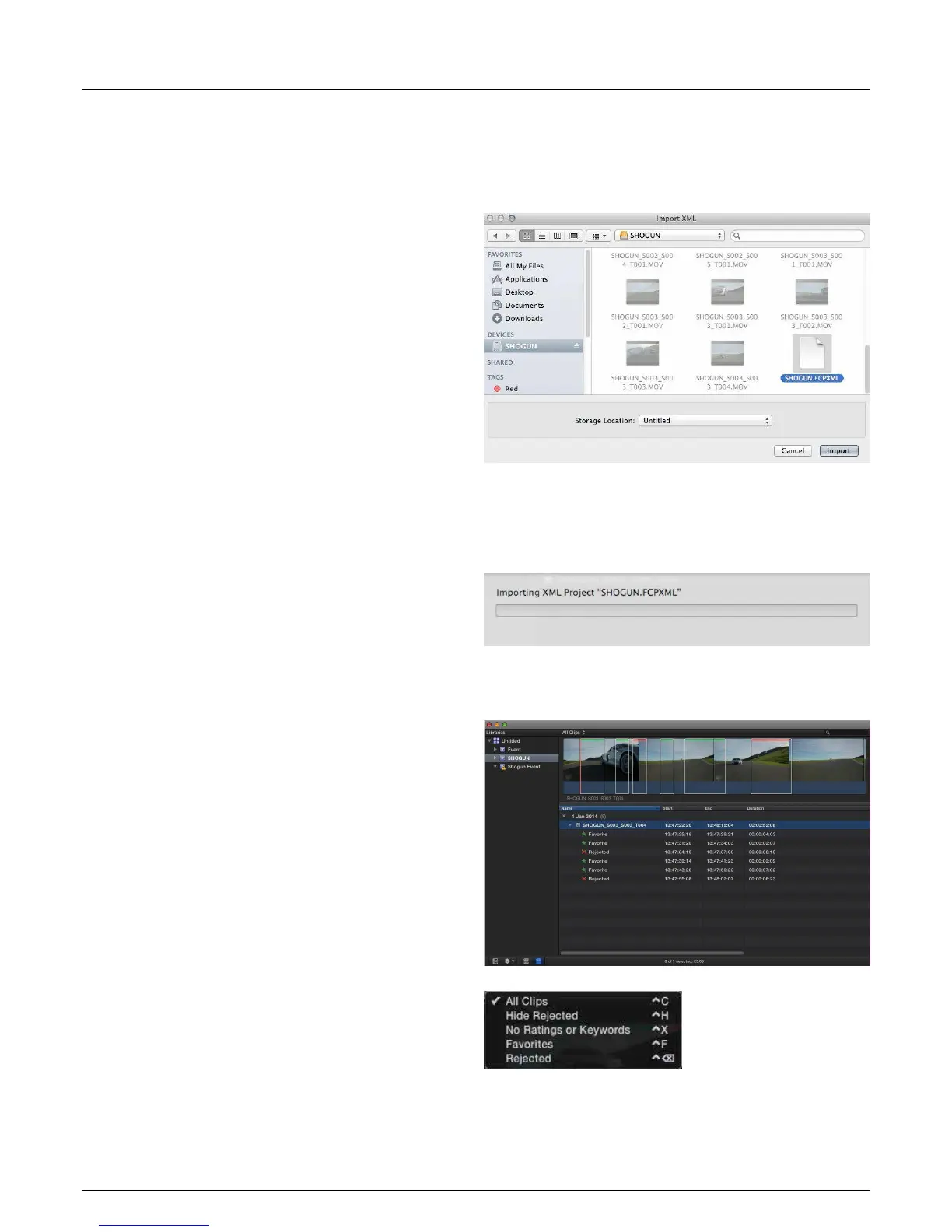

2. Manual
• Open FCP X
• Create a New Project (or you can use an existing project); in this
example it is called XML Import
• Select File, Import, XML
• Select the Shogun drive under Devices (in this example it is called
EXCVIDEO)
• Choose the unitname.FCPXML, select Import
TheXMLwillimport
Once imported you can expand the clip and you will see the Favorite and
Rejecttags.Youcanalsoltertheviewtoonlyseefavorite,etc.
13. Connecting and Editing cont.

Atomos SHOGUN Specifications

General

Display resolution	1920 x 1200 pixels
HDD size	2.5 \
HDD interface	Serial ATA
Power consumption (typical)	20 W
Product color	Black

Weight and Dimensions

Weight	732 g
Dimensions (WxDxH)	196 x 47 x 110 mm
