Atomos SHOGUN User Manual

*Subject to change without notice Atomos Shogun – User Manual Edition 2: January 2016 23

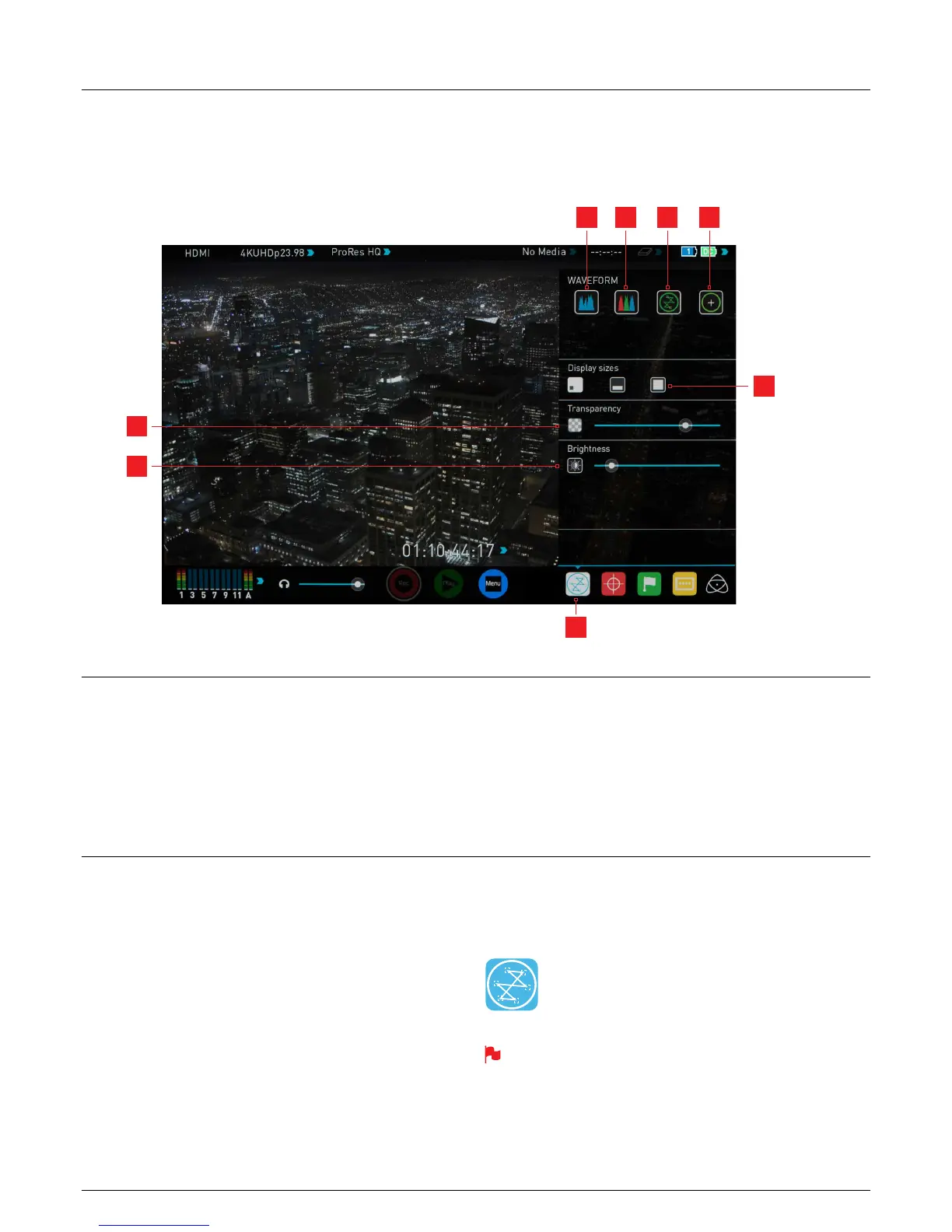

Waveform Monitoring
AtomOS6 has a newly improved Waveform Monitoring control panel which can be enabled with only a few button presses.
8. Monitoring and Recording cont.
1. Waveform Monitoring Menu
2. Luma Parade
3. RGB Parade
4. Vectorscope
5. Vectorscope Zoom
6. Waveform Size (1/4, 1/3 and Full Screen view)
7. Transparency
8. Waveform Brightness
What is Waveform Monitoring?
Waveform Monitoring is used for measuring the brightness, luminance or
chromavaluesfromavideoinputsignal.Thisfeaturehasseveralbenets
totheproductionworkowincluding:
• Ensuring camera to camera matching accuracy when
shooting multicam.
• Returning to locations for additional pick-up shots.
• Assisting with colour correction.
• Camera white and black balance
How to use
To enable the Waveform Monitor, press the Waveform Monitoring icon
on the home screen.
Waveform Monitoring icon
The Waveform Monitoring icon will only be visible if there is an input
signal detected.
2 3 4 5
1
6
7
8

Atomos SHOGUN Specifications

General

Display resolution	1920 x 1200 pixels
HDD size	2.5 \
HDD interface	Serial ATA
Power consumption (typical)	20 W
Product color	Black

Weight and Dimensions

Weight	732 g
Dimensions (WxDxH)	196 x 47 x 110 mm
