Atomos SHOGUN User Manual

*Subject to change without notice Atomos Shogun – User Manual Edition 2: January 2016 18

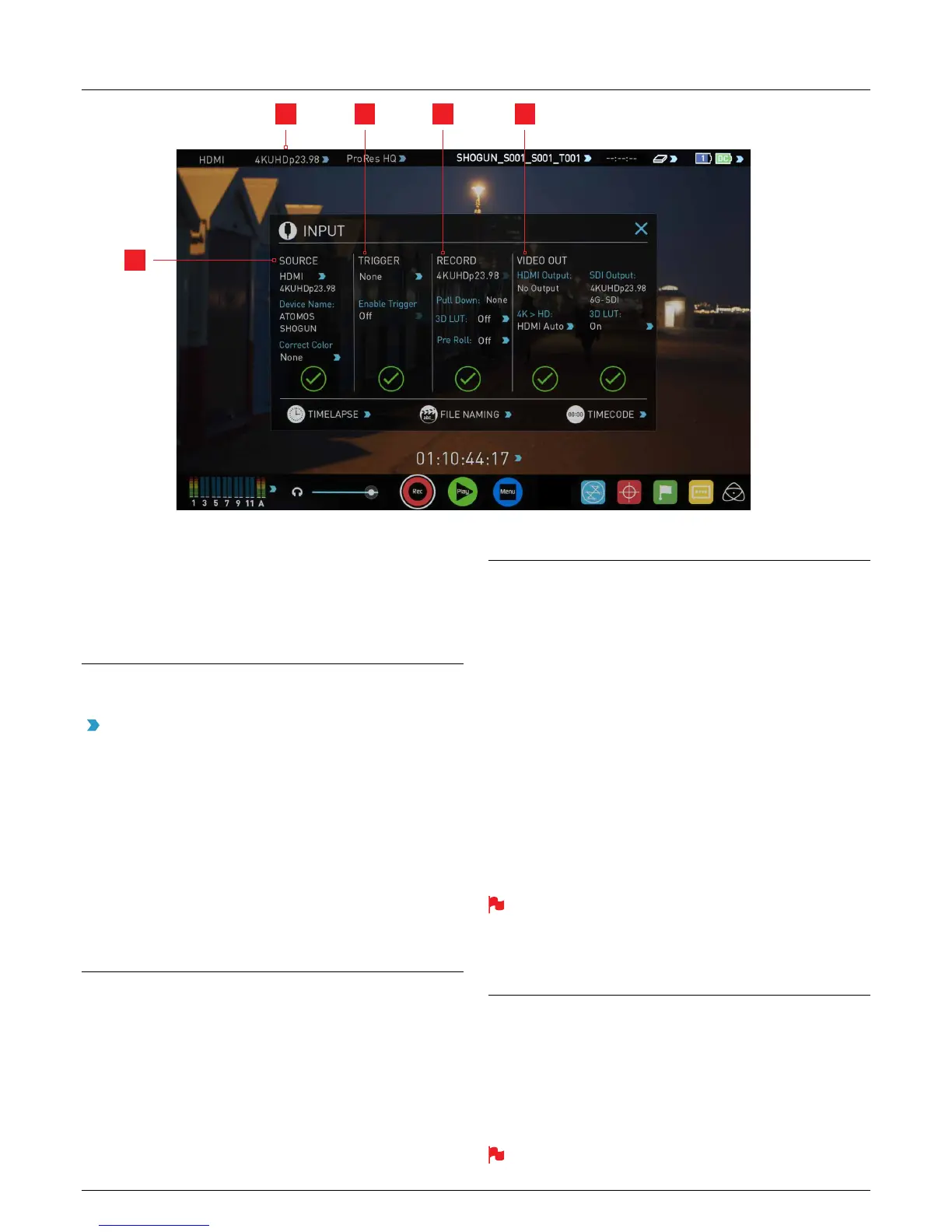

1. The Input Menu
Simply tap the source input menu to the top left of the screen to bring
up the input control panel. This panel will is a command centre for all
devices connected to the Shogun and will assist you with connectivity by
indicating if the signal is active or if attention is required.
2. Source
Displays the input source currently connected to the Shogun, simply tap
to toggle between HDMI & SDI/SDI RAW inputs. You can have both
HDMI and SDI inputs connected at the same time and use this menu to
toggle between active inputs.
The current input resolution of the selected input source is displayed.
HDMI Devices will display an EDID Device name if the information is
available from the HDMI device connected.
A green tick on Source indicates the Shogun has locked signal on this
input, a red cross indicates a signal or lock issue with the attached
device, double check your cable and camera output settings. There is
also an option to Correct Color input for use with Canon 5DMKIII that can
be applied to the input.
3. Trigger
The Shogun can be remotely triggered to record from your camera. Select
the correct triggering option for your camera and set Enable Trigger to
ON. Please refer to page 22 for more information.
4. Record
The record menu allows you to apply pulldown removal if recording from a
source that applies pulldown to the output signal. Note for 3:2 Pulldown
removal, movement in the frame may required to accurately lock signal,
simply wave your hand in front of the camera to achieve lock. See page
34 for more details on pulldown removal.
The 3D LUT option allows you the option to burn in your selected LUT to
therecordedle.Pleasebeawarethatthiswillpermanentlybakedinand
is non reversablereversible. When this option is selected a red LUT icon
willashinthetoprighthandcornerofthedisplay.Seepage29formore
details on 3D LUTs.
Pre-roll allows for you to cache the last few seconds of footage so if you
are late to hit record you won’t miss the action. When this option is
selecteditwillshowaroundarrowontherecordbuttonandashared
Pre Roll icon in the top right hand corner of the display.
As Pre Roll is always cache recording once activated a number of
features that are related to record settings will be locked. These
include audio record channel select, 3D LUT record, Codec selection
and Drive naming.
5.VideoOut
This menu displays the active video format being output from both HDMI
and SDI outputs. A 4k to HD down conversion can be applied to the
output. This enables you to send a 4k input signal to a HD device. 3D
LUTs can also be applied to the output indepentantly of the Shogun
screen. This can be useful if you wish to monitor log footage on the Studio
and show a graded image on an external display
Any selections in this option apply to both HDMI and SDI outputs.
2
4 531
7. Using the Shogun cont.

Atomos SHOGUN Specifications

General

Display resolution	1920 x 1200 pixels
HDD size	2.5 \
HDD interface	Serial ATA
Power consumption (typical)	20 W
Product color	Black

Weight and Dimensions

Weight	732 g
Dimensions (WxDxH)	196 x 47 x 110 mm
