Atomos SHOGUN User Manual

*Subject to change without notice Atomos Shogun – User Manual Edition 2: January 2016 14

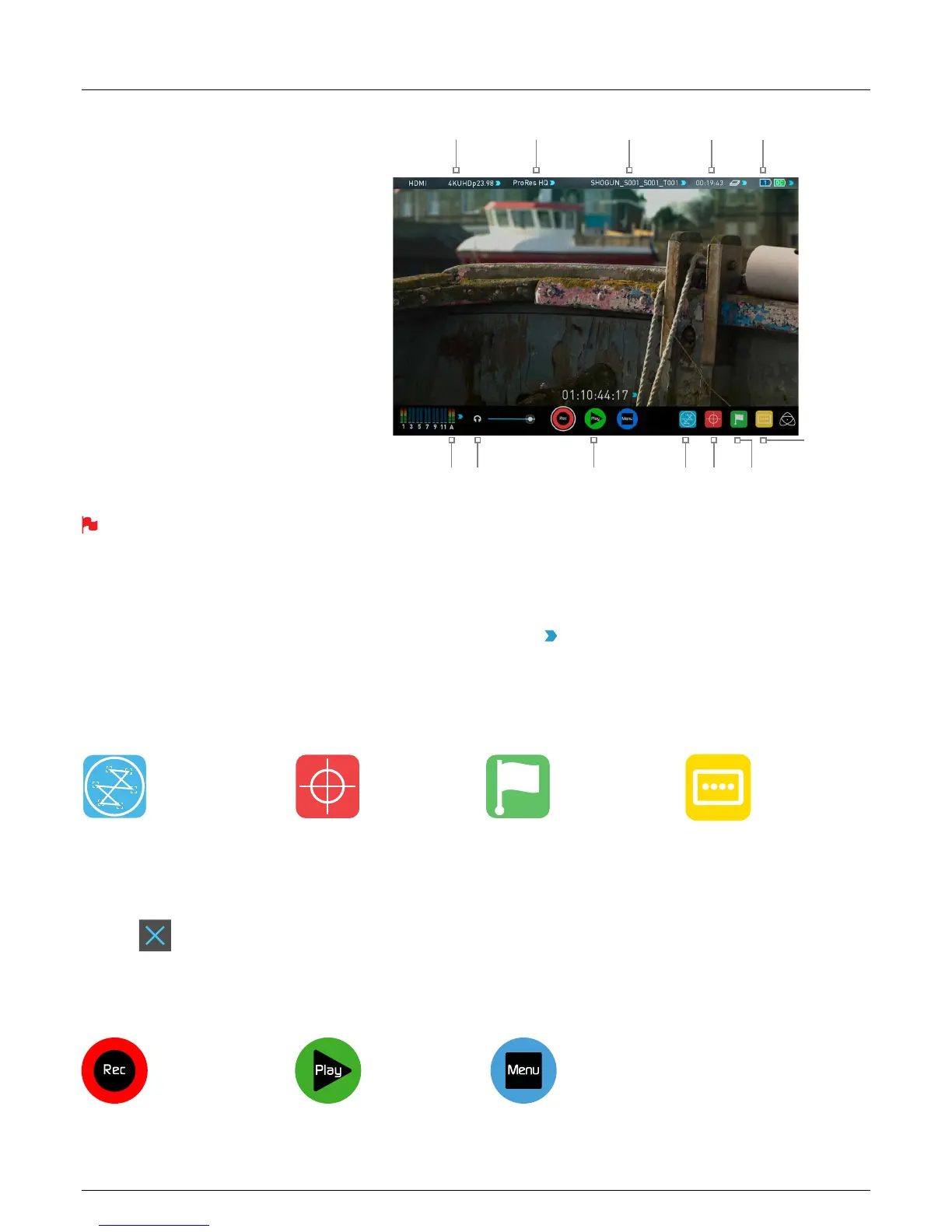

The Shogun is controlled via an intuitive
touchscreen interface. Icons and buttons have
beendesignedandlaidoutinaspecicwayto
ensure operation is simple and fast.
Thehighdenition1920x1200HomeScreen
displays all necessary technical and functional
information.
The menu on the bottom of the screen is 120px
allowing a full uncluttered 1920x1080 image to
be visible on screen. Everything important for
operation and adjustment is no more than one
touch away. Here is how it works:
1 Category 1 – Operating Settings
This list of real-time operating settings can be adjusted or toggled when a BLUE ARROW
is present. If the Blue arrow is disabled,
the setting cannot be adjusted.
2 Category 2 – Shot Setup & Monitor Assist Tools
This list represents the icons and functions available for Shot Setup and Monitor Assist Tools:
Touch these icons to reveal more functional options in a sub-category. Touch the sub category icons to toggle the functions on or off.
When a Shot Setup or Monitor Assist function is active, detailed settings for each Shot Setup tool are also available from this panel.
Touch the
icon to go back to the Home Screen at any time.
3 Category 3 – Main Controls REC, PLAY & MENU
The Main Controls of the unit are indicated by large round icons.
7. Using the Shogun
Touching the center of the screen at any time removes the top interface overlay, tapping again clears the bottom controls and a third
tap brings all the options back up. Active Shot Setup or Monitor assist functions that are enabled will remain active when the menu
system is cleared. This is to allow you to use the Shot Setup and Monitor assist functions at all times while shooting.
3D LUTs / Display
Options
Audio Channels
To enable recording
See page 15
For instant playback and review
See page 15
To make settings changes
See page 15
Waveform Monitoring Functions
See page 23
Monitor Assist Functions
See page 25
Smart Log Cut and Tagging
See page 28
3D LUTs and Display Options
See page 29
Video Input Format and
Pulldown Status
Recording
Quality
File Name Recording Time
Remaining
Continuous Power
Indicator
Headphone
Line Out Volume
Rec/Play/Menu Waveform
Monitoring
Monitor
Assist
Cut and Tag
Favorite / Reject

Atomos SHOGUN Specifications

General

Display resolution	1920 x 1200 pixels
HDD size	2.5 \
HDD interface	Serial ATA
Power consumption (typical)	20 W
Product color	Black

Weight and Dimensions

Weight	732 g
Dimensions (WxDxH)	196 x 47 x 110 mm
