*Subject to change without notice Atomos Shogun – User Manual Edition 2: January 2016 17

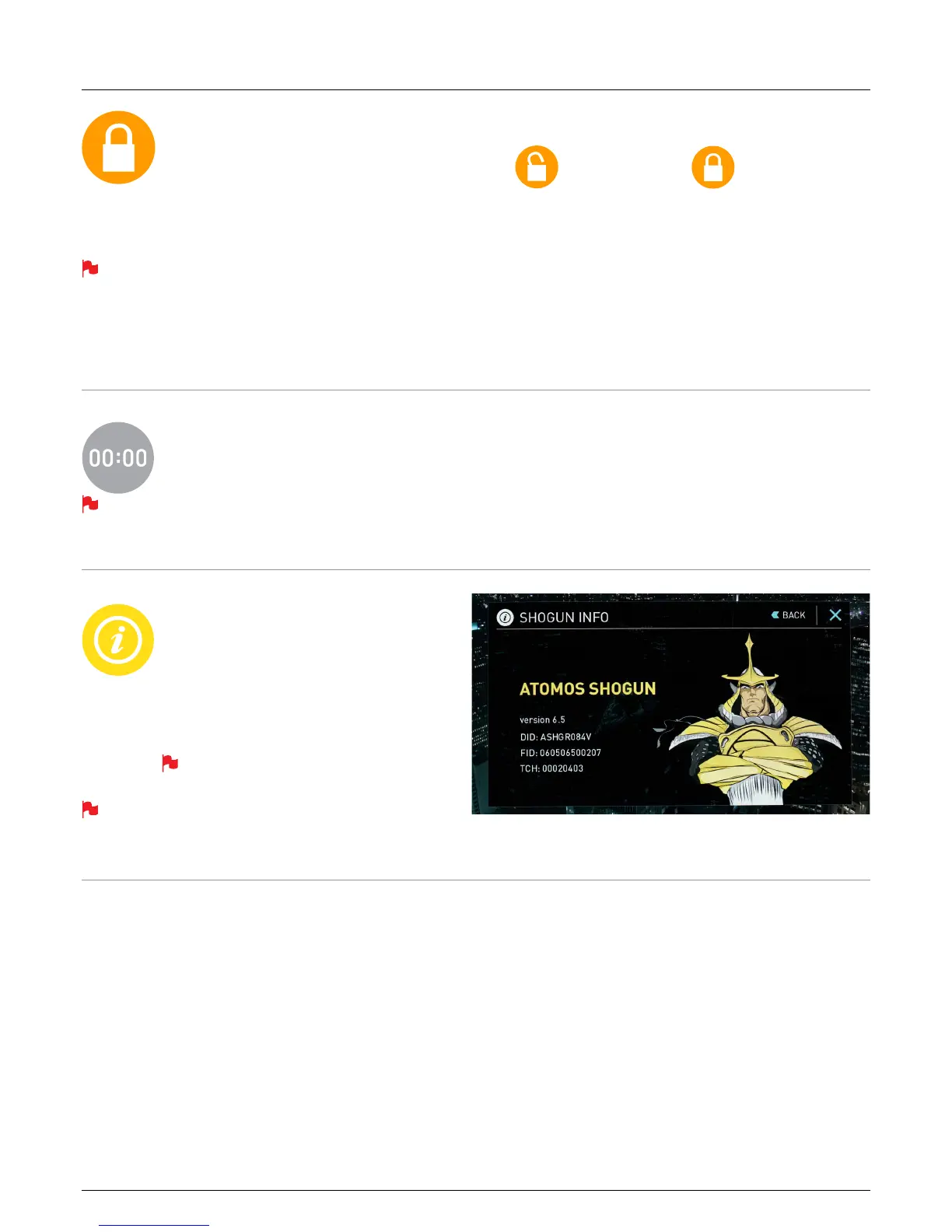

Lock the Display Screen
You can lock the display of the Shogun so that no
changes can be made by mistakenly touching the
screen, to lock the Shogun simply short tap the power
button. The screen lock function will simultaneously lock
or unlock both Channels of the Shogun.
Short tap the power button again to unlock the unit.
The lock screen can be combined with the display off function so
that when lock is engaged the display is turned off. The Tally light on
the front of the unit will still display Rec (Red) or idle (green) status.
Locking of the display can be found in the Display menu.
Timecode
TakesyoutothededicatedTimecodecongurationpage.
Refer to Page 32 of this manual for more information.
Shogun Info
Showsthesoftware(rmware)versionanduniquedevice
ID (DID) of your Shogun device. This will be required to
activate the Avid DNxHD / Avid DNxHR codec. You can
also check on the Atomos website to ensure you are
runningthelatestrmware:
http://www.atomos.com/support
Remember that pressing on the Back button will
always take you back to the previous menu.
Both Channels of the Shogun are activated using a single code and
this needs to be entered via Channel 1.
7. Using the Shogun cont.
UNLOCKED
LOCKED
UNLOCKED
LOCKED
UNLOCKED
LOCKED

Atomos SHOGUN Specifications

General

Display resolution	1920 x 1200 pixels
HDD size	2.5 \
HDD interface	Serial ATA
Power consumption (typical)	20 W
Product color	Black

Weight and Dimensions

Weight	732 g
Dimensions (WxDxH)	196 x 47 x 110 mm
