SPEAKER OUTPUTS
Follow the procedures outlined in the previous section to connect the Speaker Outputs to
the Room 1 and Room 2 speakers. Make sure to match the impedance of the speakers and
ampli ers as noted.
1
Room 1
Room 2
DLA2/4/6

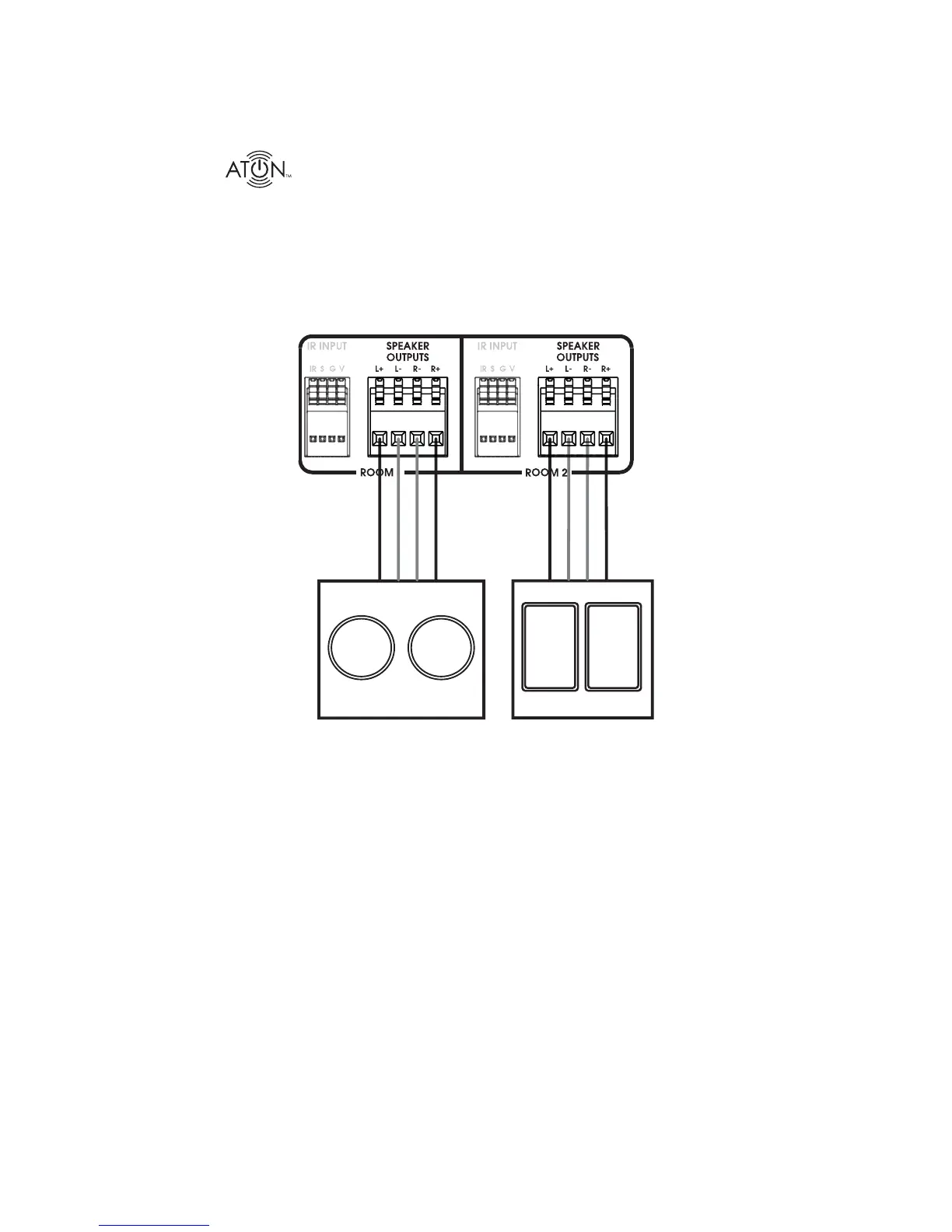

Figure 3-2: DLA2/4/6 Speaker Outputs to Room Speakers
