DLA2/4/6 Speaker Level Audio Router

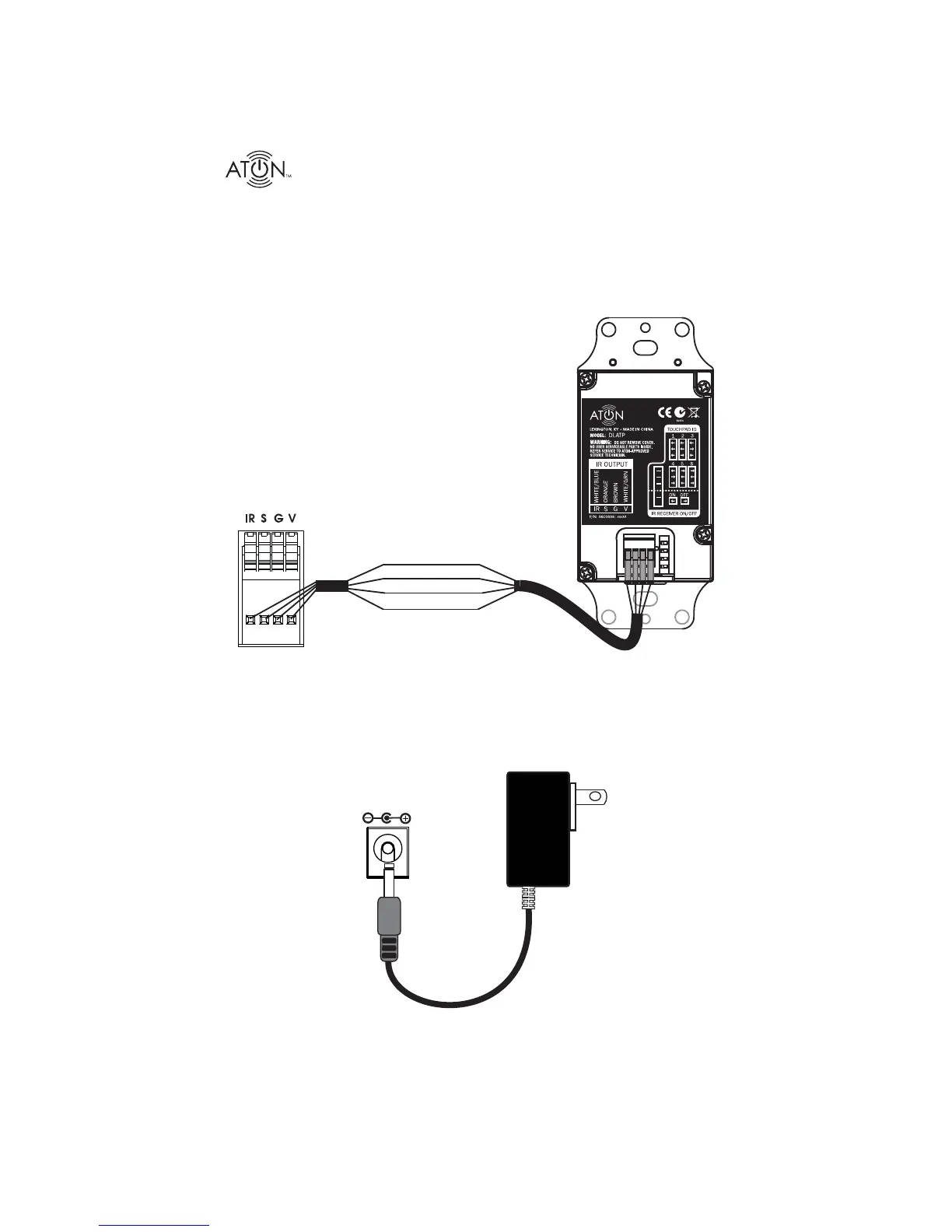

DLA Touchpad (DLATP) Connections
Connect a DLATP using Cat-5 cable to any Room IR Input to control volume, mute and room/
system power for an individual room. The DLATP also provides Room and Sense Input status
and includes a built-in IR receiver.
IR Input
Wh/Green (+12V)
Brown (G)
Wh/Blue (IR)
Cat-5
DLATP Rear
Orange (Sense)
Figure 3-5: DLATP Connections
PWR IN Connection
Connect the included 12VDC/2.1A power supply to the PWR IN port.
PWR IN
12VDC/2.1A
PS3
12VDC
POWER
SUPPLY
DLA2/4/6
Figure 3-6: PWR IN Connector
