© 2008 • All rights reserved. 37
DLA2/4/6 Speaker Level Audio Router
Appendix D: REKT Rack Ear Kit (Optional)
Use the optional REKT Rack Ear Kit to mount the DLA4 or DLA6 into a standard equipment
rack. The DLA2 is NOT compatible with the rack ear Kit. Simply use the included screws to at-
tach each rack ear to the side of the DLA4 or DLA6 as shown in Figure D-1. Use Rack screws
(not included) to attach the assembled unit to the equipment rack as shown in Figure D-2.

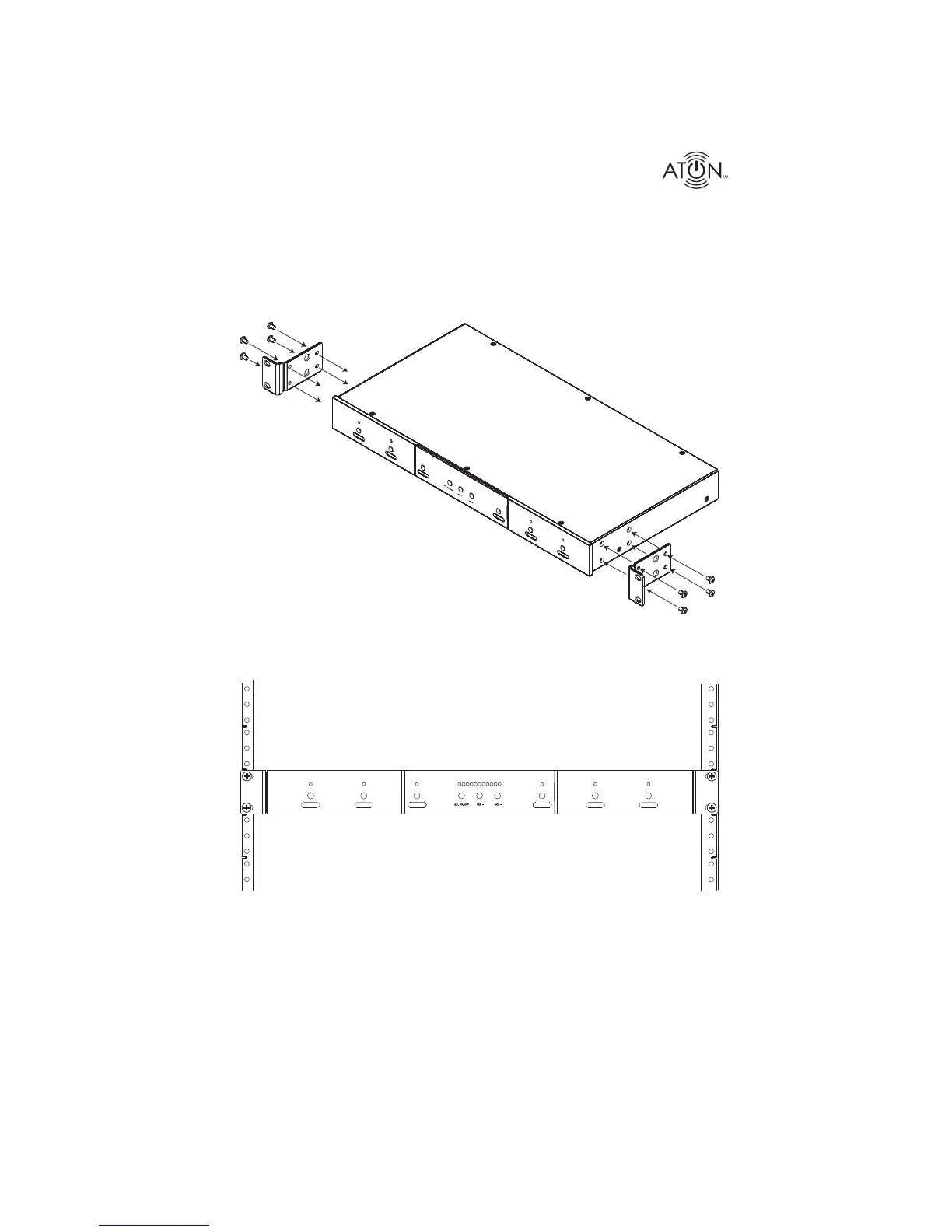

Figure D-1: REKT Rack Ear Kit-Mounting Rack Ears to Unit
Figure D-2: REKT Rack Ear Kit-Mounting Unit to Rack
