Rear Panel
The Rear Panel of the DLA2/4/6 has connections for Power, Ampli er Input, Sense Inputs,
page/Doorbell Trigger Inputs, the RF Receiver (ATON Port), IR Emitter Outputs, IR receiver Inputs

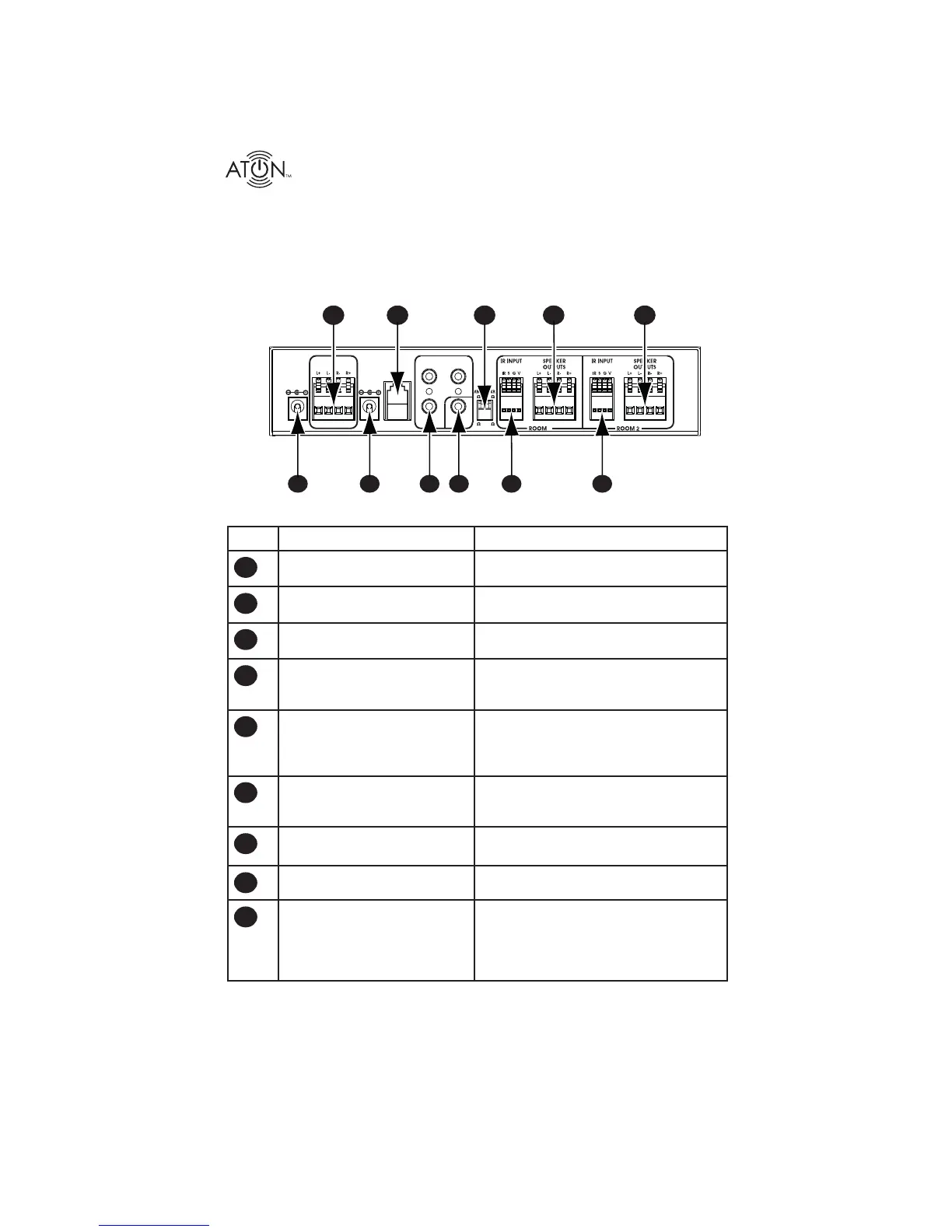

and Speaker Outputs. Figure 1-3 and Table 1-2 provide description and location of Rear Panel
connections.
IR EMITTER OUTPUTS
IMPEDANCE
MATCH
RF
INPUT
PATE NT
PENDING
PWR IN
12VDC / 2.1A
SENSE
INPUT
9VDC / 100mA
8
8
4 4
AMPLIFIER
IP
1
PA E
RI I
6
67
8
9
1 2 4
3
5 5
DLA2
CLASS 2 WIRING
Figure 1-3 : DLA2/4/6 Rear Panel
Connector Function
1
12 VDC Power Connector
Connector for +12VDC/2.1A (PS3) Power
Transformer
2
Sense Input Connector
Connector for optional +12 VDC/200mA
(PS2) Sense Status Power Transformer
3
IR Emitter Outputs
3.5mm Mono Mini Jack Connectors for Use
With ATON IR Emitters
4
Page/DB Trigger
3.5 mm. Stereo Mini-Jack Connector for use
with ELAN Communication Controllers or
equivalent
5
IR Receiver Inputs
Flip Lock Connectors for IR receivers or DLA
Touchpads. IR receivers allow for individual
room control or system-wide control using
DLA discrete IR codes.*
6
Speaker Outputs
4-position Fliplock Connectors for 16
Gauge, 4 Conductor (16/4 AWG) Speaker
Leads to Room Speakers
7
Impedance Match DIP
Switches
Select The Impedance Value Of the Ampli-
 er And Speakers, 4 Or 8 Ohms
8
ATON Port
Connects to Optional RF Receiver
9
Ampli er/Receiver Input
4-position Fliplock Connector for 16 Gauge,
4 Conductor (16/4 AWG) Speaker Leads
From Ampli er or A/V Receiver Speaker
Outputs
• 125 Watts per Channel Max
Table 1-2: Rear Panel Connectors
* IR codes available for download at: www.atonhome.com. See Appendix C-3.
