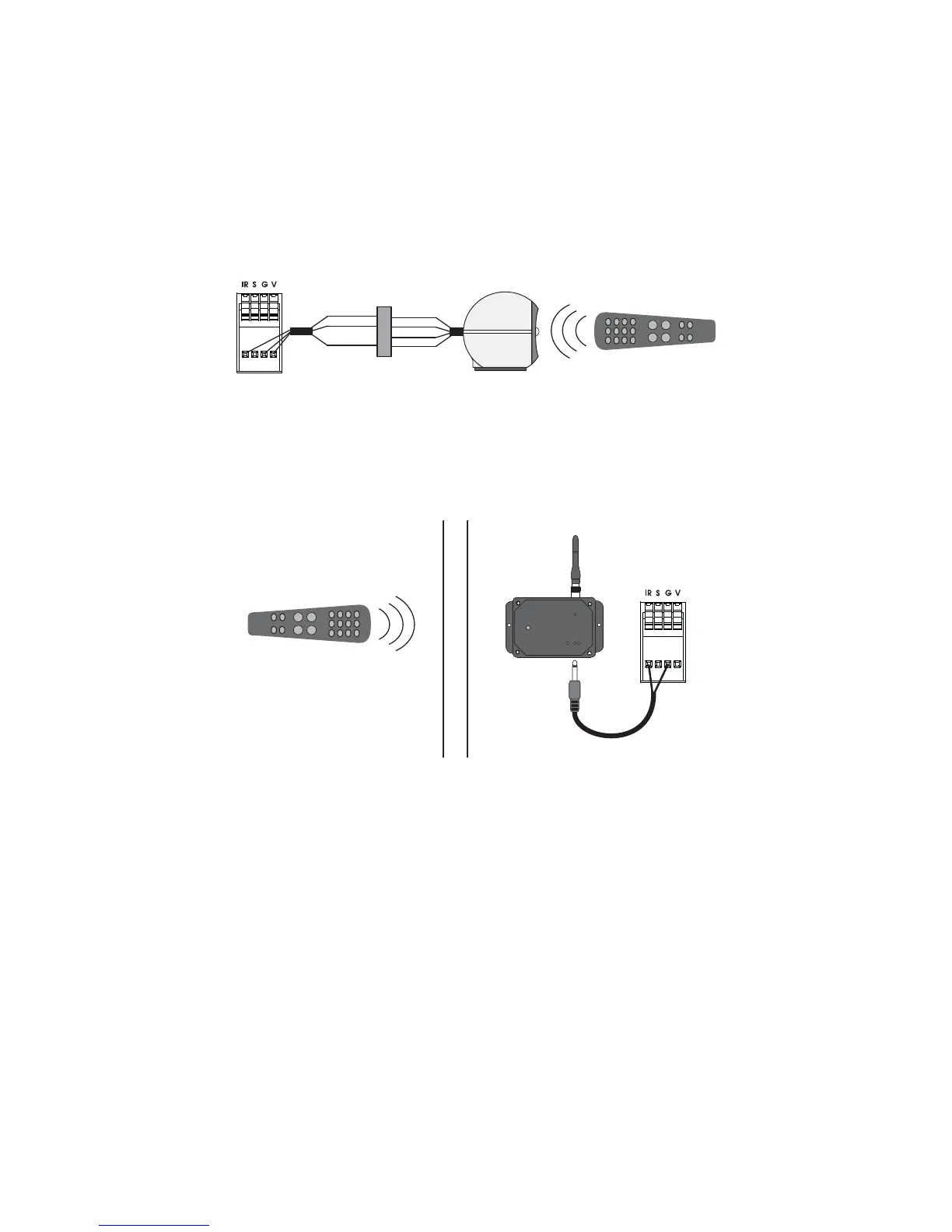

Universal/Learning Remote Control Using an IR Receiver
Connect an IR receiver such as an ATON AIR5 to a Room IR Input as shown below to control any
or all rooms from a single location.
IR Input
Splice to Cat-5 Wire
Red (+12V)
Black (G)
Yellow (N/C)
White (IR)
Wh/Gr (+12V)
Brown (G)
Wh/Bl (IR)
Cat-5
AIR5
Universal/Learning
IR Remote Control
Figure C-7: Universal Remote w/ IR Receiver
Universal/Learning Remote Control Using an RF-to-IR
Base Station
Connect a third party RF-to-IR base station to any one Room IR Input to control any or all rooms
from any location in the house.
PWR
USB
STATUS
RF DATA
+12VDC
GND
SIGNAL
SENSE
3.5mm
Mono
Interconnect
Cable
RF-to-IR
Converter
DLA2/4/6
IR Input
Universal/Learning
IR Remote Control
W
A
L
L
Figure C-8: Universal Remote w/ RF to IR Converter
