Section 3 Steering Operation System

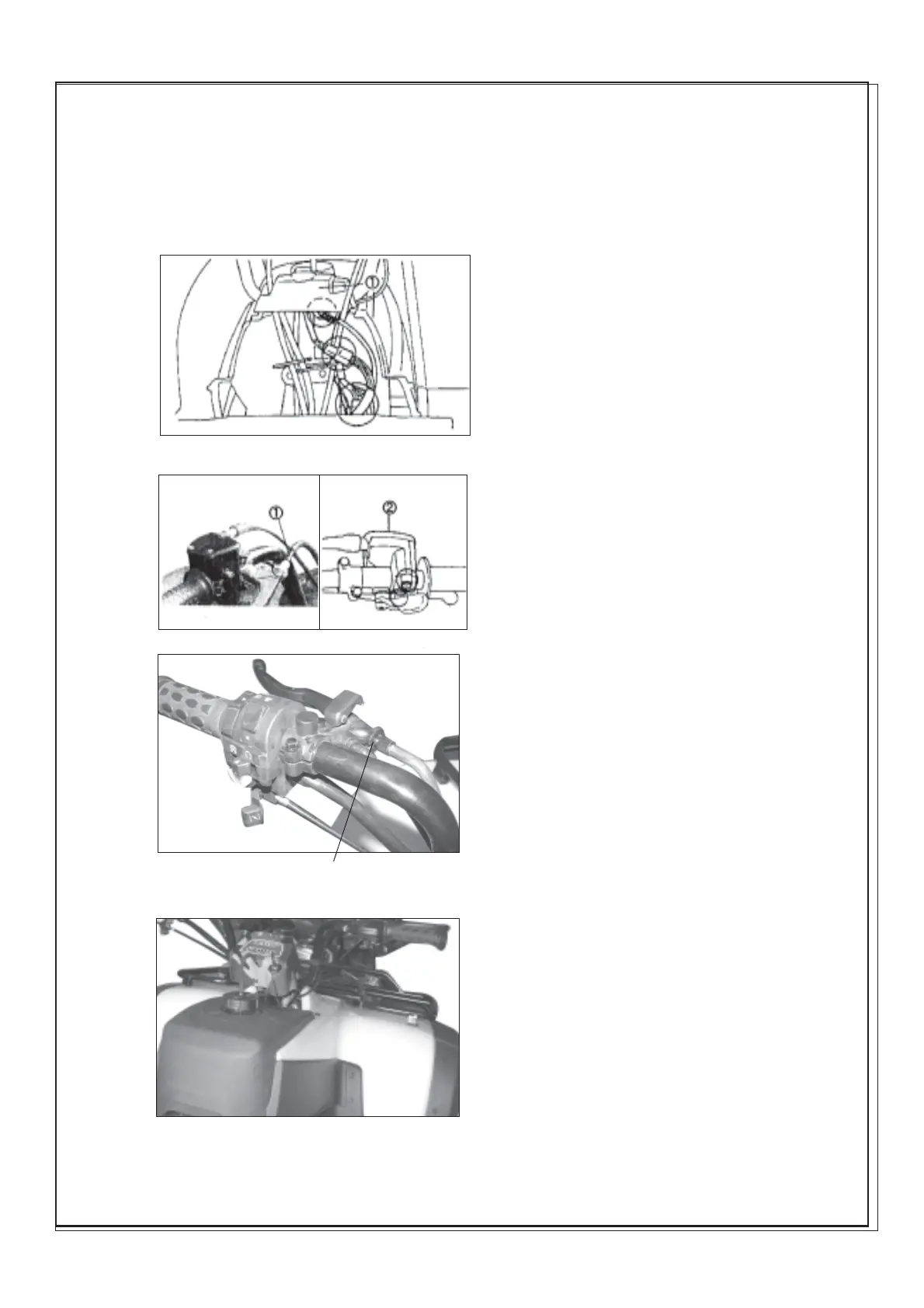

(I)Removal steps of steering bar

1.Removal

Front luggage carrier

Bumper

Front fender

Refer to chapterTwo.Section Two

2.Removal

Main switch lock wire

“Neutral”indicating light wire

“Reverse”indicating light wire

“High beam”indicating light wire

Clutch switch wire

3.Removal

¢ÙFront brake cable

Remvoal

¢ÚThrottle grip assy

5.Removal

After stopping the vehicle, remove the rear

brake cable

¢Ù

6.Removal

¢ÙSteering bar pipe

¢ÚLower holder of steering bar

¢Ù

-94-
