4. Applying
¡¤Seal agent ¢Ù

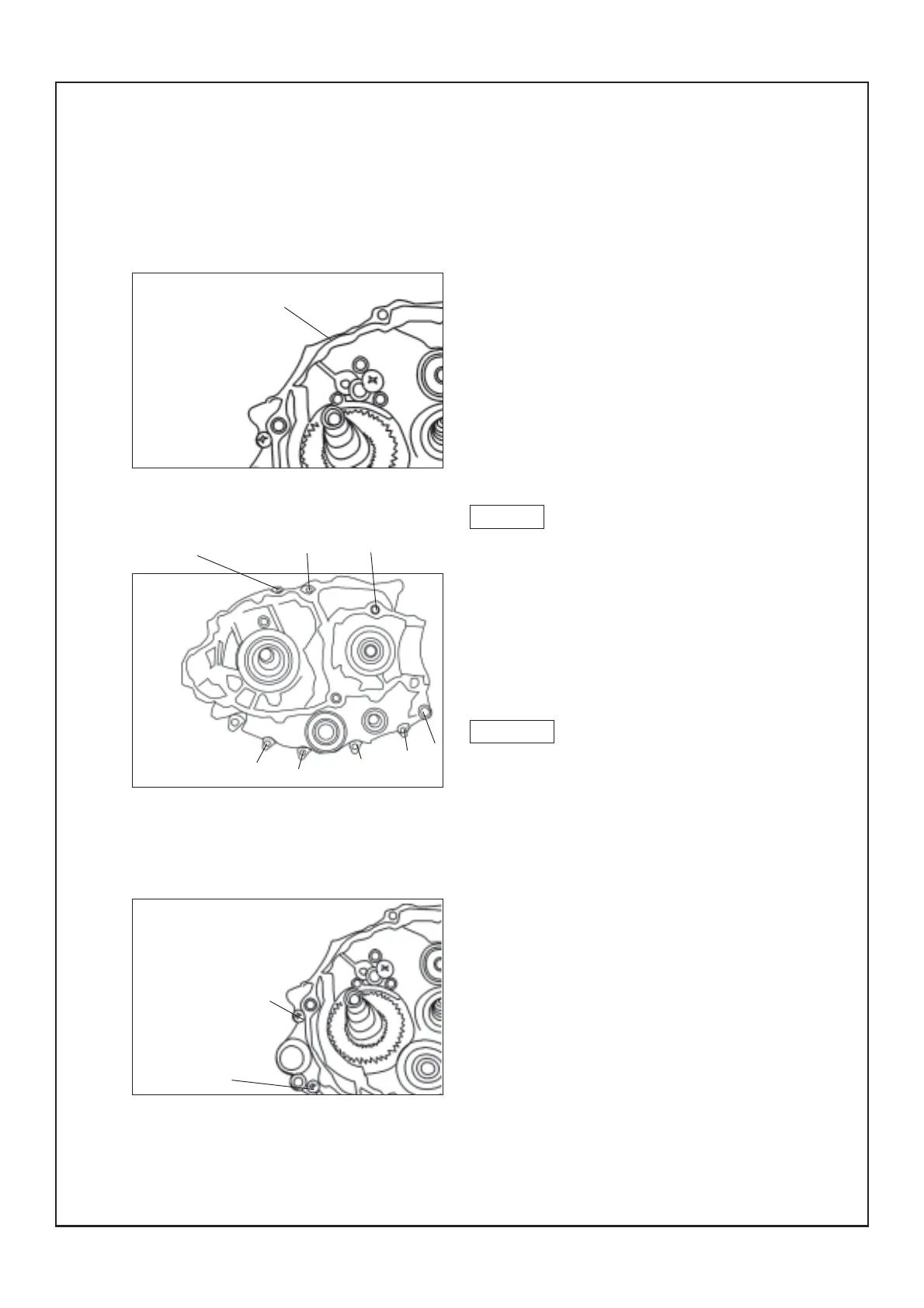

Apply the seal agent on the closing surface of
left crankcase.
Seal agent: Letai 518 anaerobic plane seal glue.
5. Installment:
¡¤Location pin ¢Ù
6. Install the left crankcase to the right cankcase.
Beat with soft hammer slightly.
Before installing the clossing screw, be sure to
rotate shaft at random direction so as to check
if the function of shifting mechanism is normal.
Caution
7. Tighten up
Screw (crankcase)
Tighten up the screw as the order shown on the
drawing.
8. Appling oil
¡¤4-stroke engine oil
Applying to the bearing and oil hole
9. Inspection:
¡¤Operation of crankshaft and shift mechanism
Not active replace
Caution
Applying seal agent
11
10
7
2
6
3
9
5
8
1
-184-
(II) Assembly of right crankcase
