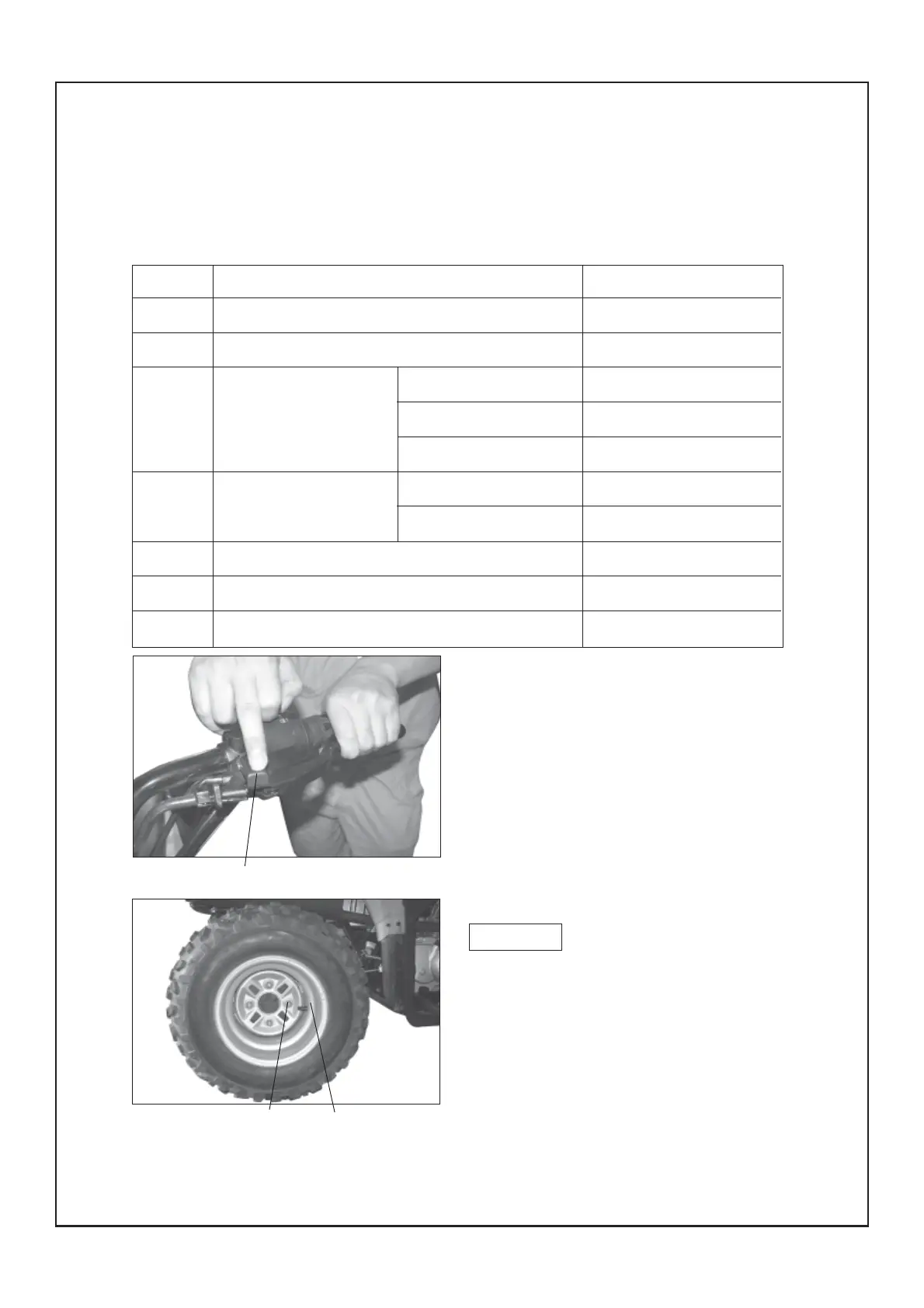

ATV 250 - Section 2 Front Wheel and Front Brake; (I) Disassembly

Section 2 Front wheel and Front Brake
Technical Parameter
Ser No.
1
2
3
4
5
6
7
Item
Parameter
AT22¡Á7-10
5.5¡Á10
20KPa(Standard value)
17KPa(Min vlaue)
23KPa(Max value)
2mm
2mm
2mm
2mm
16mm
Tire specification
Rim dimension
Run-out
Tire air pressure(normal
temperature)
Tire wear limit value
Wear limit value of friction wafer
Wear limit value of front brake hub
Standard value
Min value
Max value
Radia run-out
End face run-act
(I)Disassembly
1)Pay attention to following points when dis-
assembling front wheels
a:Place the vehicle on a horizontal ground, and
press down the rear brake attaching clamp¢Ù.
b.Loosen the connecting nut¢Ùof front &rear
wheel on the front wheel.
c:Place a bracket under the frame to pick up
the front wheels.
Support the vehicle firmly and avoid dropping
down.
2)Disassemble the connecting nut ¢Ùof front
&rear wheel.
Warning
¢Ù
¢Ù ¢Ú
-76-
