Section Five Maintainace and Adjustment of Engine

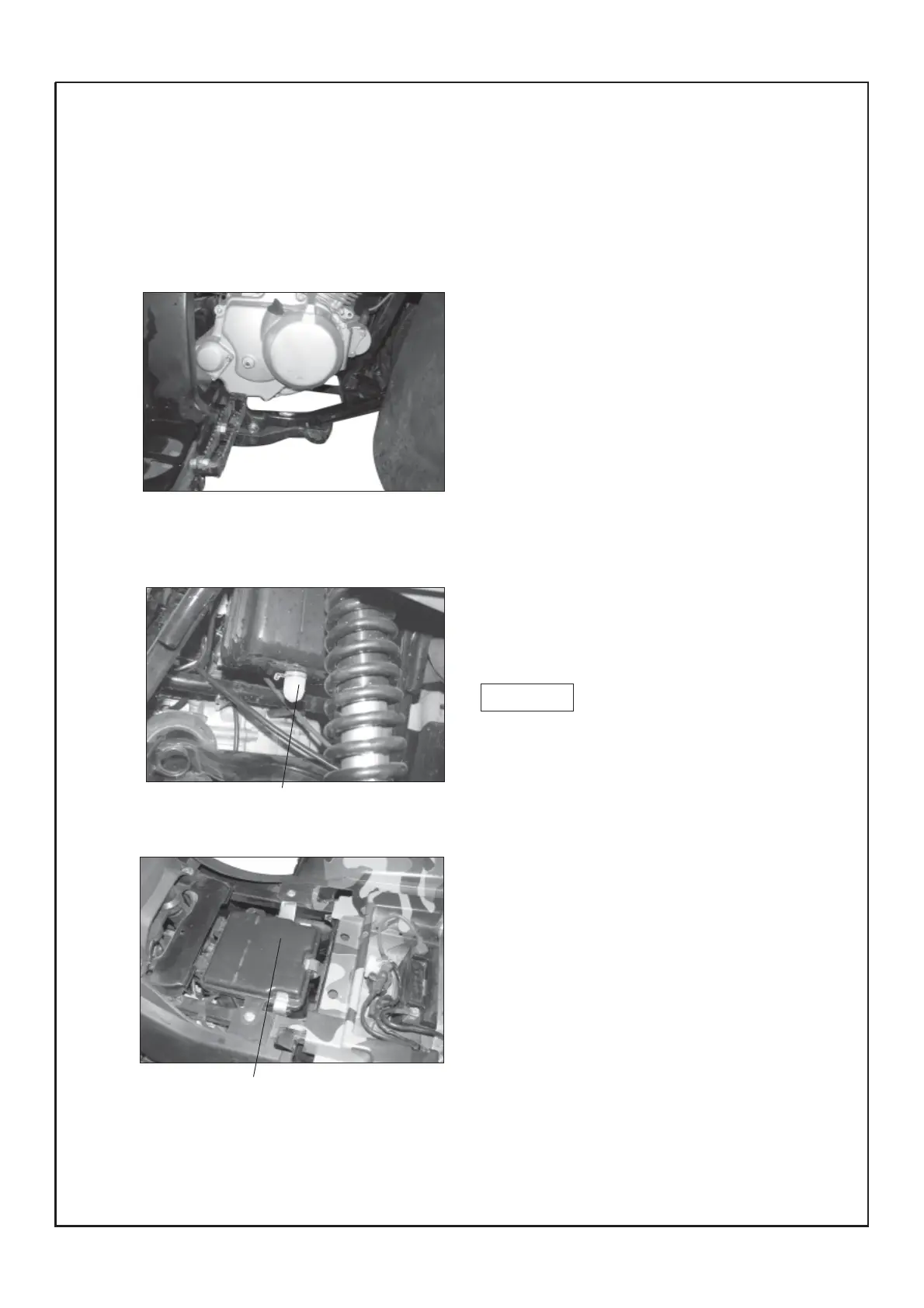

(I)Adjustment of clutch
Adjustment steps:
a.Loosen the locking nut¢Ù
b.Turn the adjusting screw rod ¢Úcounter-
clockwise slowly up to be unable to turn,then
turn1/8 clockwise, and fasten the adjusting
screw rod¢Úto this position and tighten up the
locking nut¢Ùwith the torque of N.m.
Turn the adjusting screw rod ¢Úcounterclock-
wise to decreses the clearance of clutch,Turn
the adjusting screw rod ¢Úclockwise to in-
crease the clearance of clutch.
(II)Clean of air filter
There is a inspection cup ¢Ùon the bottom of
the air filter, if the dust or water deposited in
the cap, clean the filter core and fitter box of
air filter.
1.Remove the cushion (Refer to“cushion re-
moval” of this chapter)
2.Remove the air filter box cover ¢Ù,air filter
components.
Caution
¢Ù
¢Ù
-53-
