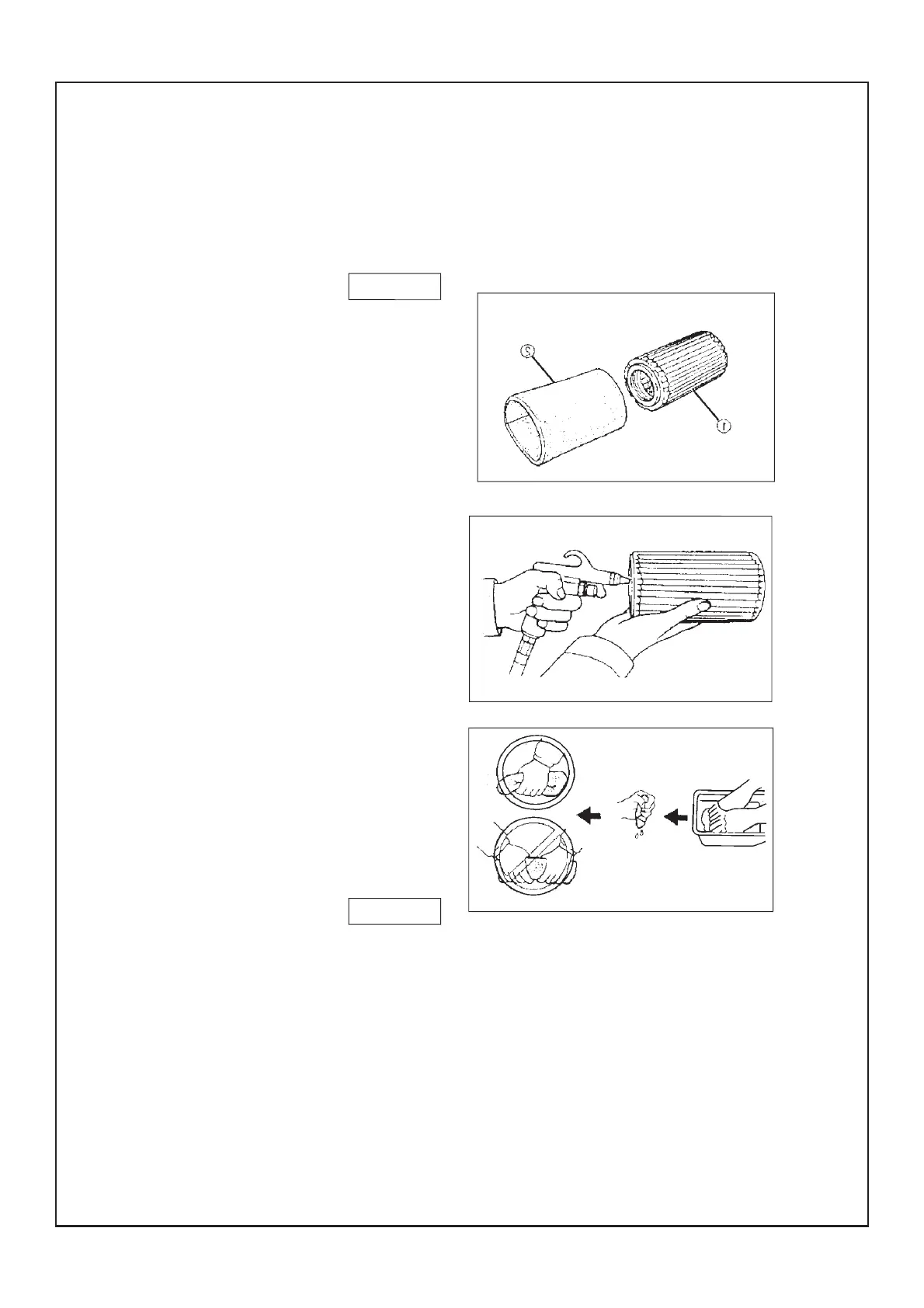

3.Removal
a.Air filter core ¢Ù
b.Foam supporting cylinder¢Ú
Never start the engine without filter, other-
wise the piston and cylinder will be overworn.
4.Inspection
a.Air filter core ¢Ù
b.Form supporting cylinder¢Ú
If damaged, replace it.
5.Clean of foam supporting cylinder. Clean off
the dust on the inner surface of the foam sup-
porting allinder with compressed air.
6.Clean of the foam filter core:
a.Clean with water completely and slightly.
b.Squeeze the surplus water of the foam and
dry it.
Note:
When squeezing the water on the foam, be
sure to be slight.
7.Installment:
a.Install the foam filter core to the foam sup-
porting cylinder to combine a air filter assy.
b. Install the air filter assy.
c.Install the air filter cover.
Make sure that the close fit surface of air fiter
is engaged with the close fit surface of air fil-
ter box, and the air leakage is not allowed.
9.Installment of cushion(refer toSection Two
“Cushion Installment”of this chapter)
