(III)Installation procedure:
The installation procedure is the riversal of
“Disassembly ”.But pay attention to following
points:

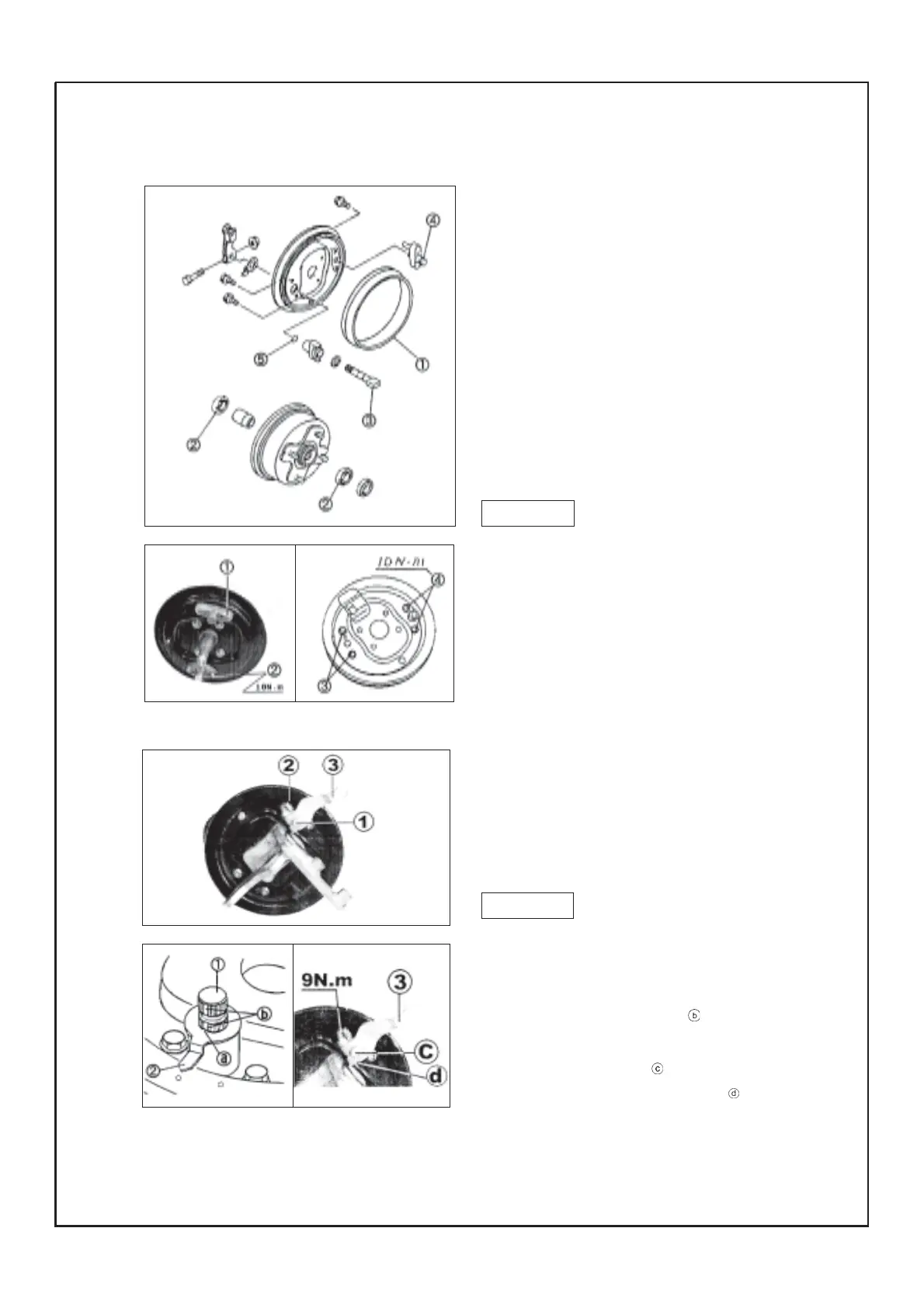

1.Lubrication:as shown in figure:
¢ÙDust-proof seal
¢ÚBearing
¢ÛCam shaft
¢ÜRotating pin seat
¢Ý“O”sealing ring
Attached:use lithum base grease
When installing the cam shaft and rotating pin
seat, should apply a little grease firstly. After
installation, wipe off the surplus grease.
2.Install
¢ÙRotating pin seat
¢ÚCam shaft seat
3.Install:
¢ÙBrake cam shaft
¢ÚIndicating sheet
¢ÛBrake cam arm
When installing the friction indicating sheet ¢Ú
onto the brake cam shaft ¢Ù, should make the
convext part (@)of friction indicating sheet cor-
responding with concave part ( )of brake cam
shaft.
Make the punching mark on brake cam shaft
¢Ùcorresponding with punching mark of brake
cam arm.
Warning
Caution
-81-
