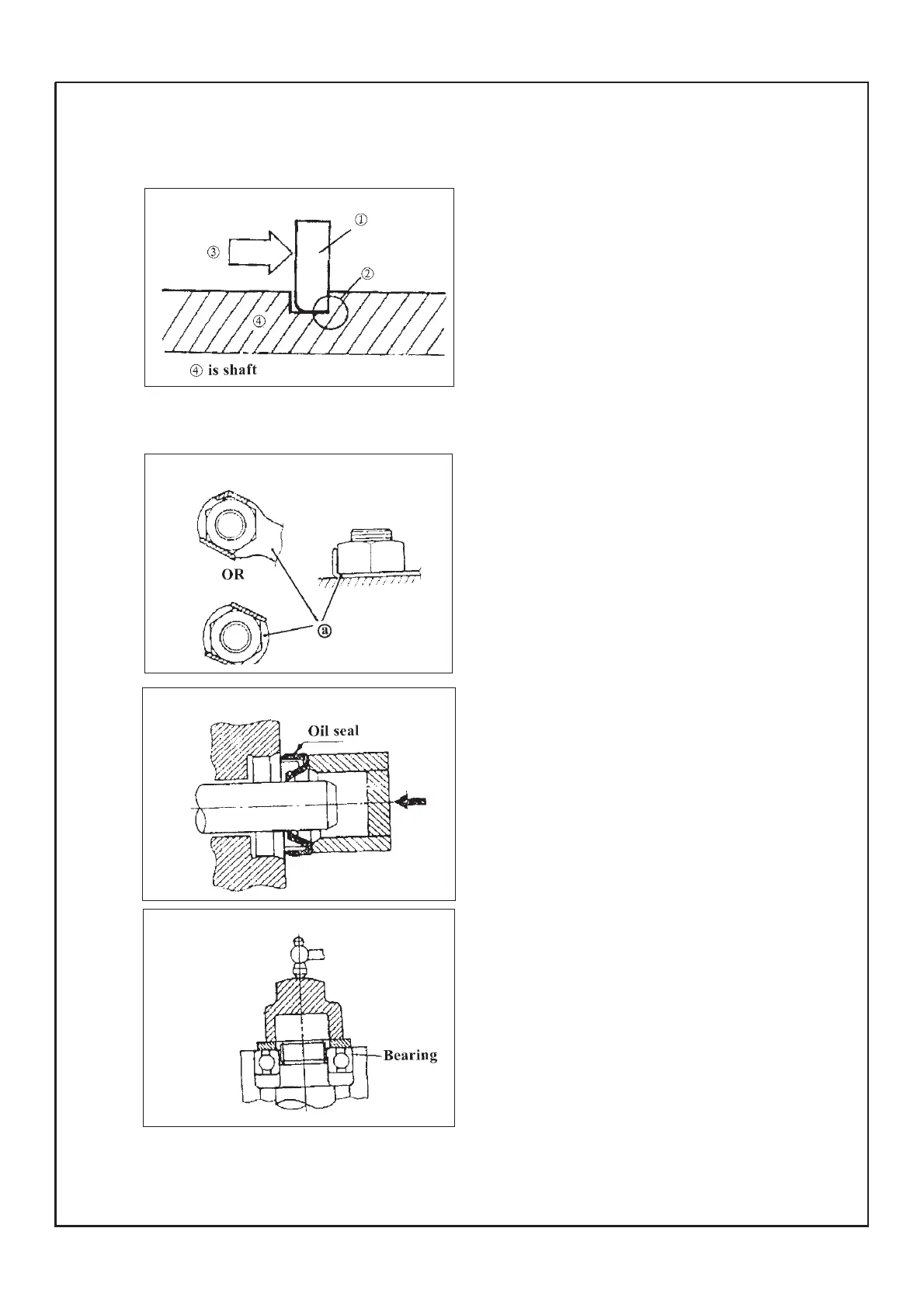

4. Clip
4.1Before assembling, be sure to check all
the clips carefully.Use a new one after remov-
ing the clip of piston pin. When mounting clip
ring ¢Ùmake the sharp face ¢Úon the opposite
position of impacted face ¢Ûof clip.(see left
fig)
5.Locking washer /shim and location pin
5.1When reassembling after disassembling.
be sure to replace all the locking washer /shim
and location pin @ After bolt or nut is fixed on
the locking position. be sure to bend and fix both
ends of locking shim along head of bolt or di-
rection of nut.
6.Bearing and oil seal
6.1 When assembling bearing and oil seal
put the mark or specification of manufacturer
outside, When assembling oil seal apply a thin
film of lithium-base grease on the lip of oil seal.
Caution:
Don’t blow to dry the inside of bearing with
compressed air, this would damage the surface
of bearing.
-5-
