b. If joint is slack, bend the plug pin
upward, then connect with connector plug(see
fig7.5)
7.6 Before mounting new fuse, check if the
load of fuse of components is right, especially
for the portion being burned broken regularly,
then mount the fuse having proper current value.
7.7Wire connector have two kinds, one is
single-head connector, another is multi -head
one.
Before connecting single-head connector ,
check if there is broken on the housing of joints,
the joint is fixed and if there is a broken phe-
nomenon on it. When inserting the joint, it should
be fixed, then put in plastic coating after
inserting.
In general, multi-head connector is plastic
one, and locking catch is designed. When disas-
sembling the connector, first open locking catch
when connecting again, first check if all the joint
is in good condition, if there is bent or twisted
on them. After connecting, align the locking
catch and lock them.
8. Use torque spanner to tighten screw and
nut, and as per specified torque to tighten them.
It should be tightened in steps from big ones to
small ones, from inside to outside and along the
direction of diagonal line to intersect. A s shown

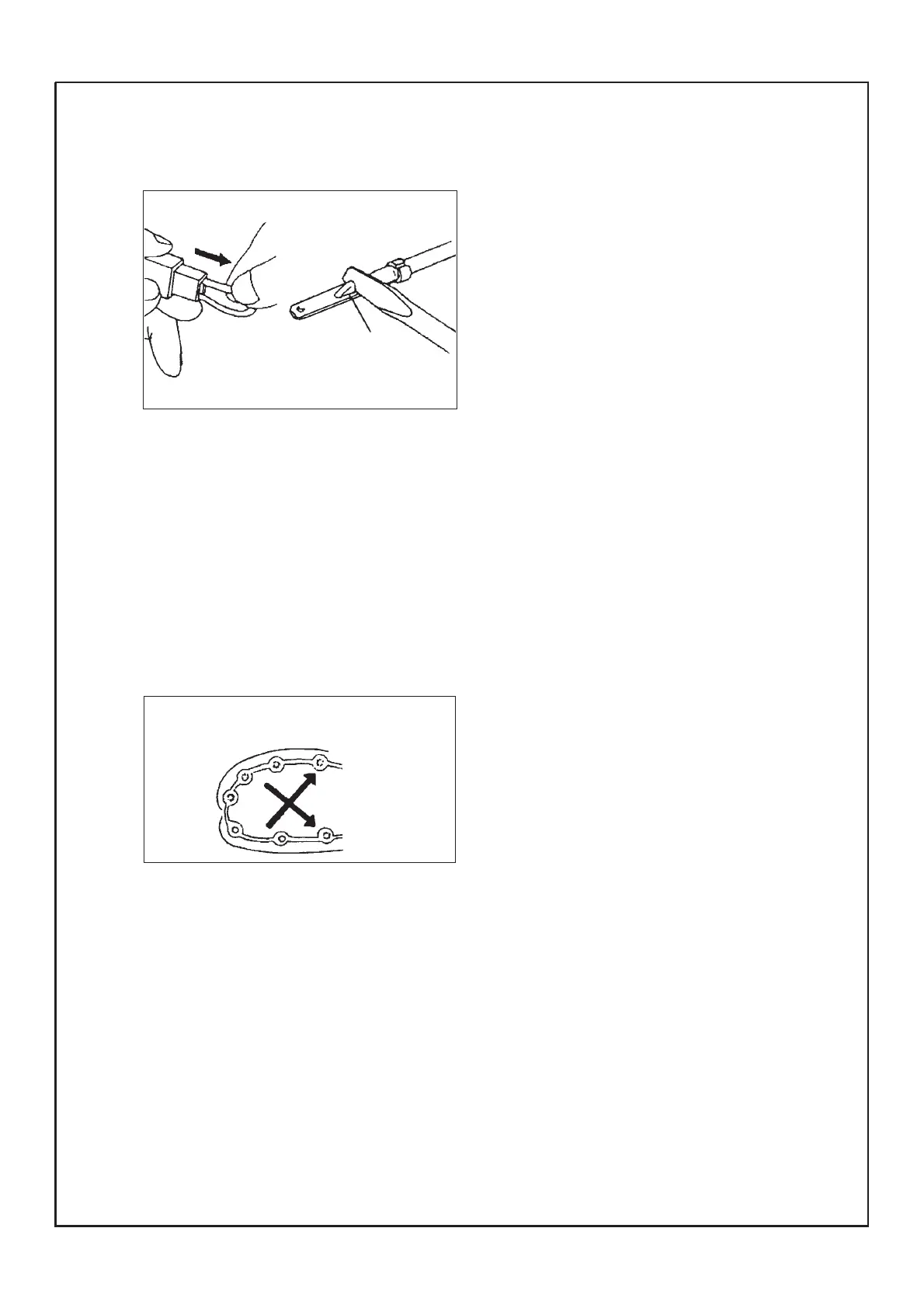

in fig.8.1.
Fig.7.5
Fig.8.1Tightening method of screw and nut.
-7-
Plug pin
According to
intersecting
