ATV 250 - (II) Disassembly of Engine

2)Remove
.Connecting plate of sharting motor¢Ú
.Starting motor¢Û

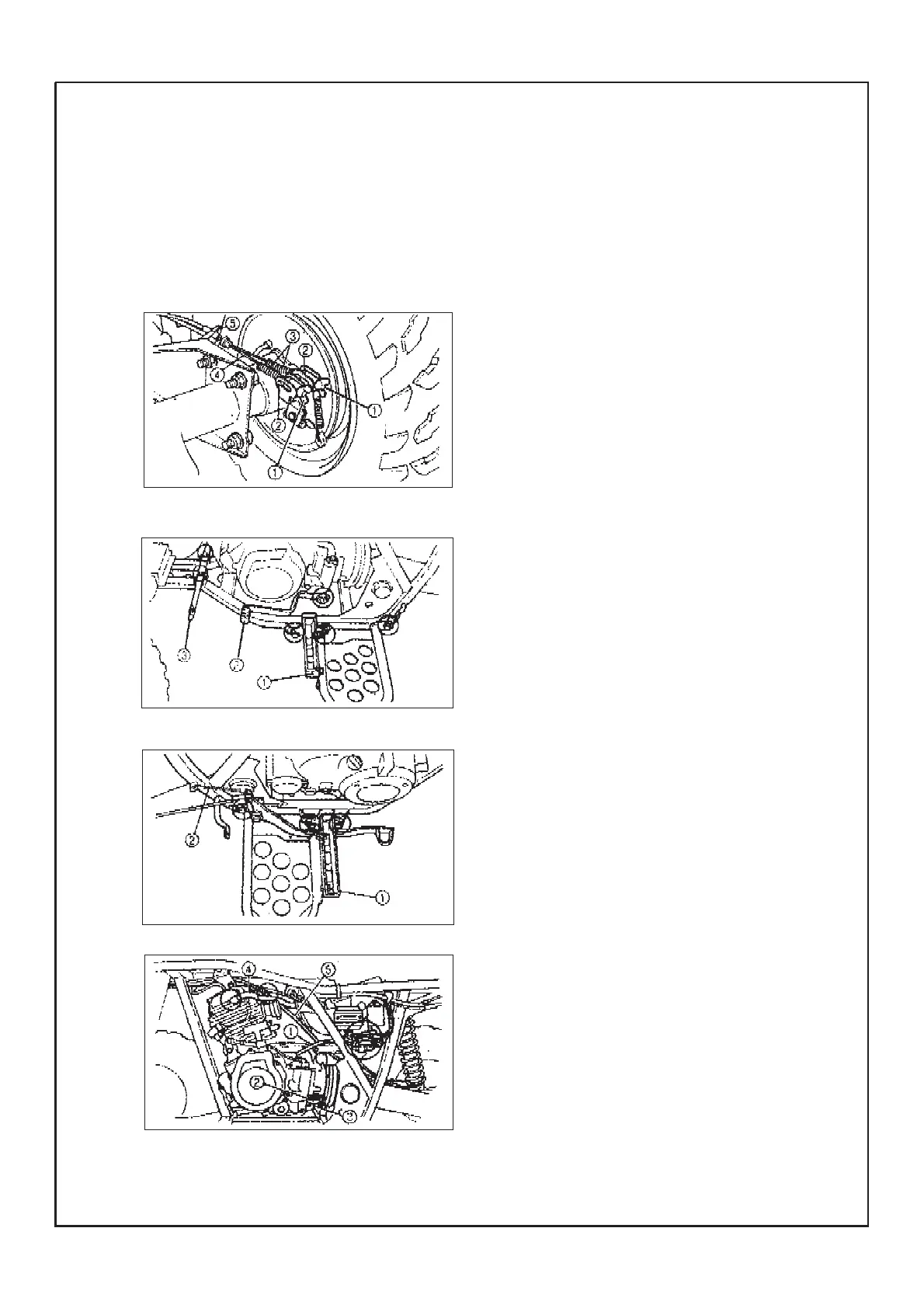

6.Rear brake cable and footrest
1)Remove
.Adjusting nut ¢Ù
.Pin ¢Ú
.Spring¢Û
.Rear brake cable and tension rod¢Ü (Remove
from rear brake arm)
2)Remove
.Left footrest ¢Ù
.Shift pedal¢Ú
.Supporting rod of front fender¢Û
3.Remove
.Right footrest ¢Ù
.Spring¢Ú
7.Wire and hose
1)Remove
.Spark plug cap
.CDI magneto wire ¢Ù
.Reverse switch wire ¢Ú
.Neutral switch ¢Û
.Air pipe¢Ü
-143-
