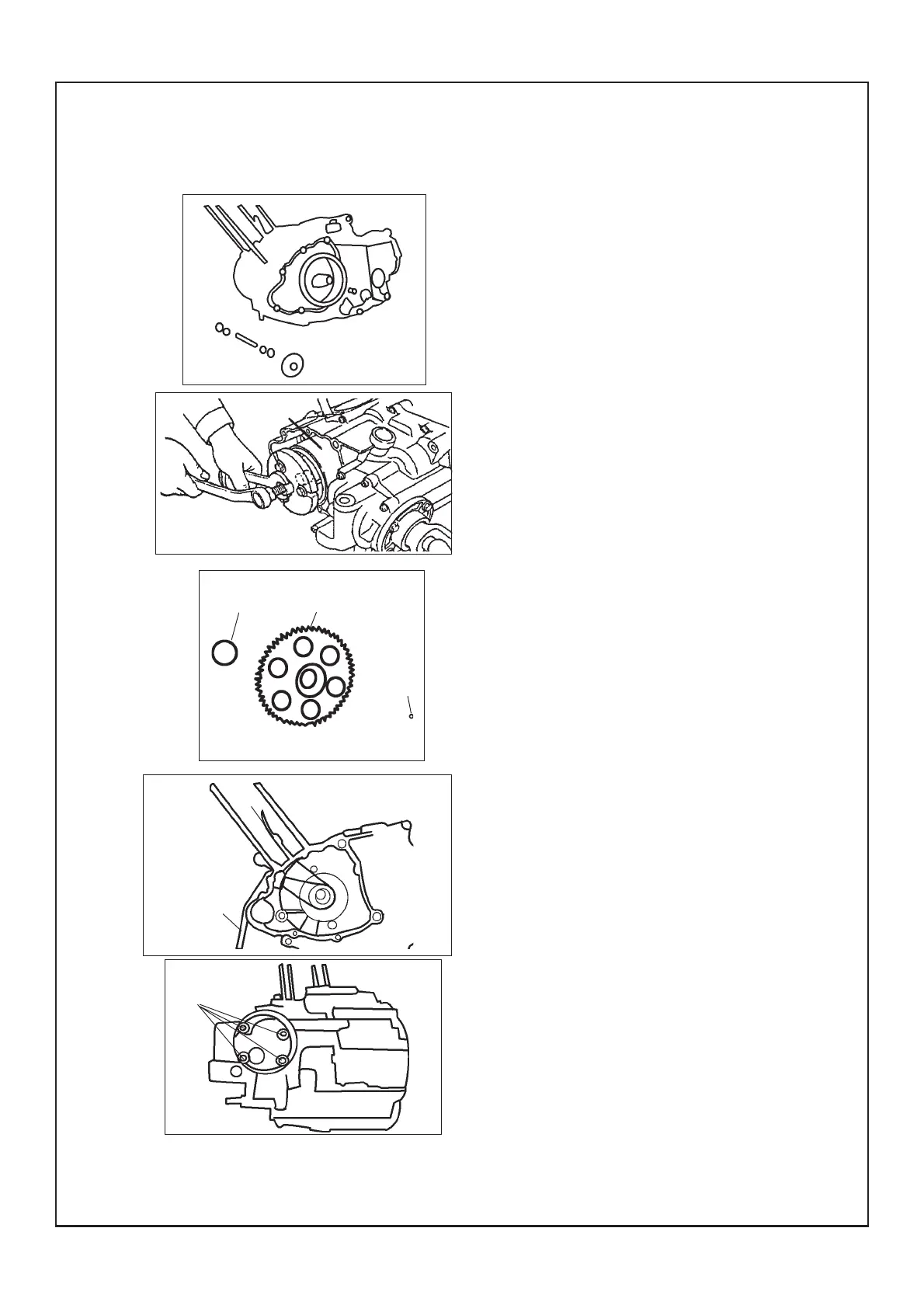

13.Remove
.Gasket of left crankcase cover ¢Ù
.Location pin¢Ú
.Intermediate gear shaft ¢Û
.Washer ¢Ü
.Duplex intermediate gear(starting motor)
14.Remove
.Magneto ¢Ù
Caution:
Disassemble the magneto rotator with special
tool
15.Remove
.Semicircle key ¢Ù
.Electric starting gear assy ¢Ú
.Washer ¢Û
16.Remove
.Upper guide plate¢Ù(air intake side)
.Timing chain¢Ú
17.Remove
.Screw ¢Ù(rear cover)
¢Ù
¢Ú
¢Ù
¢Û ¢Ú
¢Ù
-148-
